1.6L Equipped Models

1.6L Equipped Models utilize a conventional flywheel assembly, which is a solid rotating mass fastened to the rear of the crankshaft (Fig 1 ). The flywheel also incorporates an integral starter ring gear.

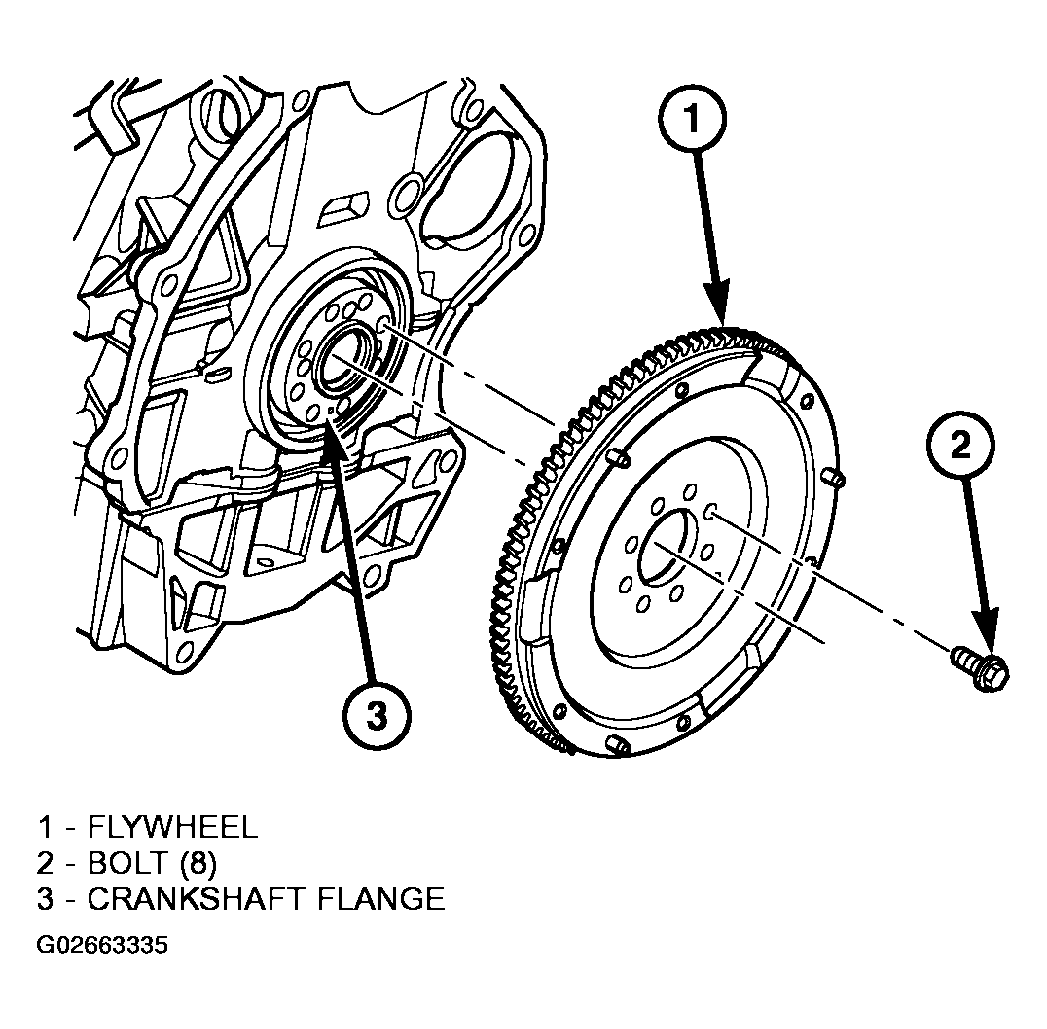

Fig 1: Identifying Flywheel-to-Crankshaft
G02663335Courtesy of DAIMLERCHRYSLER CORP.
