Clutch Interlock/UPSTOP Switch: Description

The clutch interlock/upstop switch is an assembly consisting of two switches: an engine starter inhibit switch (interlock) and a clutch pedal upstop switch (Fig 1 ). The switch assembly is located in the clutch/brake pedal bracket assembly (Fig 2 ), each switch being fastened by four plastic wing tabs.

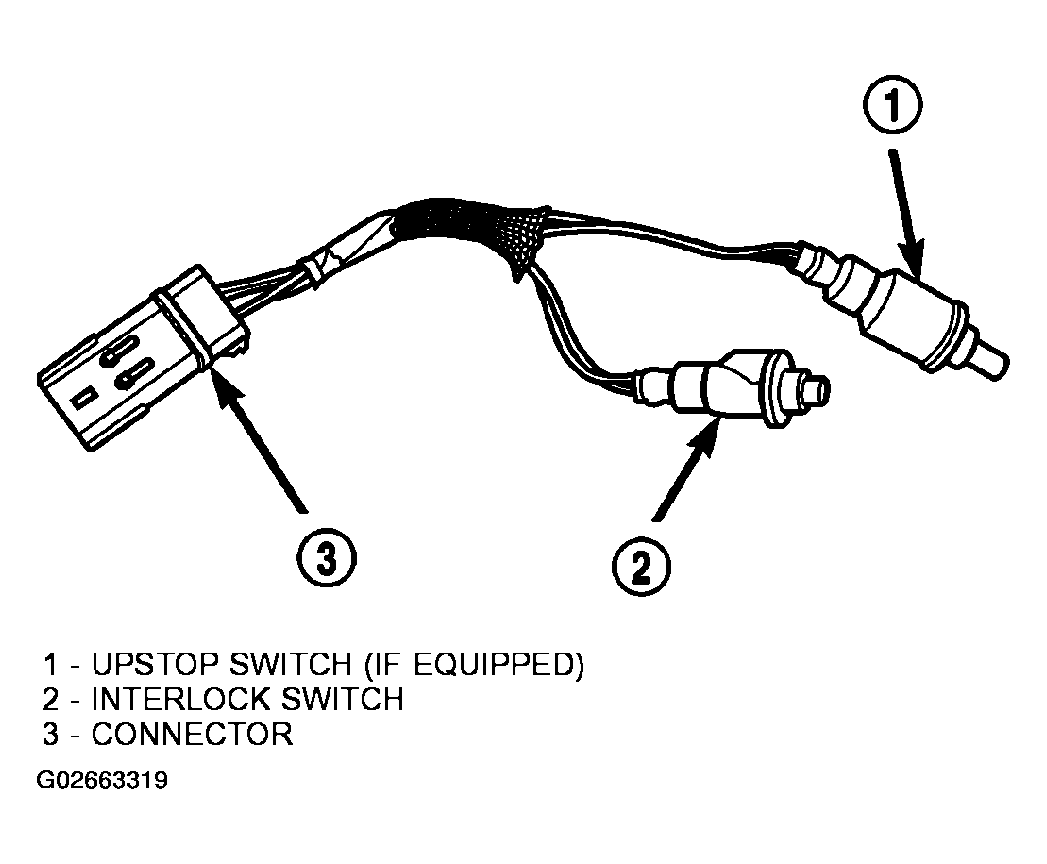

Fig 1: Identifying Clutch Interlock/Upstop Switch

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Clutch/Brake Pedal Bracket

Courtesy of DAIMLERCHRYSLER CORP.
