Power Distribution Center

NOTE: Power distribution center is located on driver's side of engine compartment, just behind battery. See Fig 1 .

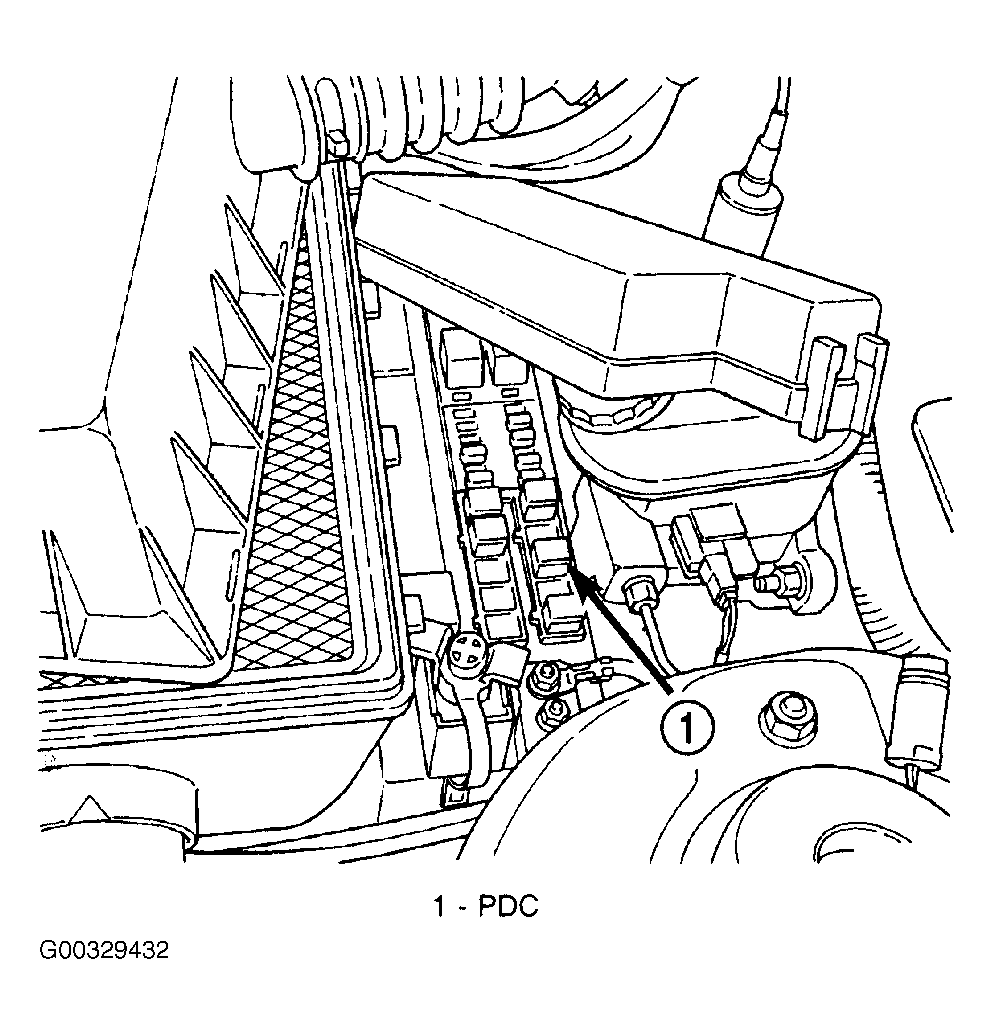

Fig 1: Locating Power Distribution Center

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Power Distribution Center Components

Courtesy of CHRYSLER CORP.

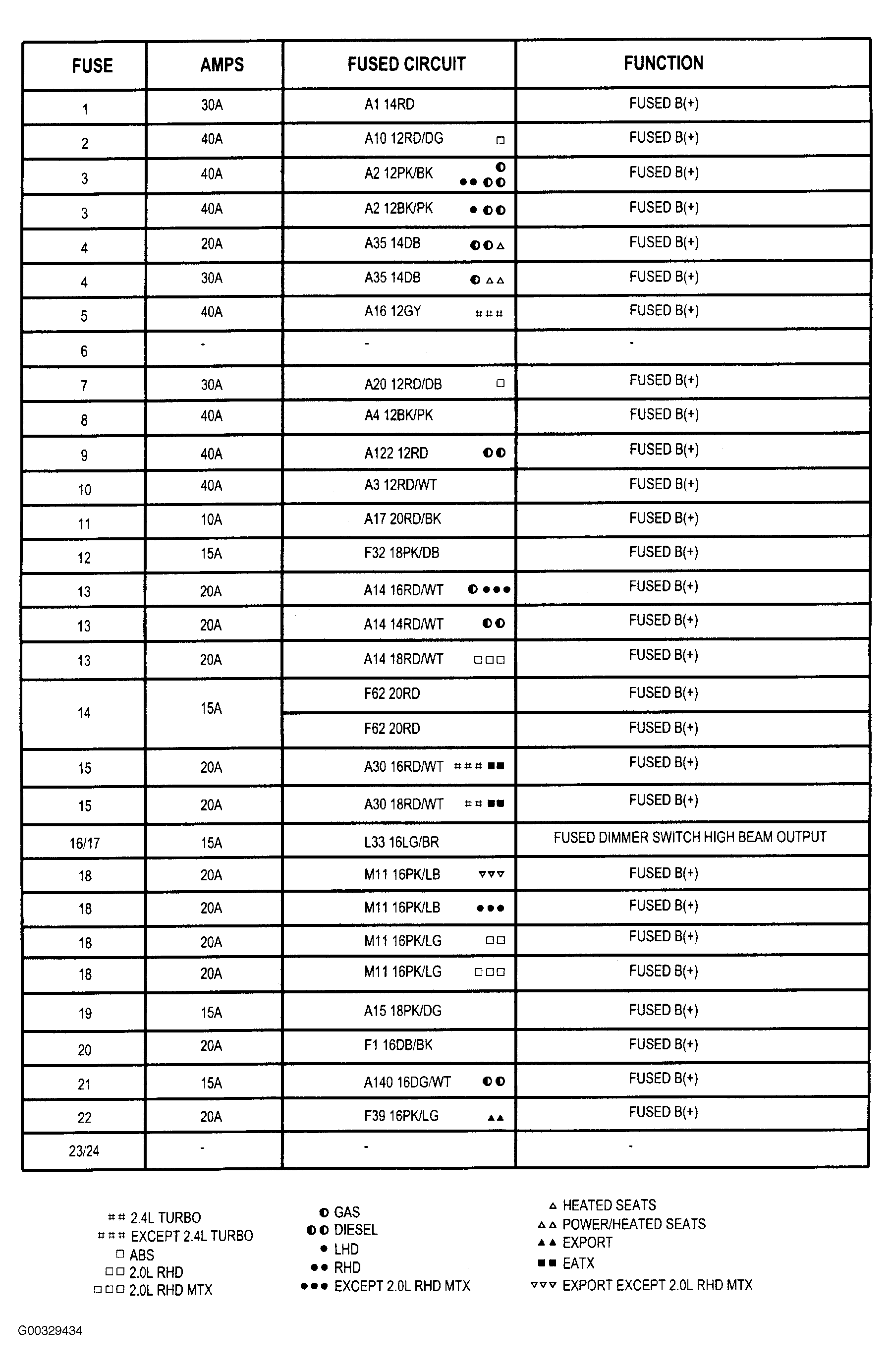

Fig 3: Power Distribution Center Legend

Courtesy of CHRYSLER CORP.
