Fuse Block

NOTE: Fuse block is located at left outboard end of instrument panel cover. See Fig 1 .

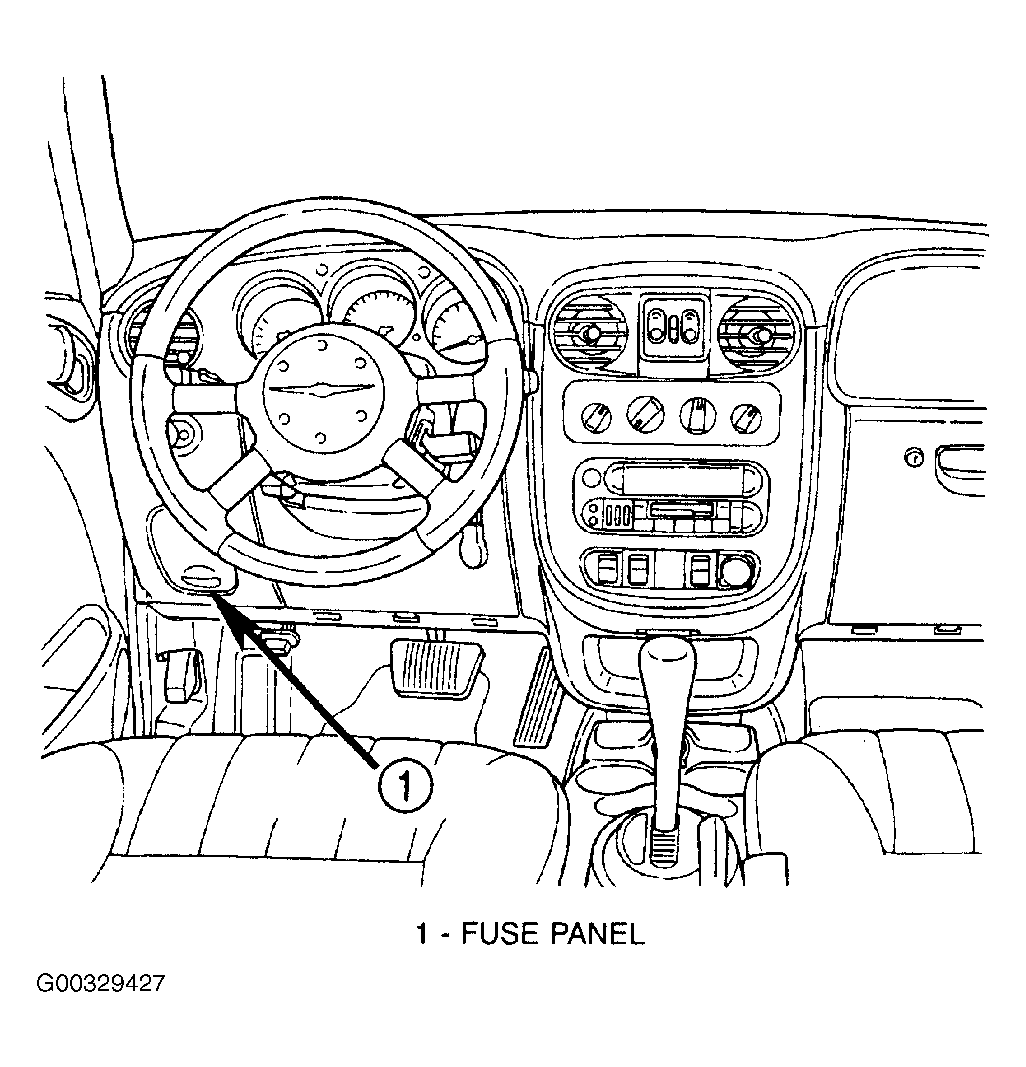

Fig 1: Locating Fuse Block

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Fuse Block Components

Courtesy of CHRYSLER CORP.

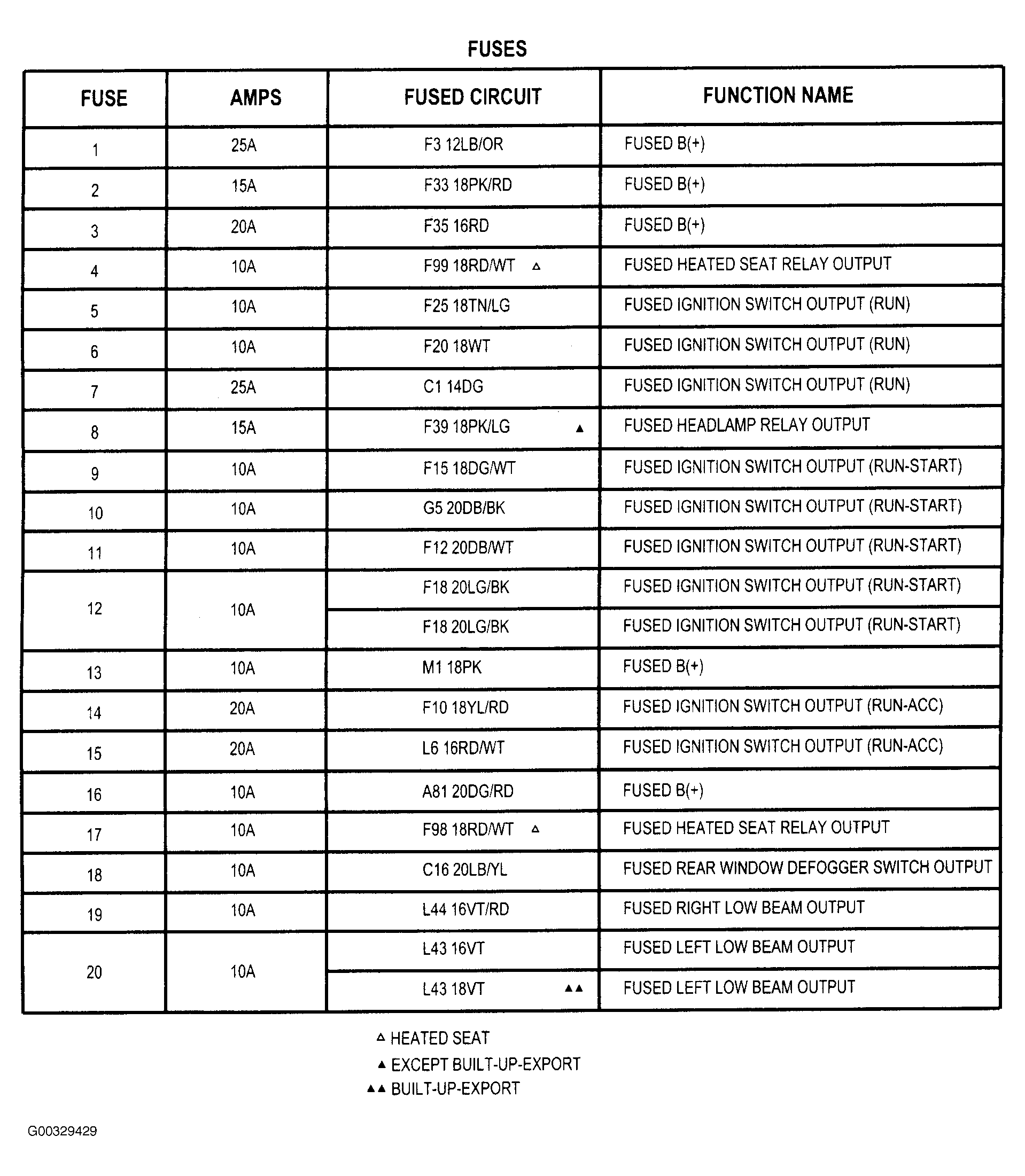

Fig 3: Fuse Block Legend

Courtesy of CHRYSLER CORP.
