Identifying Traction Control Switch - White 4 Way Connector End View
Identifying Traction Control Switch - White 4 Way Connector End View

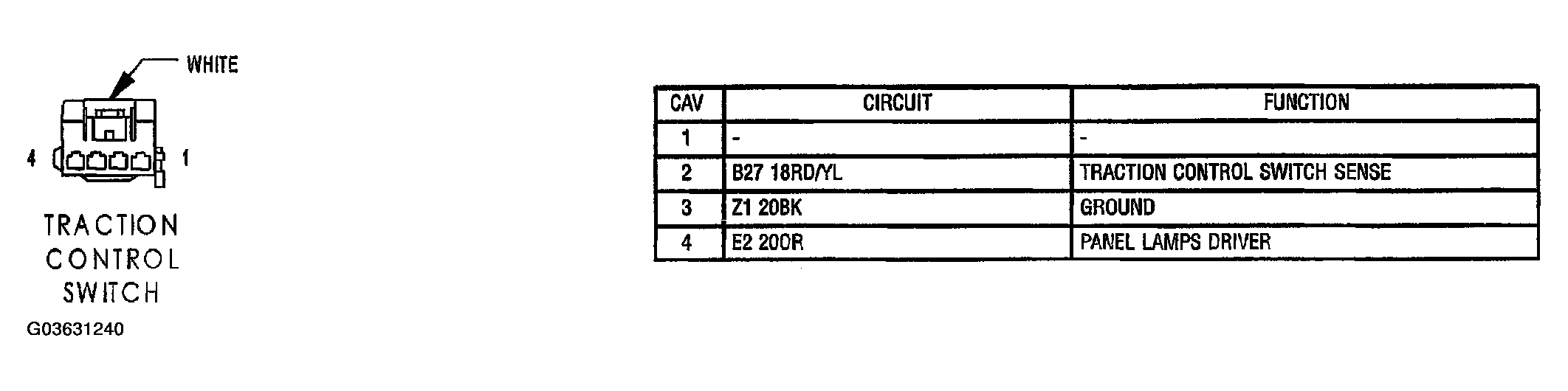

Fig 1: Identifying Traction Control Switch - White 4 Way Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
