Power Mirror Switch - LHD: Removal
- Disconnect and isolate the battery negative cable.
- Remove the left lower instrument panel bezel. Pull top rearward, lower to floor and with a quick pulling motion remove off instrument panel.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove two screws to the left instrument panel end cover.
- Pull the left end cover rearward to unsnap. Maneuver it out from underneath the left A-pillar trim and top cover. Removal of these components is not necessary.
- Disconnect the power mirror switch wiring connector and remove end cover from vehicle.

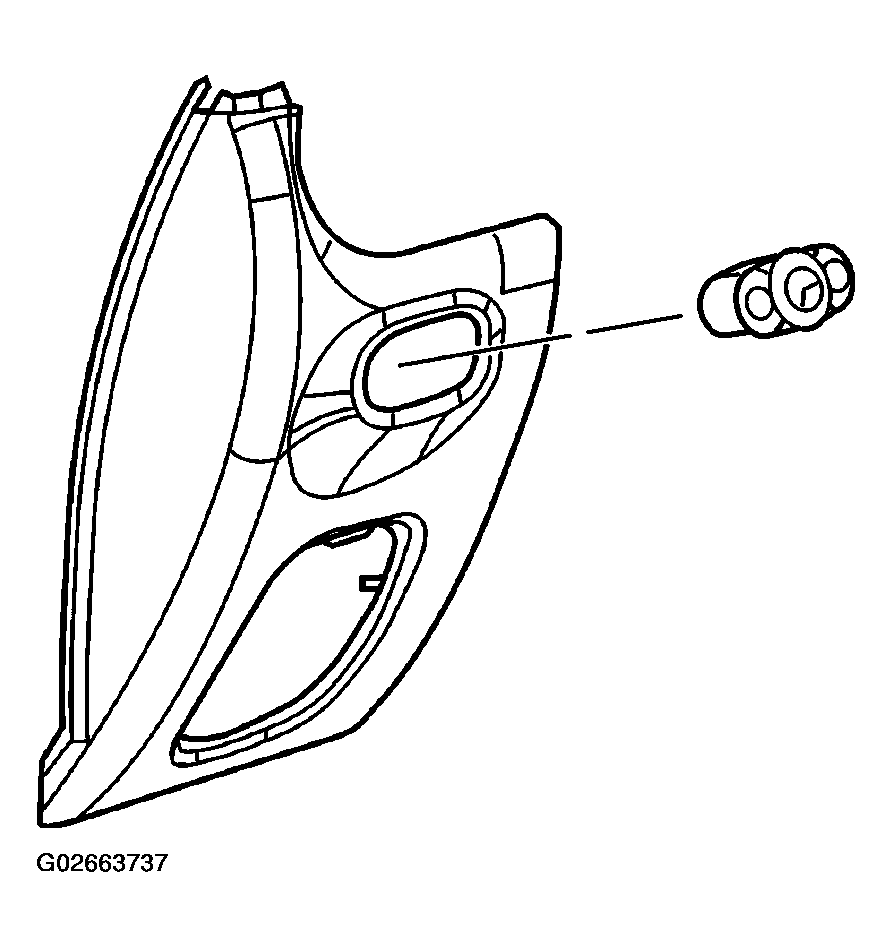

- With the left end cover on the bench, gently pry in on the tabs (4) of the mirror switch and push through the front of the cover and remove (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
