Radiator Closure Panel: Removal

  1. Open hood.
  2. Mark bolt locations on the upper radiator closure panel (Fig. Fig 1 ).

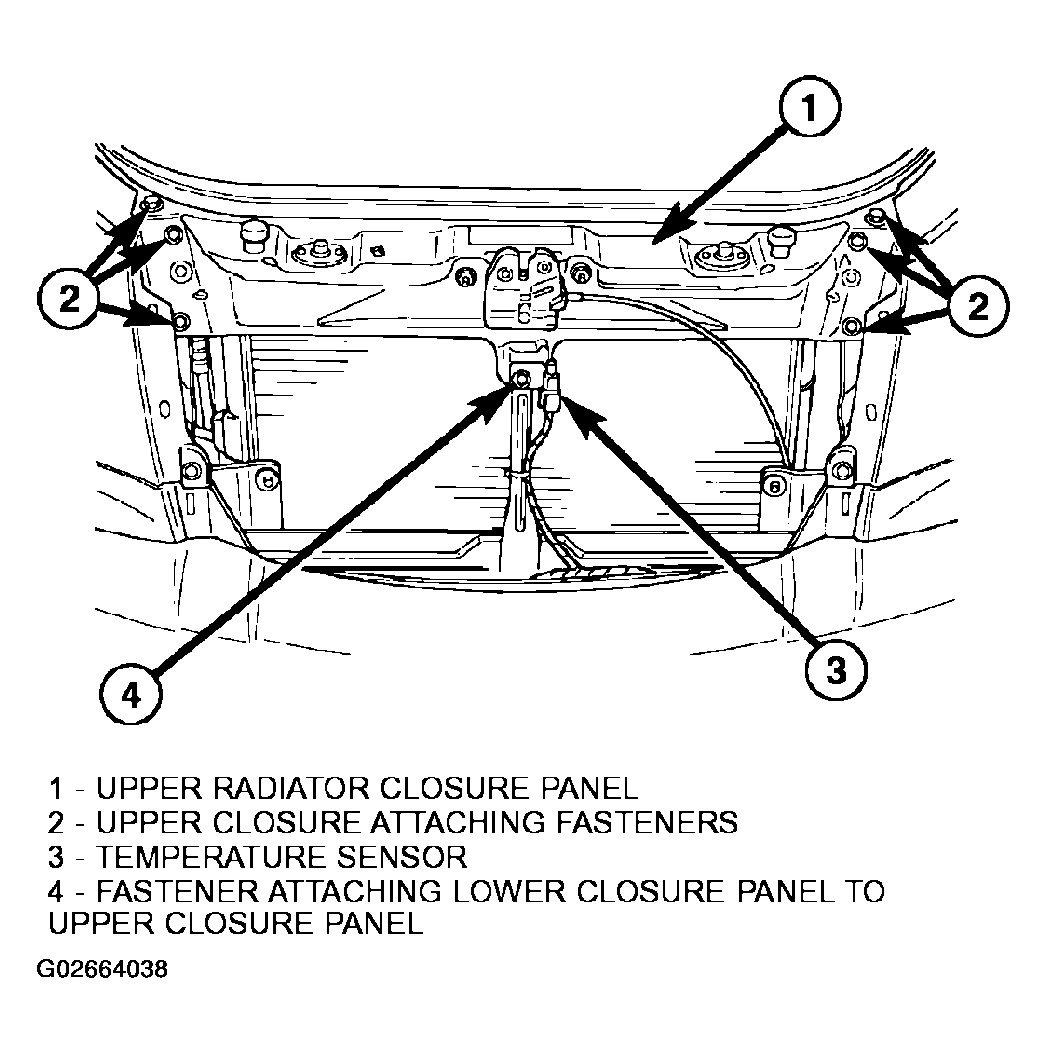

    Fig 1: Identifying Radiator Closure Panel
    G02664038Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove fasteners attaching radiator closure panel to fenders.
  4. Move temperature sensor as necessary.
  5. Remove bolt attaching lower radiator closure panel to the upper radiator closure panel.
  6. For replacement of upper radiator closure panel, remove hood latch, and any other hardware.
