Exterior/Interior Trim: Exterior: Grille: Installation

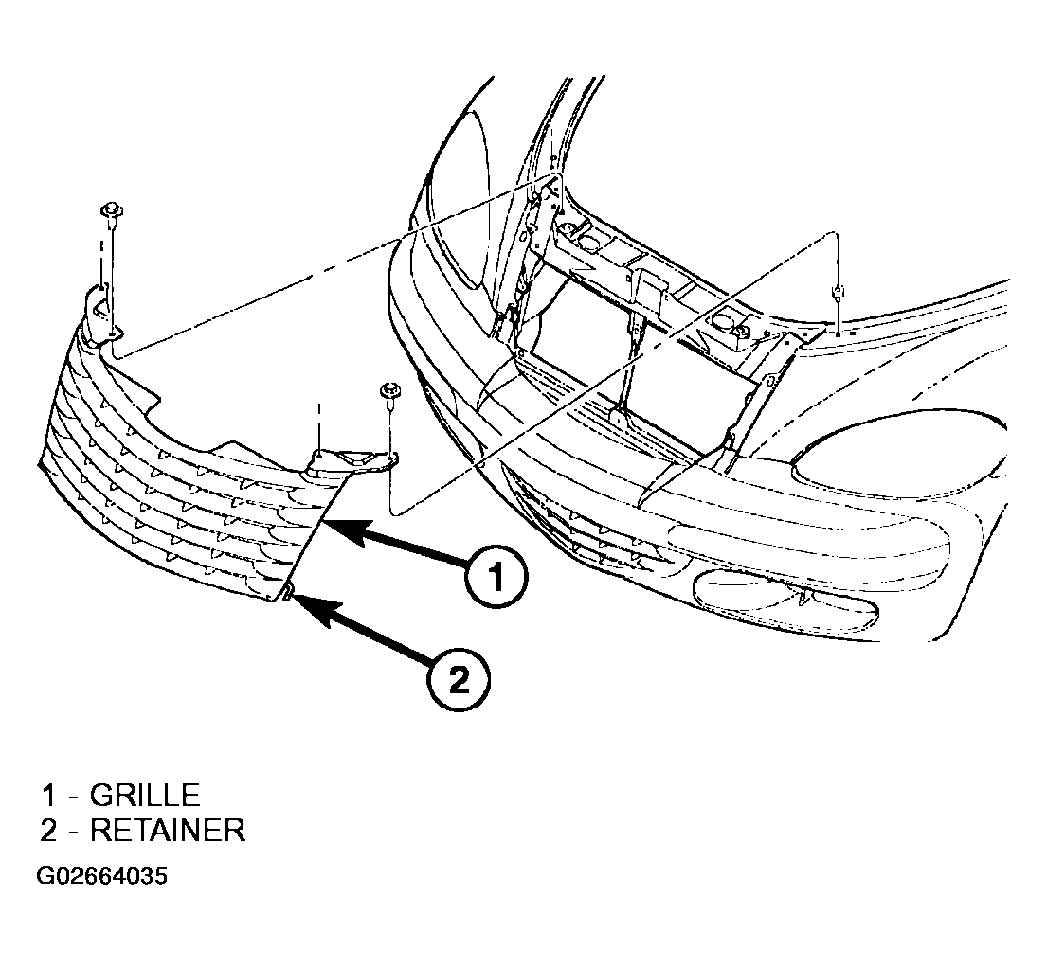

- Place grille into position on vehicle, engage lower hook into fascia first, then engage middle hook to fender, then engage top hook. (Fig. Figure ).
- Install screw attaching grille to radiator closure panel.
- Close hood.
