Front Wheelhouse Splash Shields: Installation

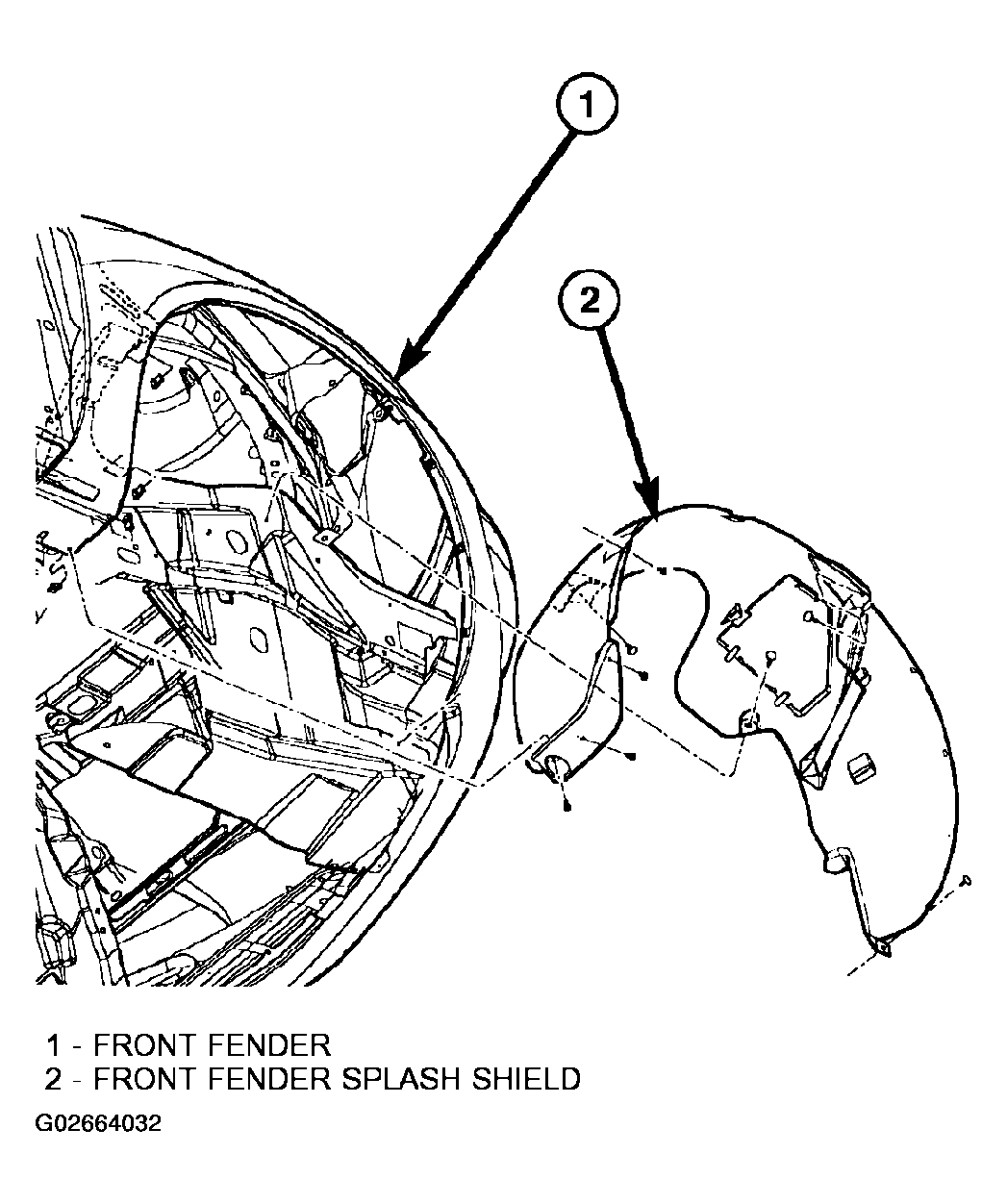

  1. Place splash shield in position on vehicle (Fig. Figure ).
  2. Install screws attaching wheelhouse splash shield to front fender.
  3. Install push in fasteners attaching splash shield to frame rail rearward of suspension.
  4. Install push in fasteners attaching splash shield to frame rail forward of suspension.
  5. Install front wheel.
  6. Lower vehicle.
