Electronic Control Module: Installation

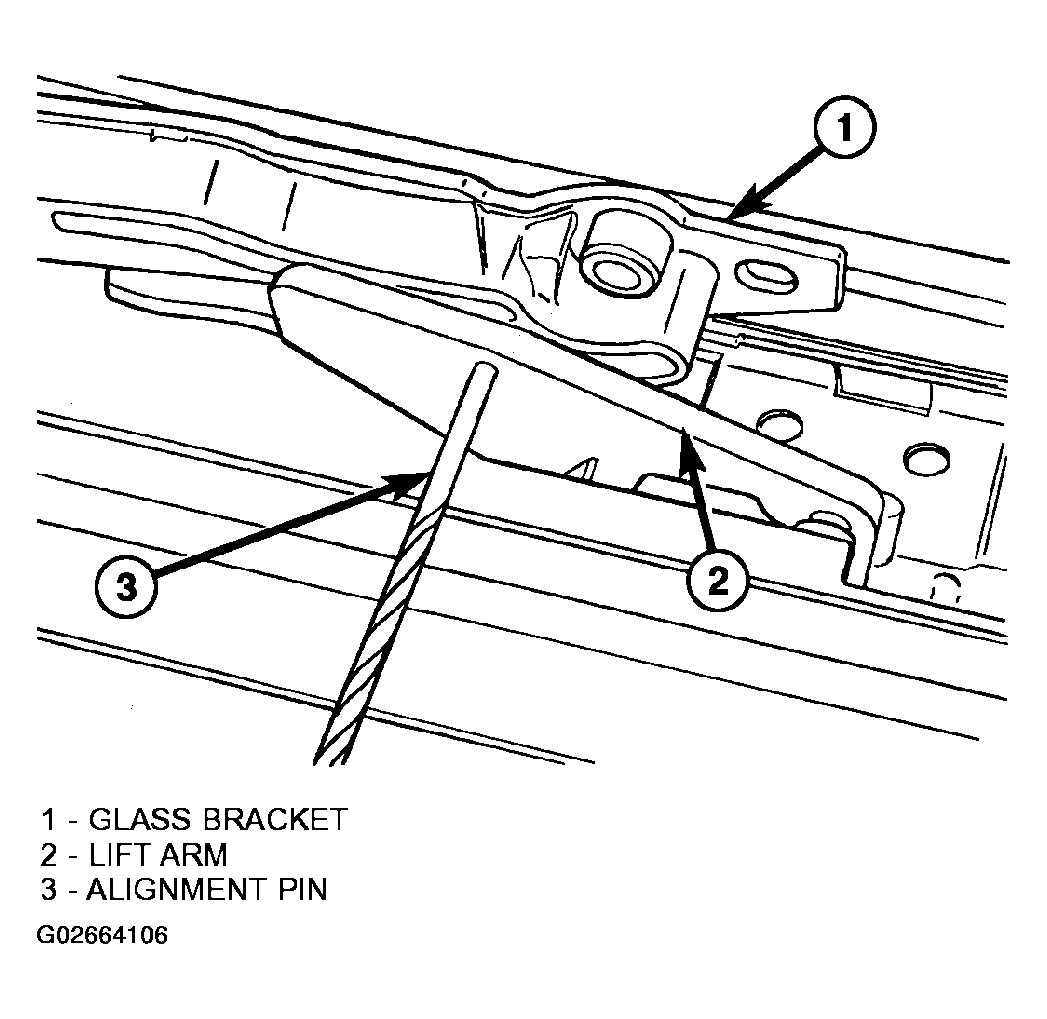

- Check glass assembly position. Adjust to full closed position. Insert pin into holes in lift arm assembly to check position (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Check electronics module and ensure it's in the full closed position.
- Set new electronic module in position on top side of motor mounting bracket engaging drive cables with pinion gear in electronics module.
- Install one screw to attach electronics module to motor bracket. Tighten screw to 3 N.m (27 in. lbs.) torque.
- Install motor assembly to motor bracket and electronics module with three screws. Tighten screw to 3 N.m (27 in. lbs.) torque.
- Connect electrical connectors to module assembly wire harness. Secure any loose wires.
- Install sunroof module assembly (Refer to SUNROOF MODULE ASSEMBLY
).
