Identifying Multifunction Switch - Gray 20 Way Connector End View

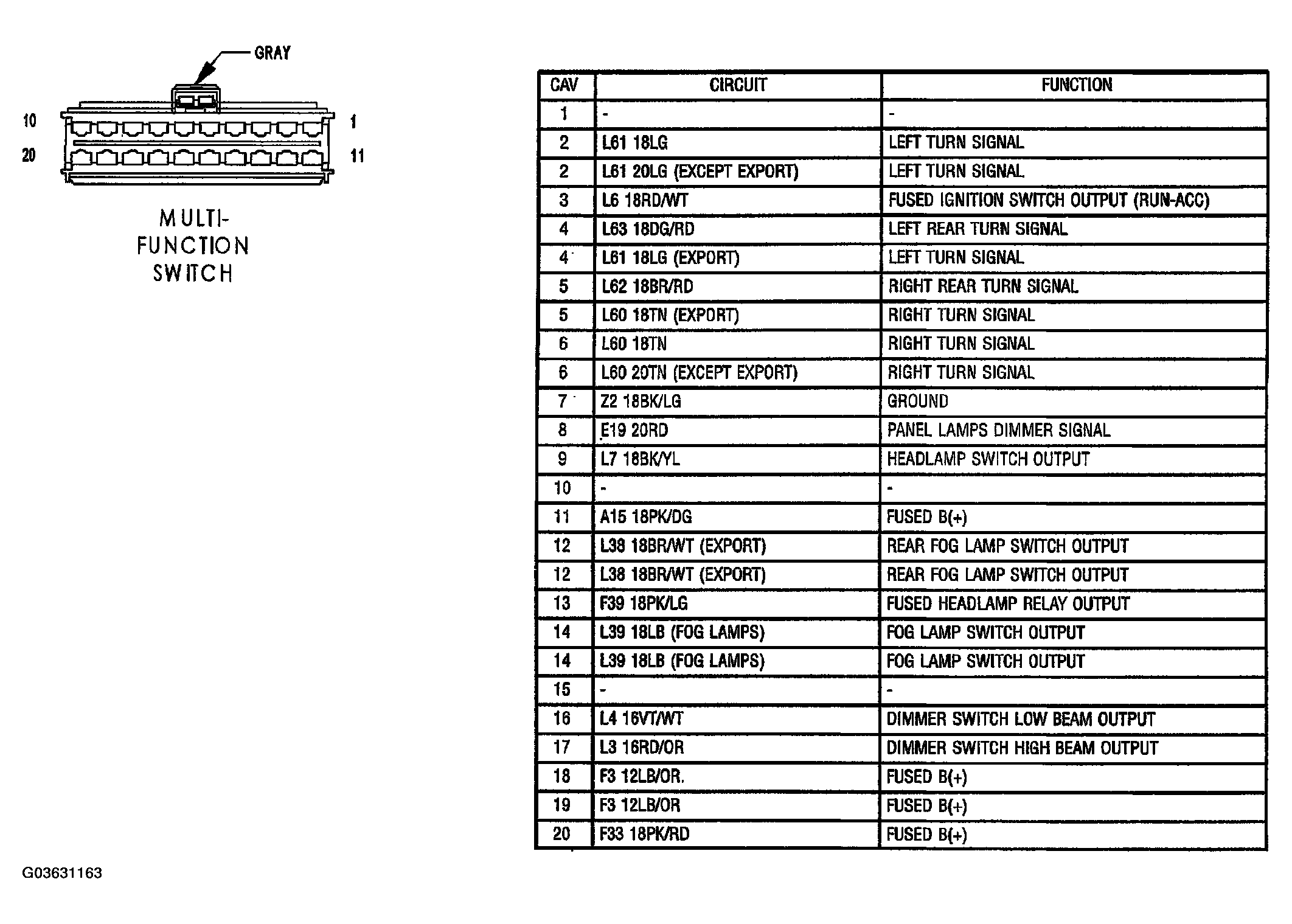

Fig 1: Identifying Multifunction Switch - Gray 20 Way Connector End View

G03631163

Courtesy of DAIMLERCHRYSLER CORP.
