Fuel Pressure Regulator: Installation
WARNING: This page is about a different car, the 2002 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

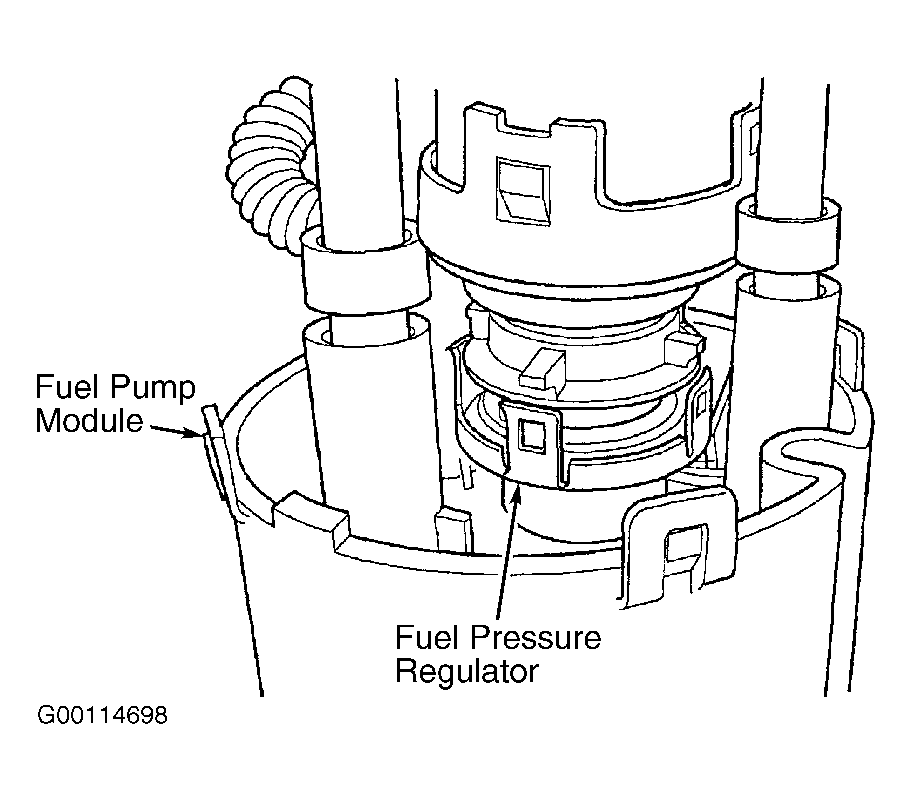

Lightly lubricate the "O" ring with clean engine and place into opening in pump module. Push regulator into opening in pump module. Push regulator retainer over tabs on housing. Install fuel pump module. See FUEL PUMP MODULE .
