Throttle Position Sensor Harness Connector End View (Turbo)

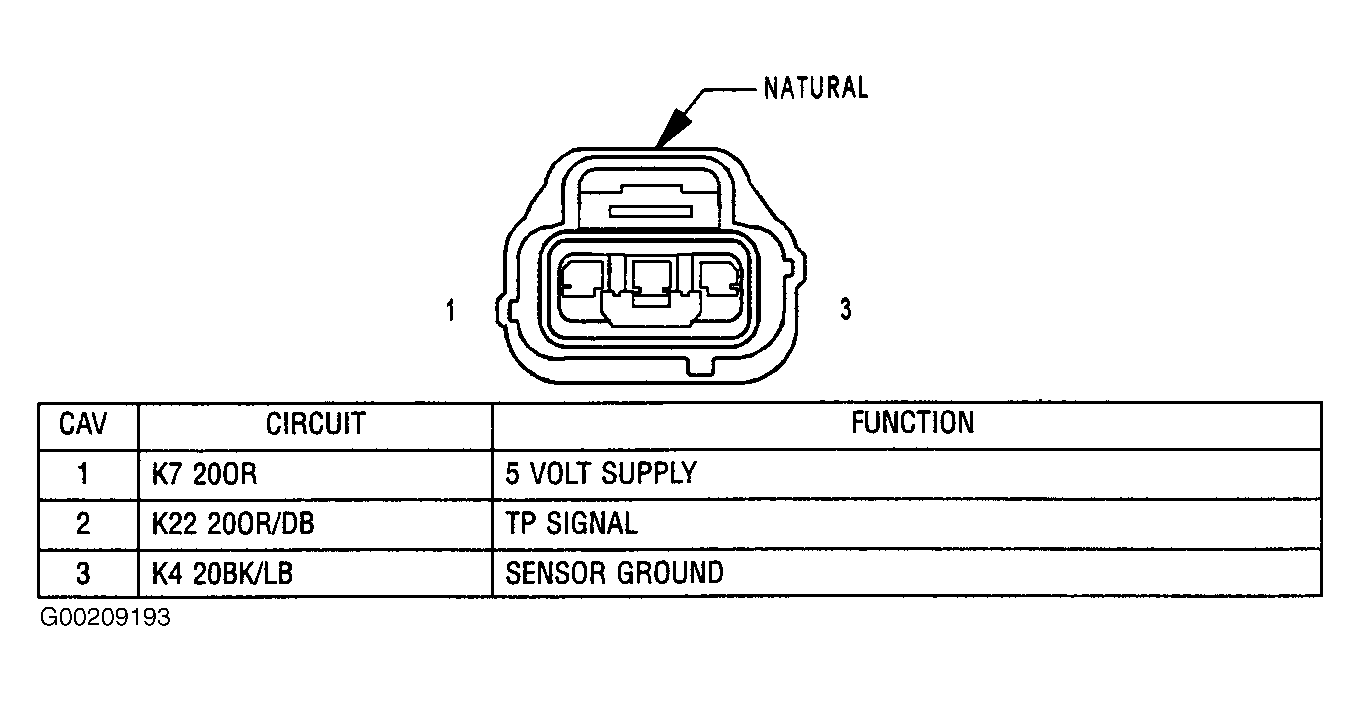

Fig 1: Identifying Throttle Position Sensor Harness Connector Terminals (Turbo)

G00209193

Courtesy of CHRYSLER CORP.
