Instrument Panel Center Bezel: Installation

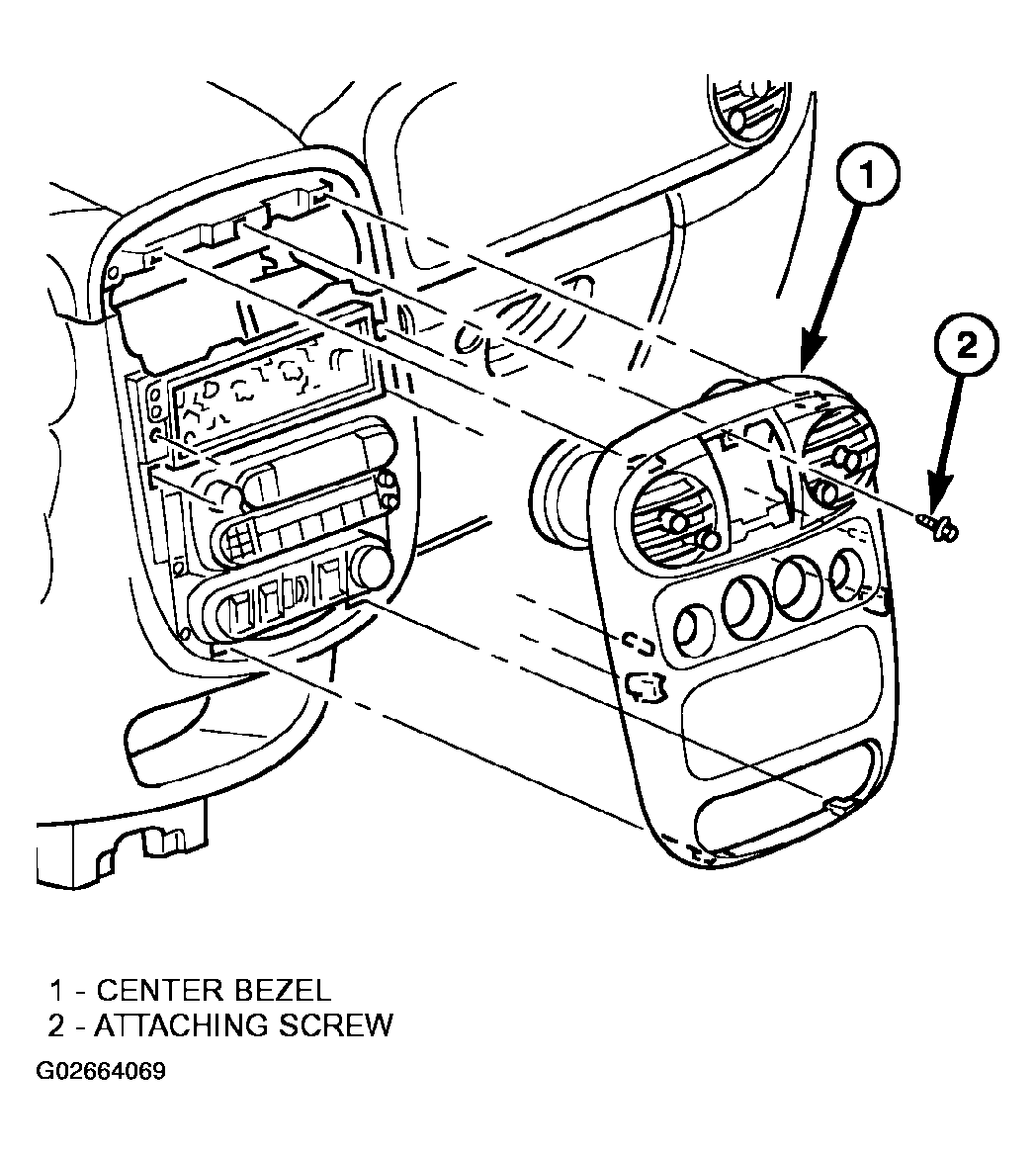

  1. Place center bezel over opening. Align the retaining clips and press firmly into place (Figure ).
  2. Install one center bezel retaining screw.

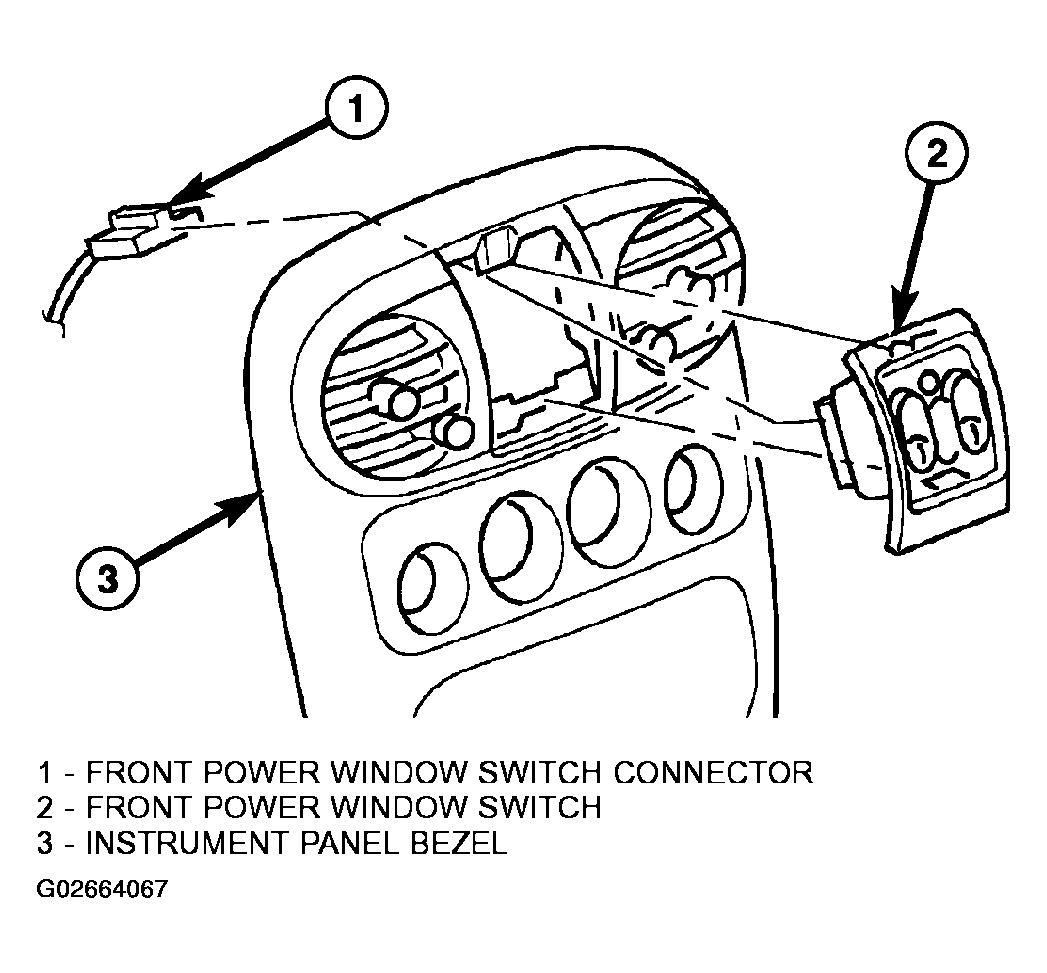

  3. Reconnect the front power window switch connector and reinstall into center bezel opening (Figure ).
  4. Install the four HVAC control knobs (Figure ).
  5. Reconnect the battery negative cable (Figure ).
  6. Close hood.
  7. Verify operation of vehicle and systems.
