Accessory Switch Bezel: Removal

NOTE: The accessory switches are serviced separately, but the cigar lighter/power outlet is not (Fig 1 ).

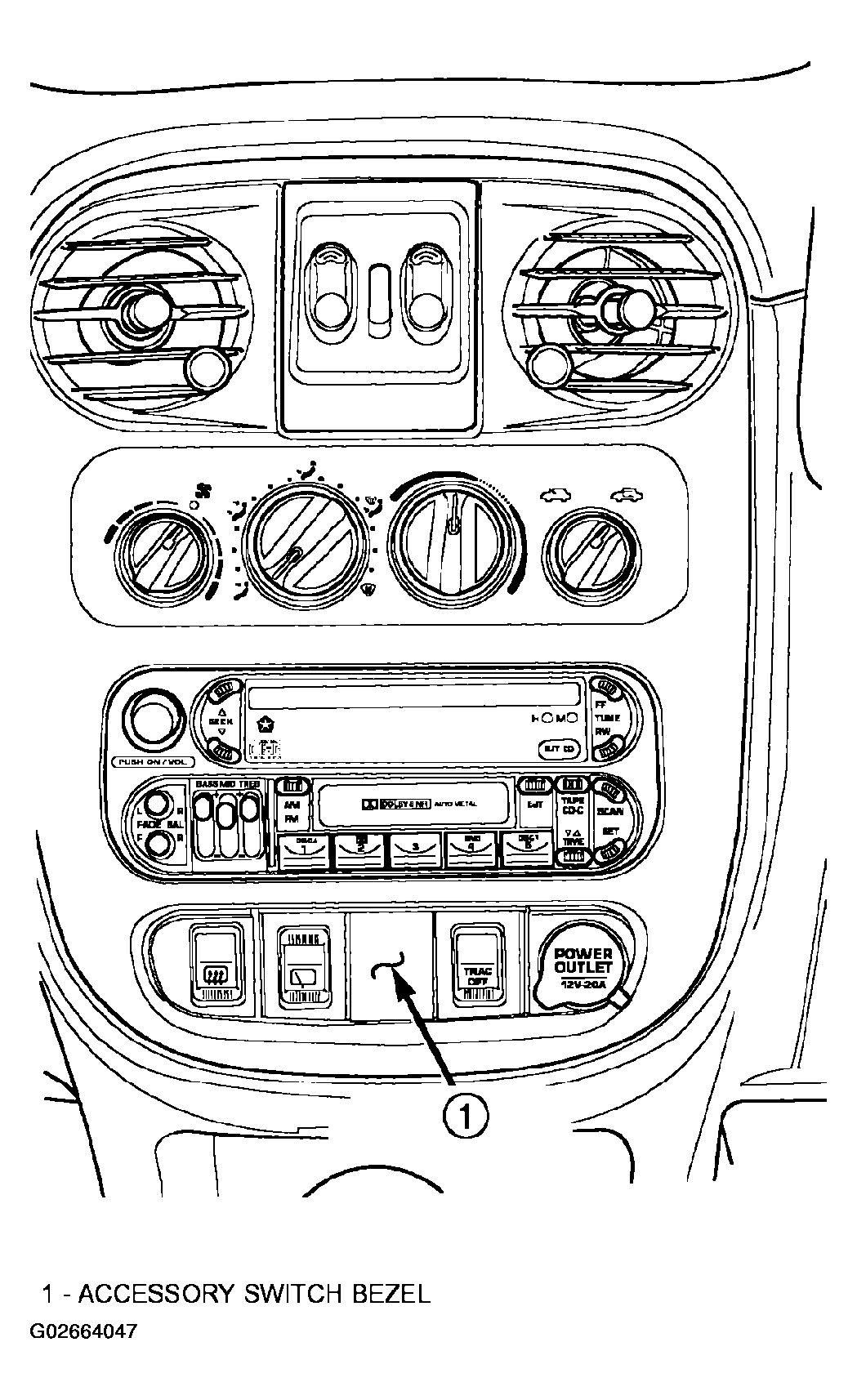

Fig 1: Identifying Accessory Switch Bezel Location

Courtesy of DAIMLERCHRYSLER CORP.

Open hood.
Disconnect and isolate the battery negative cable (Fig 2 ).

Fig 2: Disconnecting And Isolating Battery Negative Cable
Courtesy of DAIMLERCHRYSLER CORP.
Remove the instrument panel center bezel. Refer to CLUSTER BEZEL .
Remove two screws retaining the accessory switch bezel (Fig 3 ).

Fig 3: Removing Accessory Switch Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the harness connectors to the following (Fig 4 ):
- Rear Window Defogger Switch (if equipped)
- Traction Control Switch (if equipped)
- Cigar Lighter/Power Outlet
- Rear Windshield Washer/Wiper Switch
Fig 4: Disconnecting Accessory Switch Bezel Connectors
Courtesy of DAIMLERCHRYSLER CORP.
To remove switches from bezel, use both thumbs and slightly pull out on the two walls that are holding the switches (Fig 5 ).

Fig 5: Identifying Accessory Switch Bezel Switch
Courtesy of DAIMLERCHRYSLER CORP.
