Latch Striker: Installation

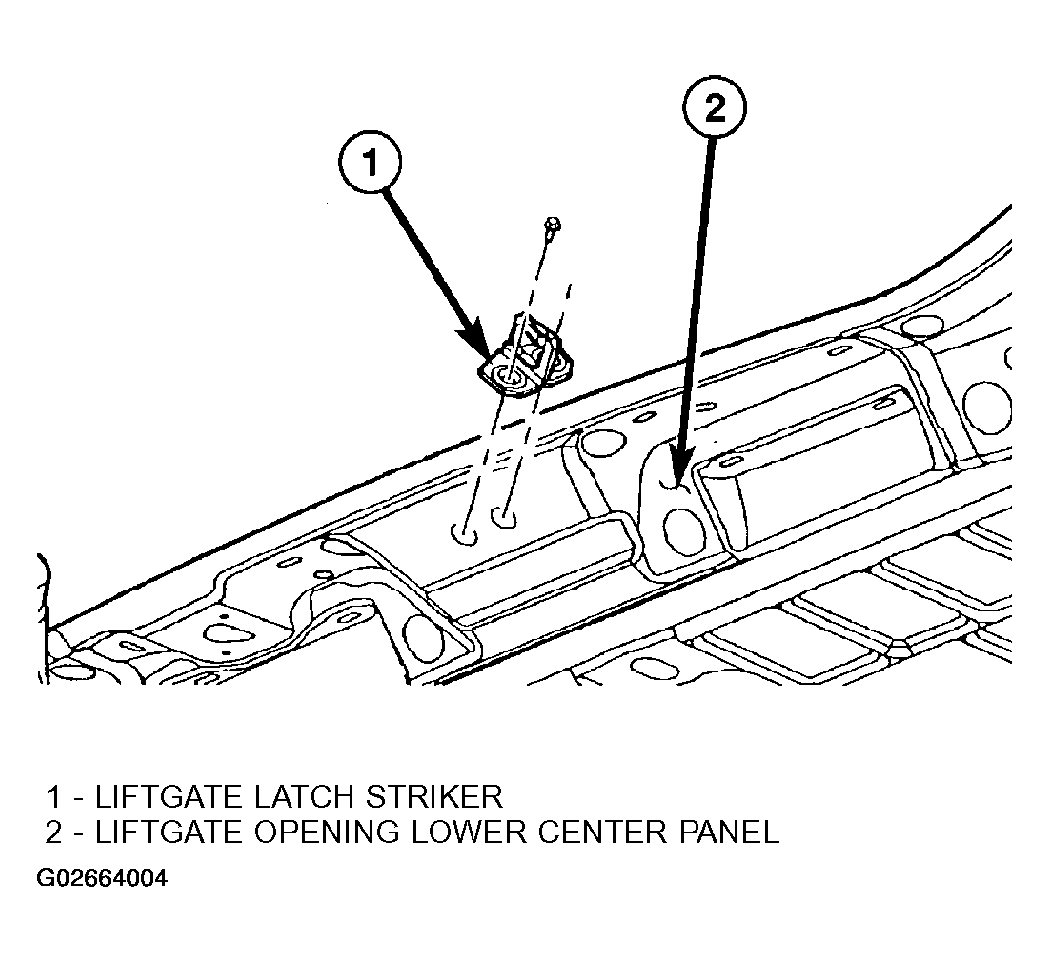

  1. Place striker in position on vehicle (Figure ).
  2. Align striker to outline mark on sill.
  3. Install screws attaching striker to sill. Tighten screws to 28 N.m (21 ft. lbs.) torque.
  4. Verify liftgate alignment and operation.
