Exterior/Interior Trim: Interior: Headliner: Installation

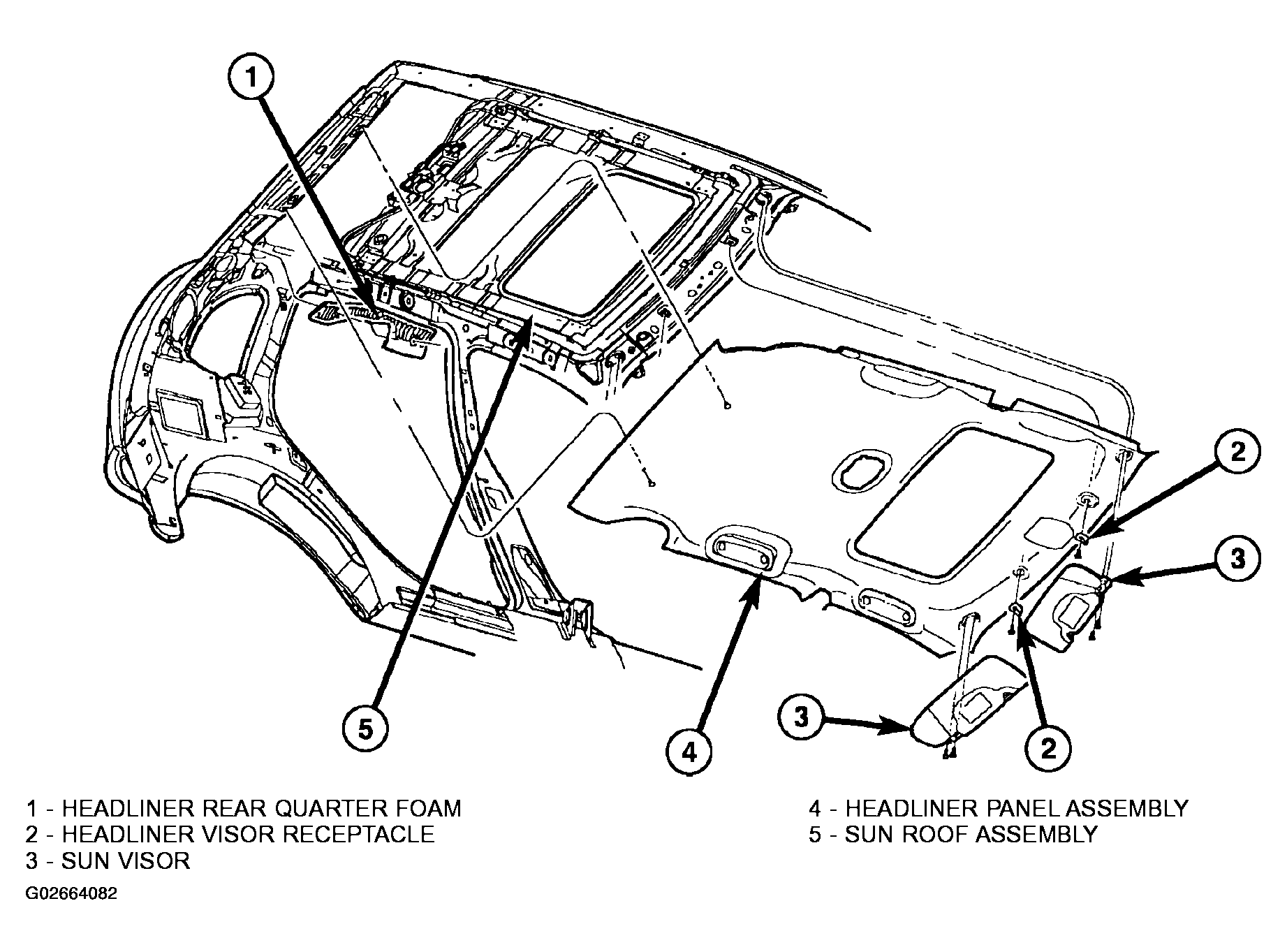

  1. Position headliner in vehicle (Figure ).
  2. Install sun visor hooks, if so equipped.
  3. Install two push in fastener at rear of headliner.
  4. Install coat hooks, if so equipped.
  5. Install assist handles, if so equipped.
  6. Install push in fastener attaching headliner wiring to C-pillar.
  7. Connect dome lamp wire connector, at rear of headliner.
  8. Install (upper) quarter panel trim panel.
  9. Install B-pillar trim panels.
  10. Install A-pillar trim covers.
  11. Install trim lace, if equipped with sun roof.
  12. Install sun visors, lighted vanity mirror wire connector, if so equipped, and screws attaching sun visors to roof header panel.
