Connector PINOUTS

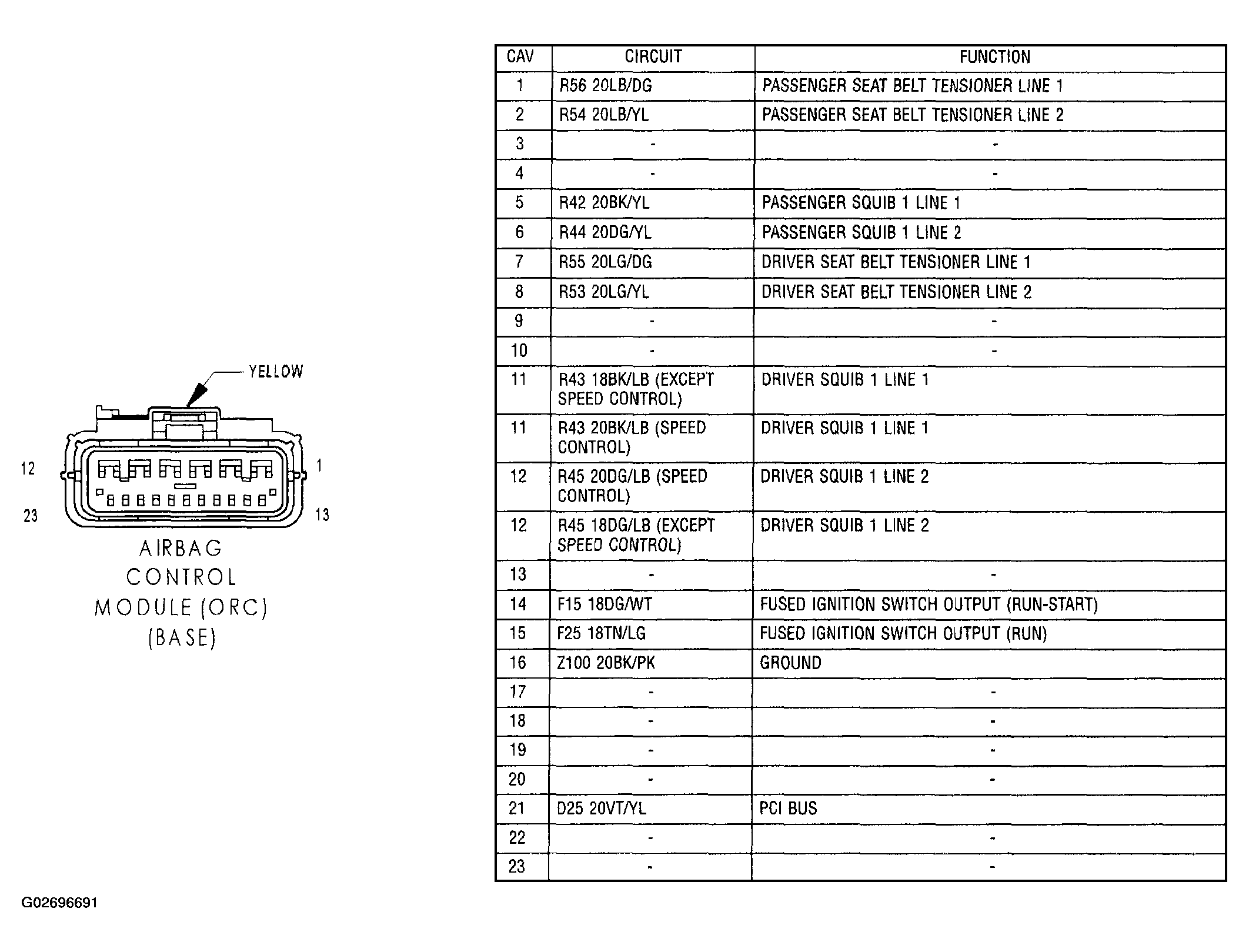

Fig 1: Identifying Airbag Control Module (ORC) (Base) Connector Pinouts

G02696691

Courtesy of DAIMLERCHRYSLER CORP.

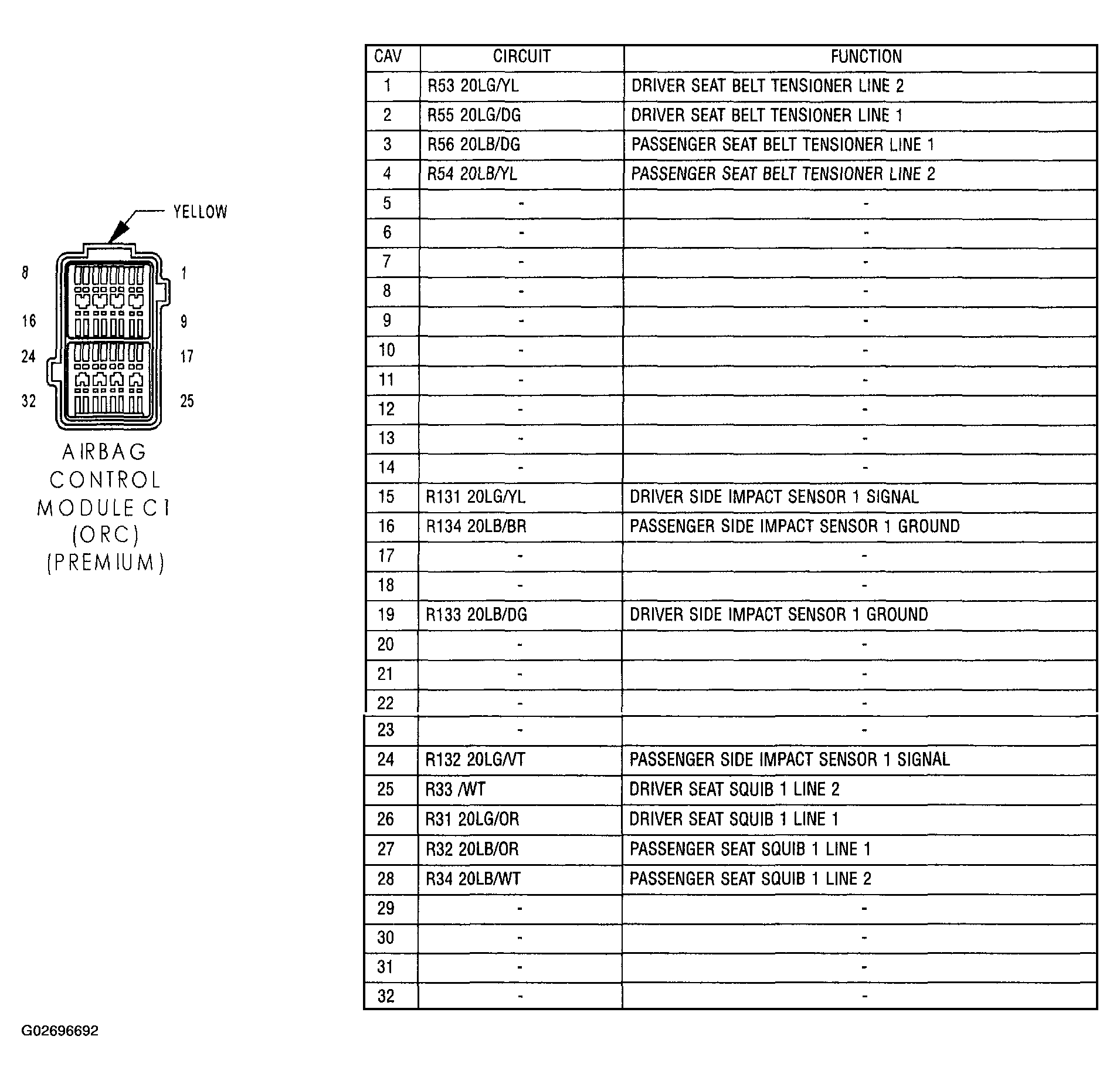

Fig 2: Identifying Airbag Control Module C1 (ORC) (PREMIUM)Connector Pinouts

G02696692

Courtesy of DAIMLERCHRYSLER CORP.

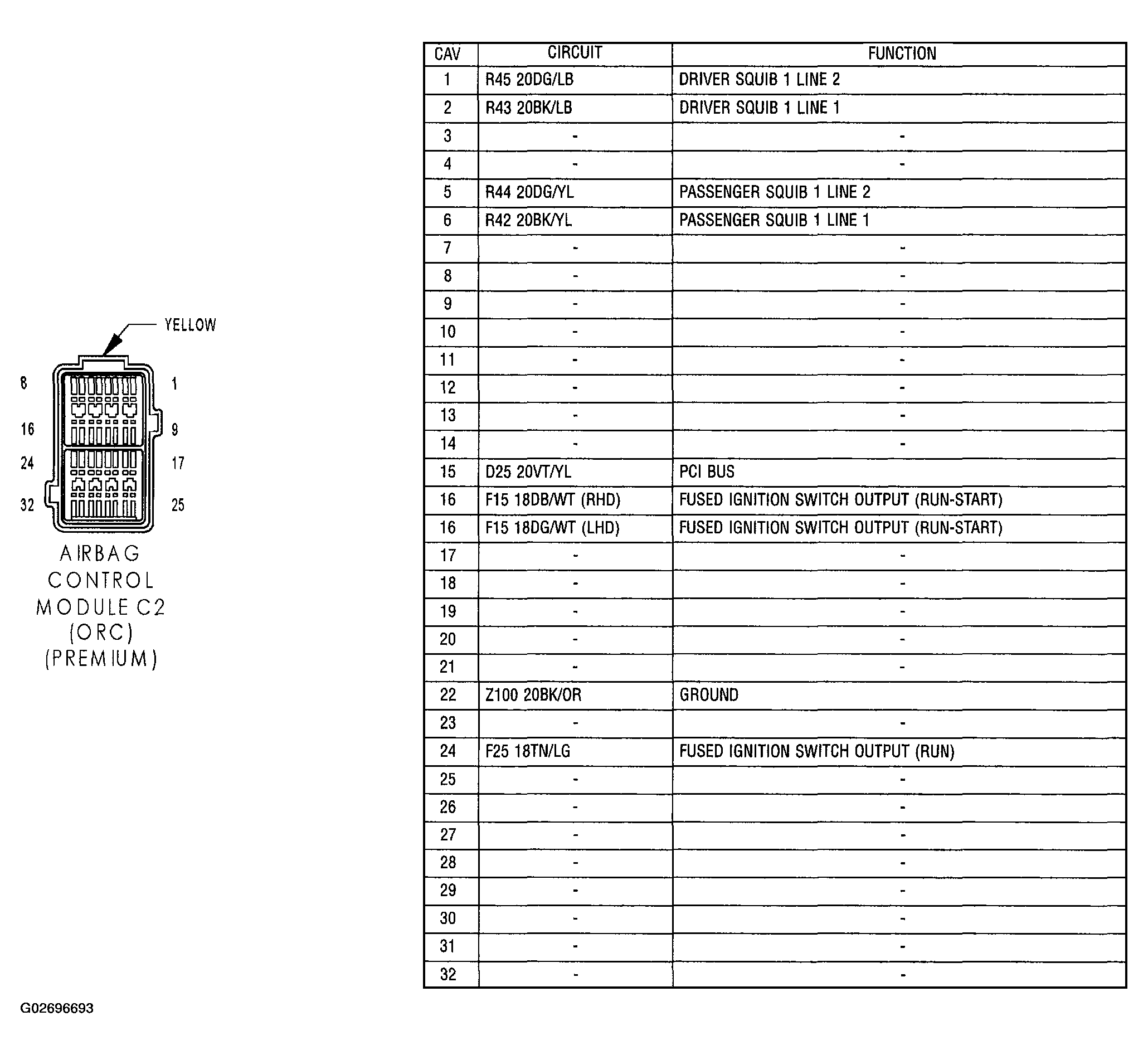

Fig 3: Identifying Airbag Control Module C2 (ORC) (Premium) Connector Pinouts

G02696693

Courtesy of DAIMLERCHRYSLER CORP.

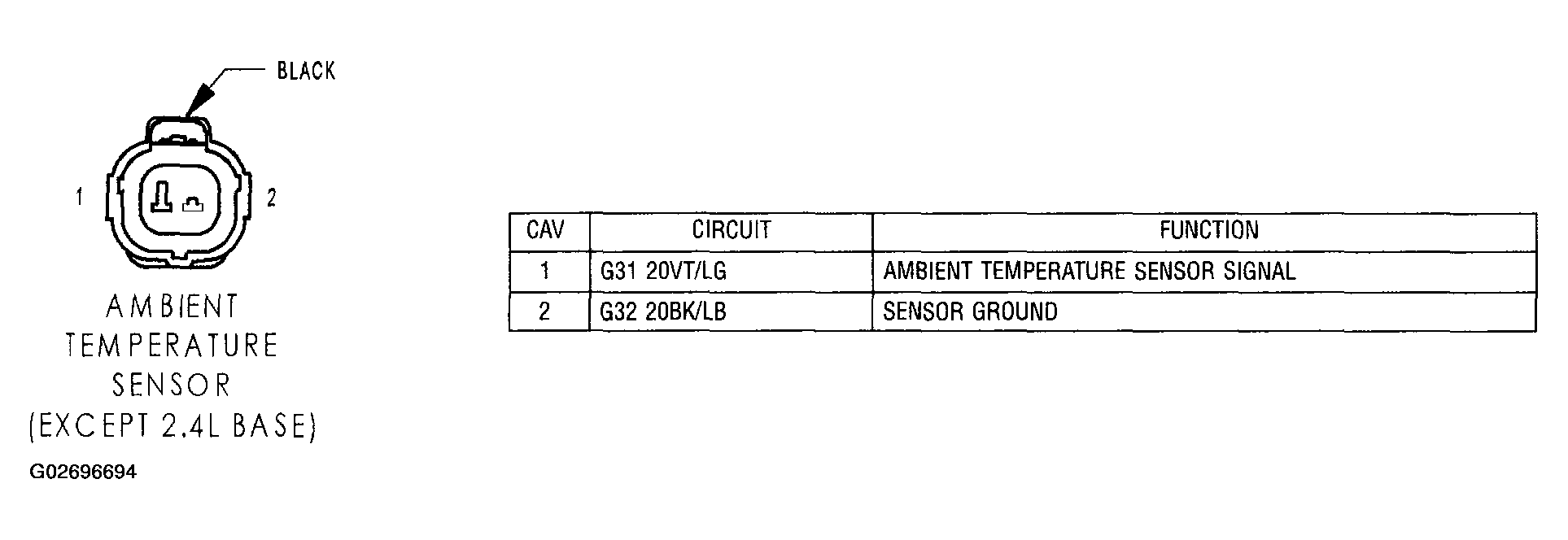

Fig 4: Identifying Ambient Temperature Sensor (Except 2.4L Base) Connector Pinouts

G02696694

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Brake Warning Indicator Switch Connector Pinouts

G02696695

Courtesy of DAIMLERCHRYSLER CORP.

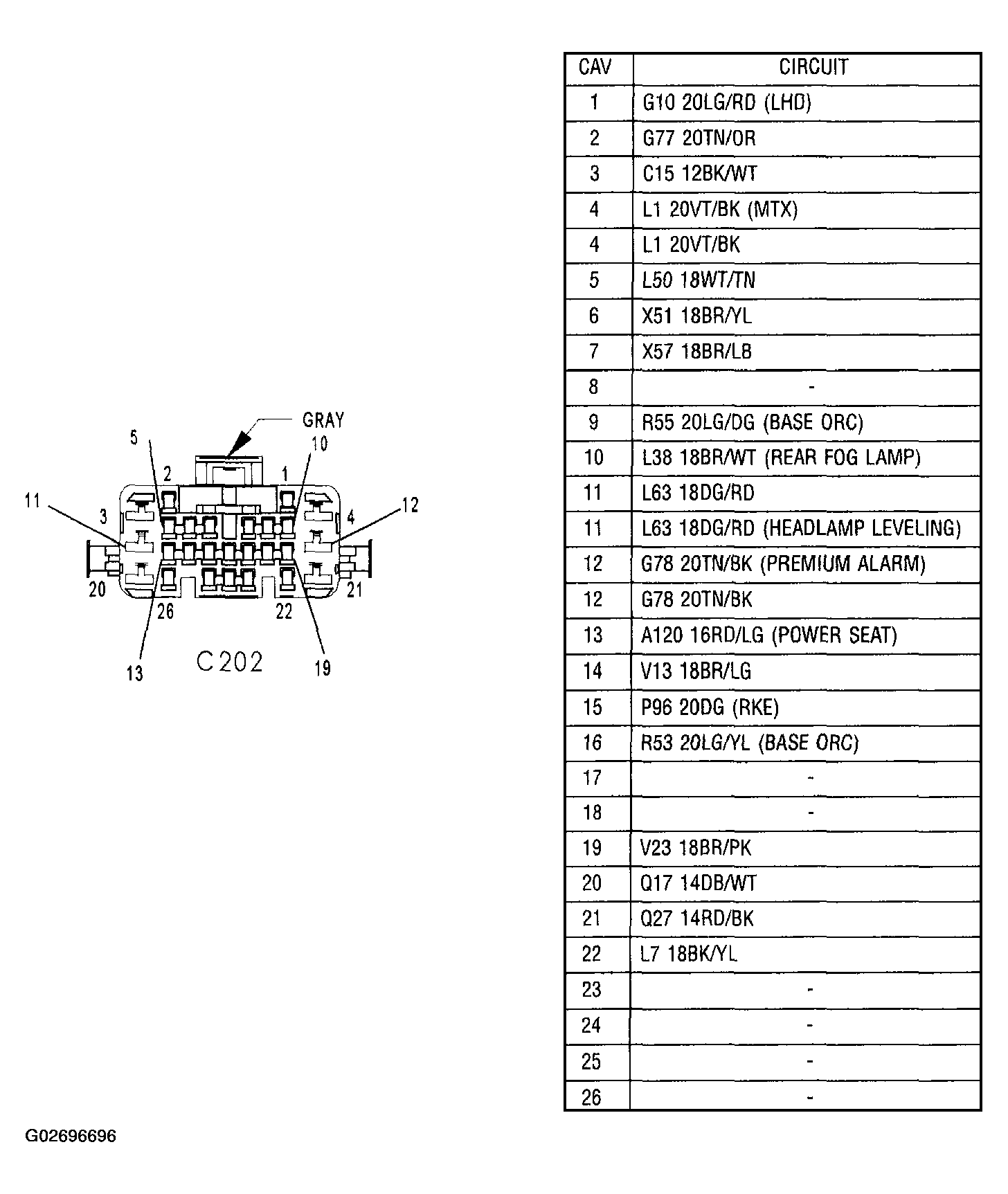

Fig 6: Identifying C202 Connector Pinouts (1 Of 2)

G02696696

Courtesy of DAIMLERCHRYSLER CORP.

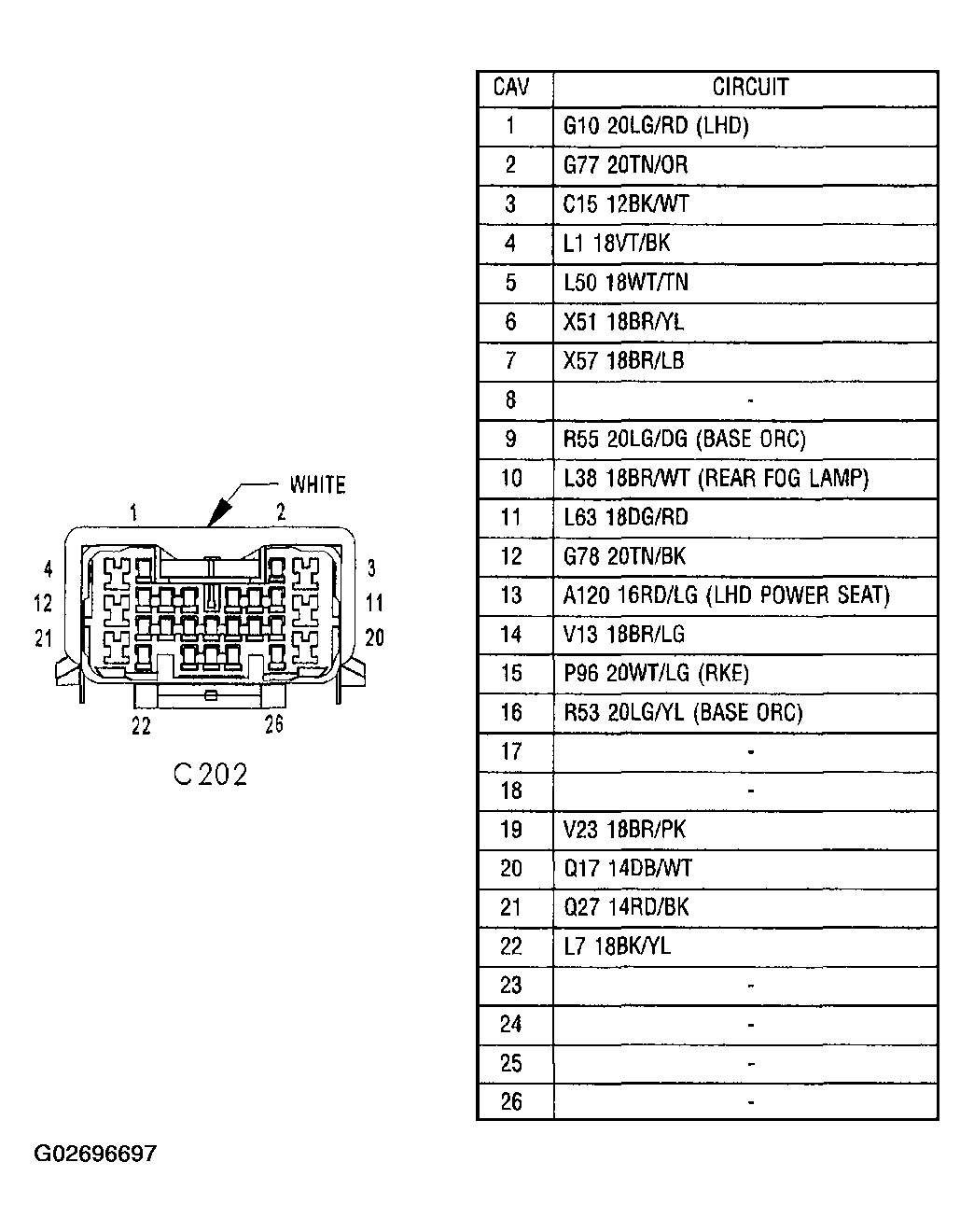

Fig 7: Identifying C202 Connector Pinouts (2 Of 2)

G02696697

Courtesy of DAIMLERCHRYSLER CORP.

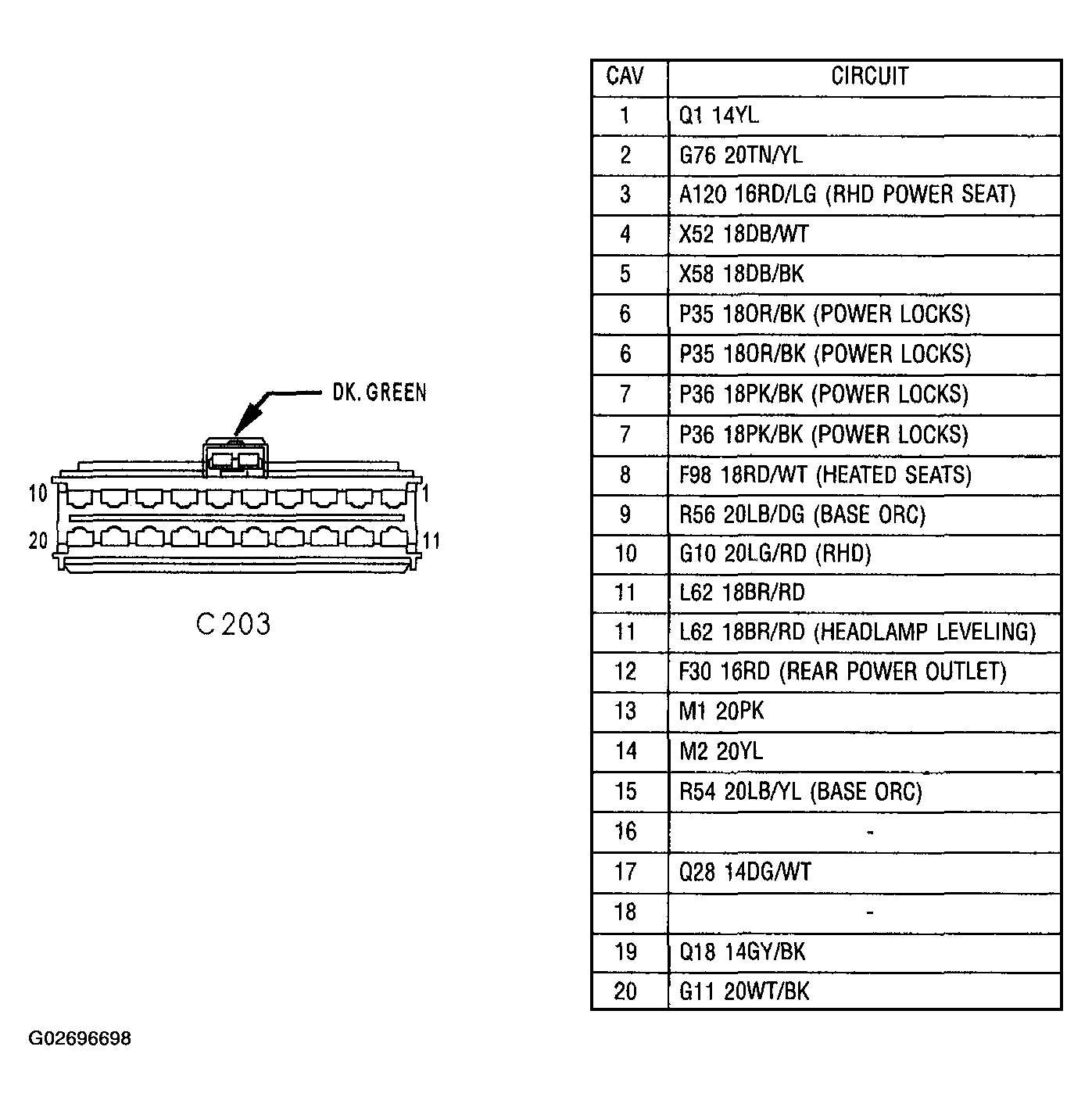

Fig 8: Identifying C203 Connector Pinouts (1 Of 2)

G02696698

Courtesy of DAIMLERCHRYSLER CORP.

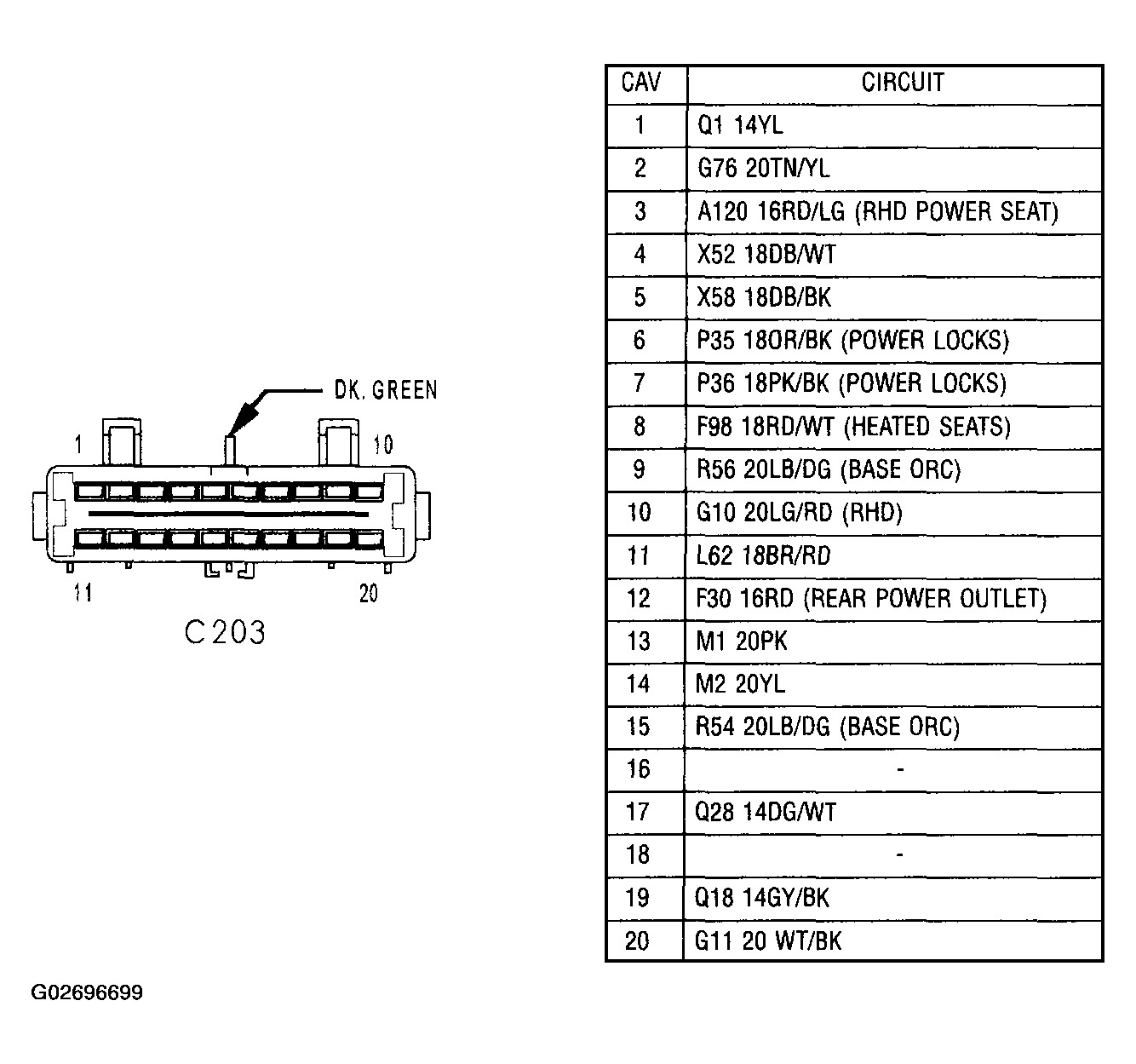

Fig 9: Identifying C203 Connector Pinouts (2 Of 2)

G02696699

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying C305 (Passenger) Connector Pinouts (1 Of 2)

G02696700

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying C305 (Passenger) Connector Pinouts (2 Of 2)

G02696701

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying C306 (Driver) (1 Of 2)

G02696702

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying C306 (Driver) Connector Pinouts (2 Of 2)

G02696703

Courtesy of DAIMLERCHRYSLER CORP.

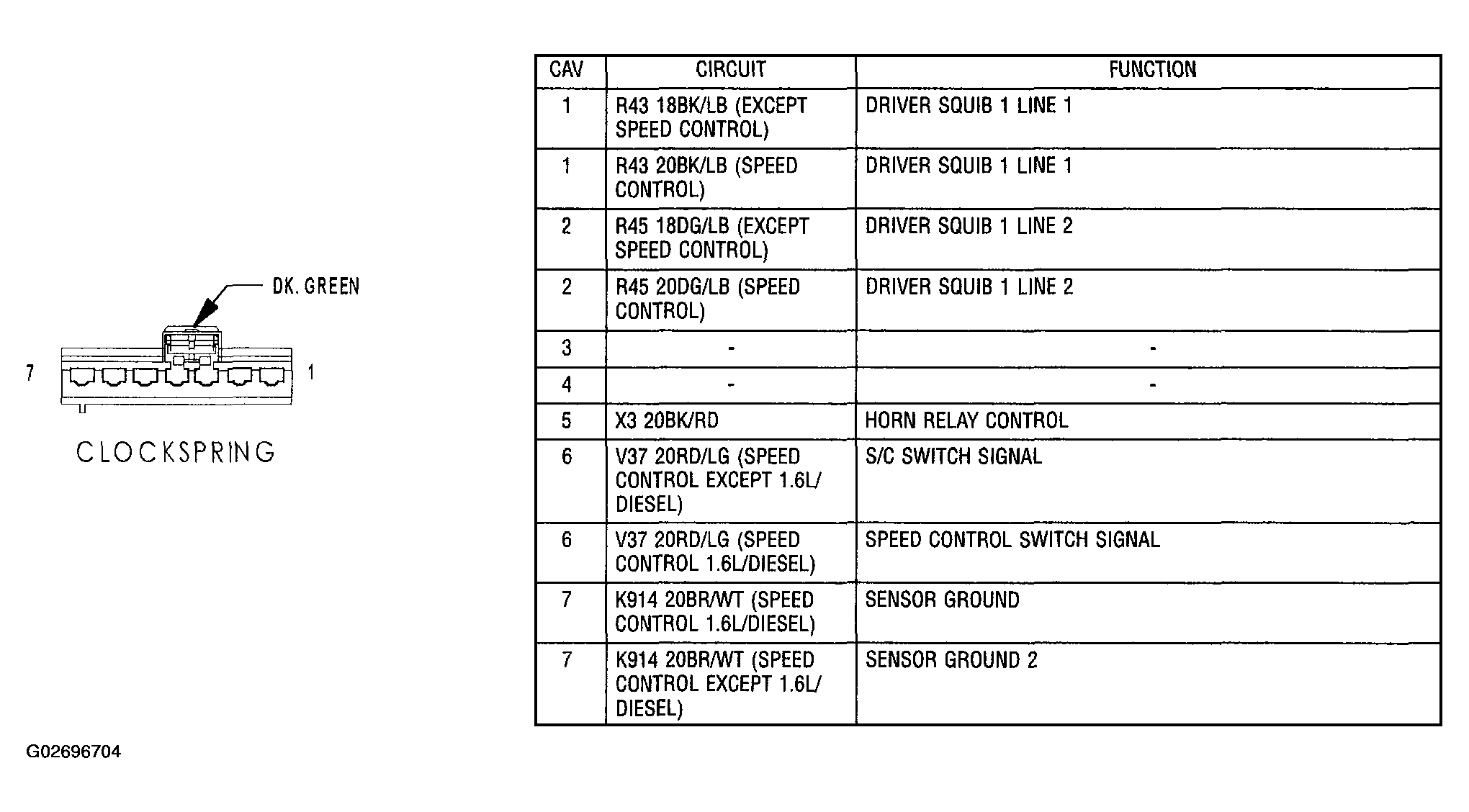

Fig 14: Identifying Clockspring Connector Pinouts

G02696704

Courtesy of DAIMLERCHRYSLER CORP.

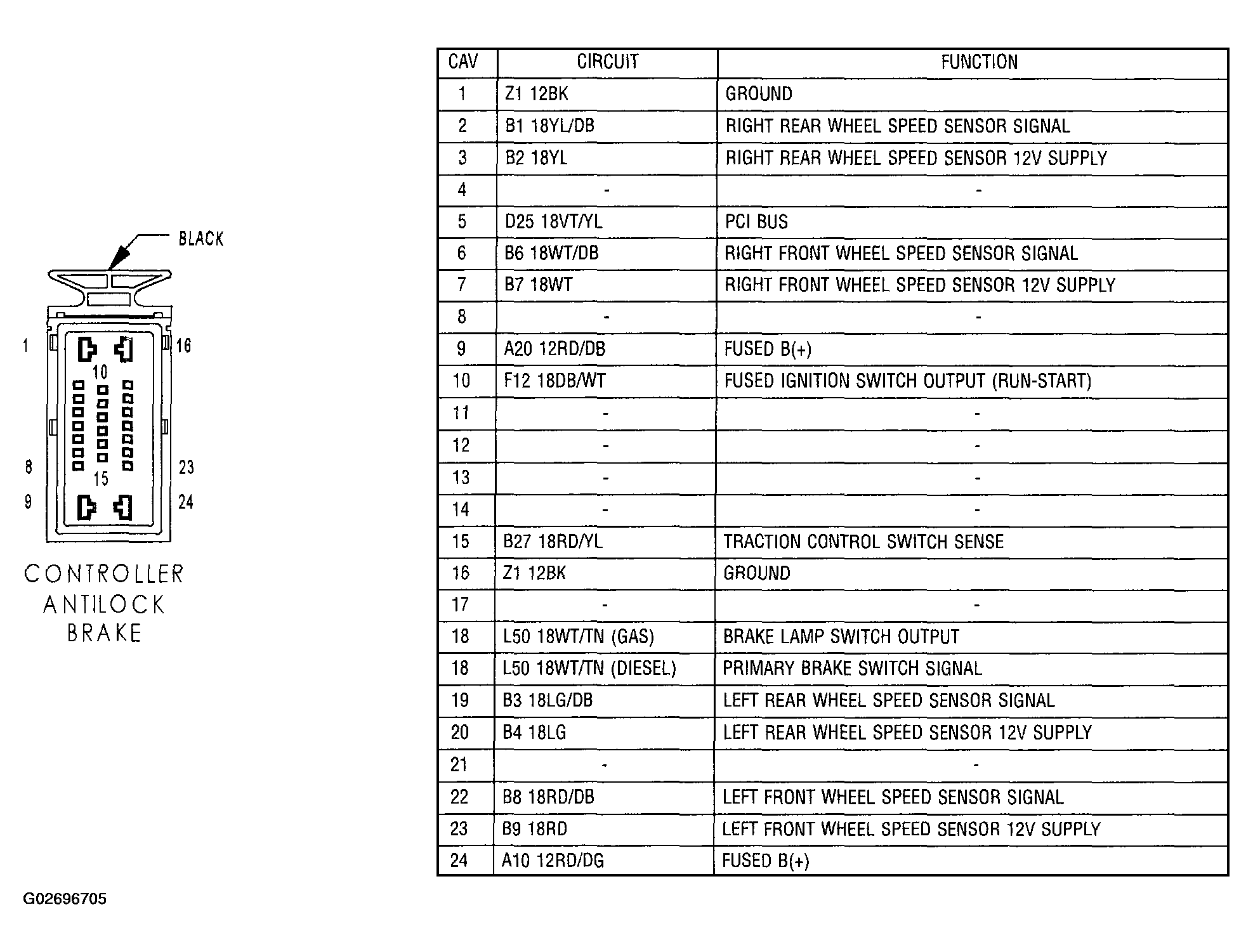

Fig 15: Identifying Controller Antilock Brake Connector Pinouts

G02696705

Courtesy of DAIMLERCHRYSLER CORP.

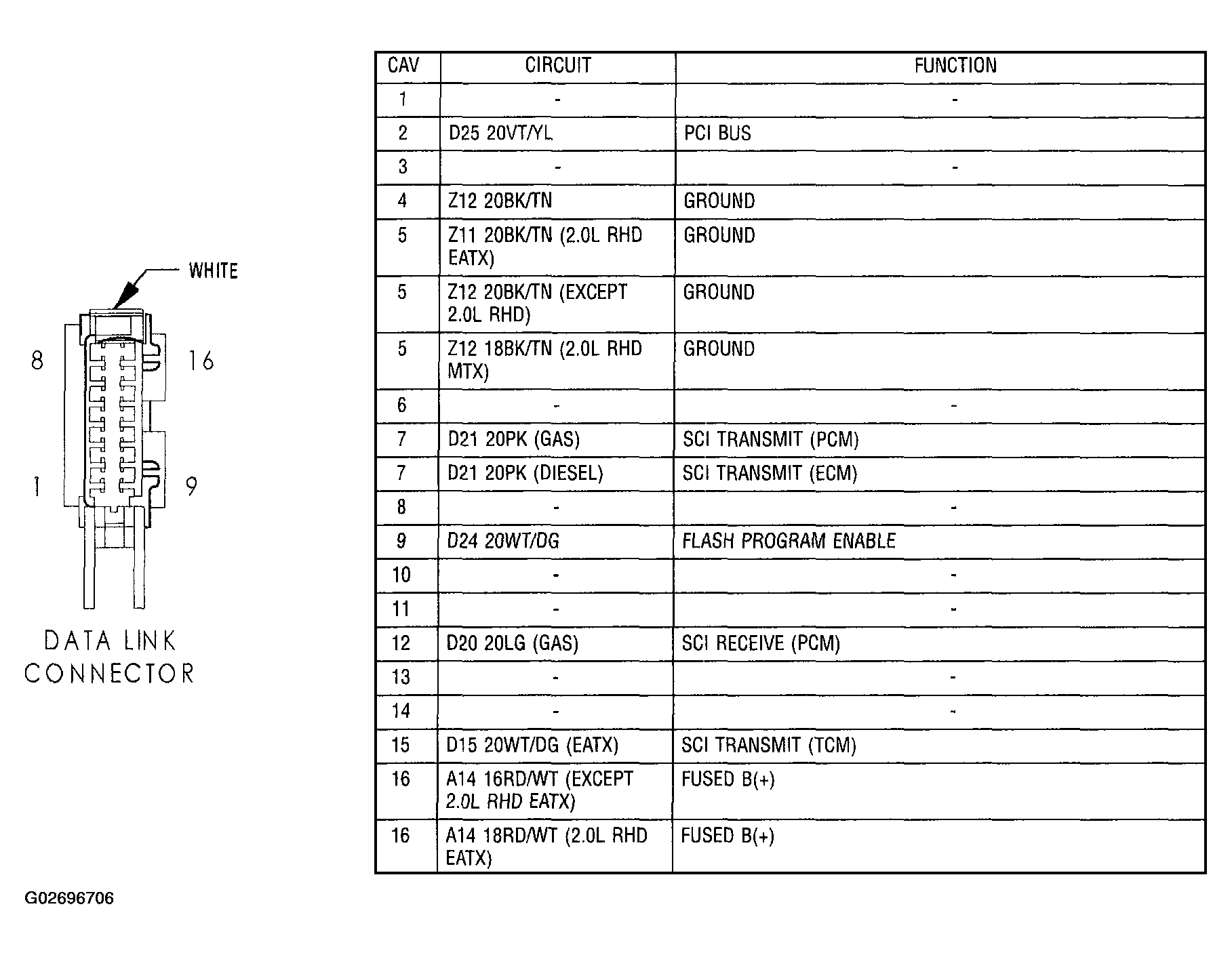

Fig 16: Identifying Data Link Connector Pinouts

G02696706

Courtesy of DAIMLERCHRYSLER CORP.

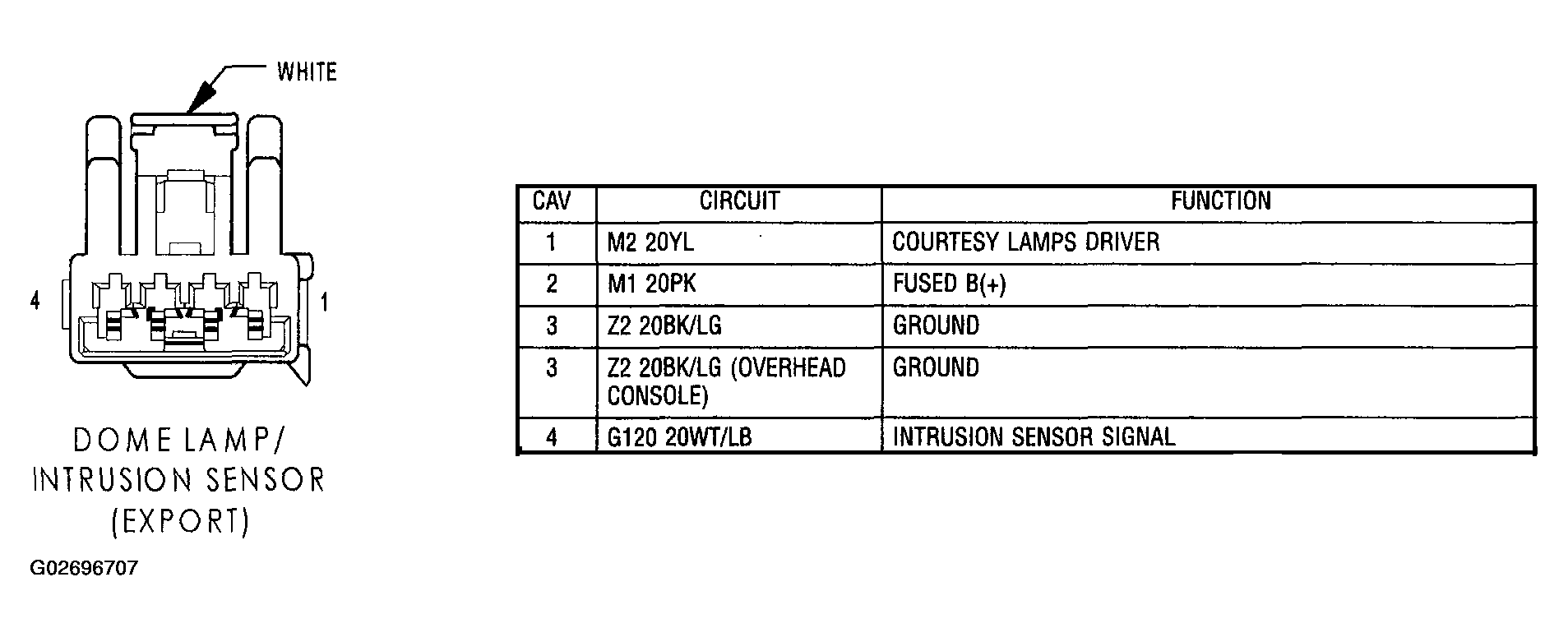

Fig 17: Identifying Dome Lamp/Intrusion Sensor (Export) Connector Pinouts

G02696707

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Identifying Driver Airbag Squib 1 Connector Pinouts

G02696708

Courtesy of DAIMLERCHRYSLER CORP.

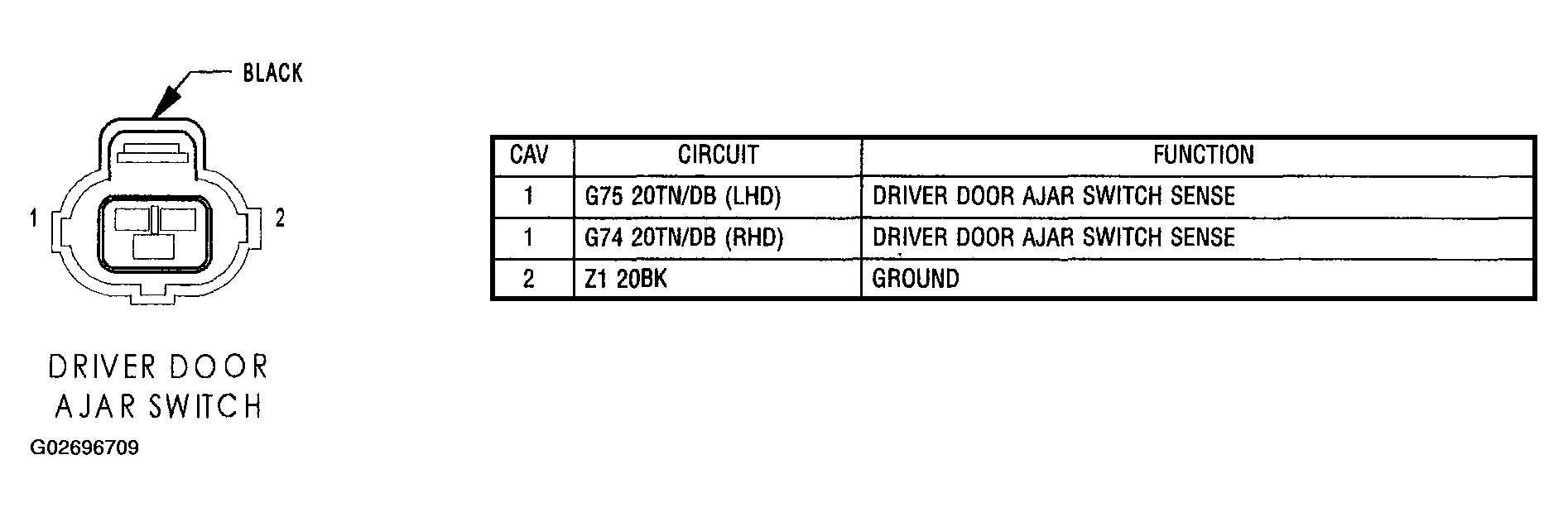

Fig 19: Identifying Driver Door Ajar Switch Connector Pinouts

G02696709

Courtesy of DAIMLERCHRYSLER CORP.

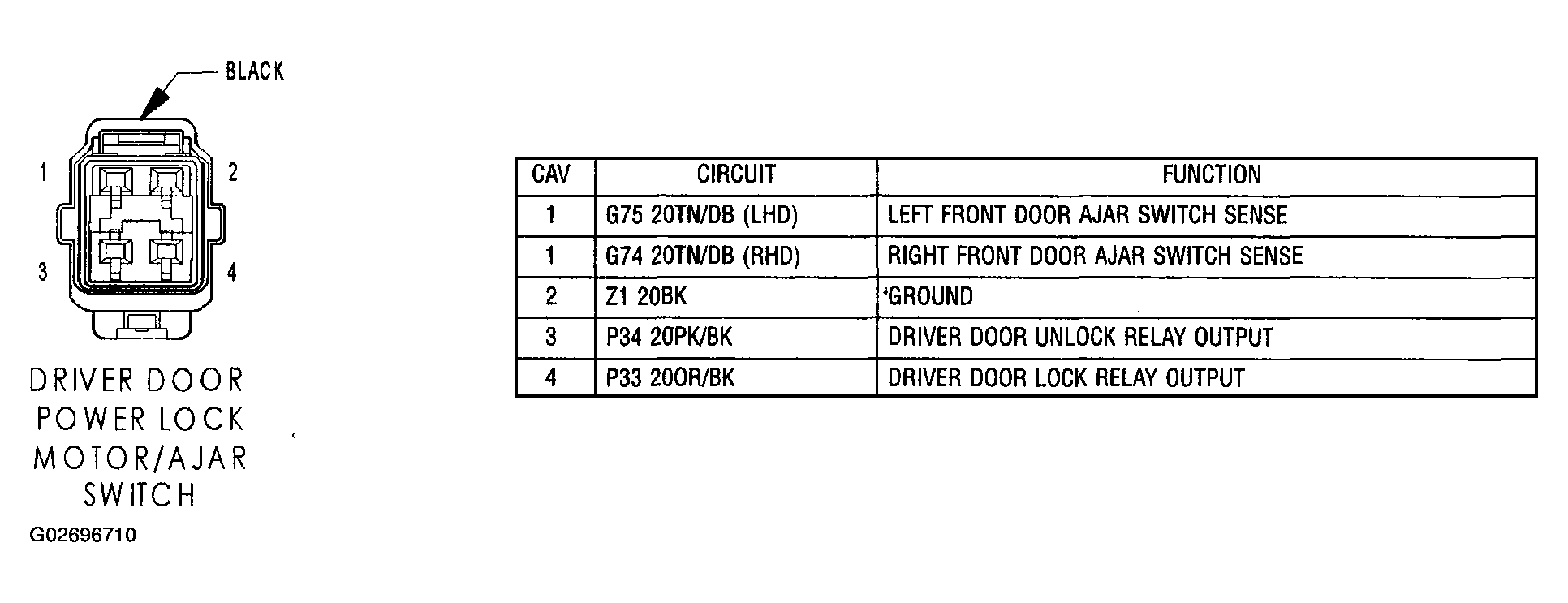

Fig 20: Identifying Driver Door Power Lock Motor/Ajar Switch Connector Pinouts

G02696710

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Identifying Driver Seat Airbag Squib Connector Pinouts

G02696711

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Identifying Driver Seat Belt Switch Connector Pinouts

G02696712

Courtesy of DAIMLERCHRYSLER CORP.

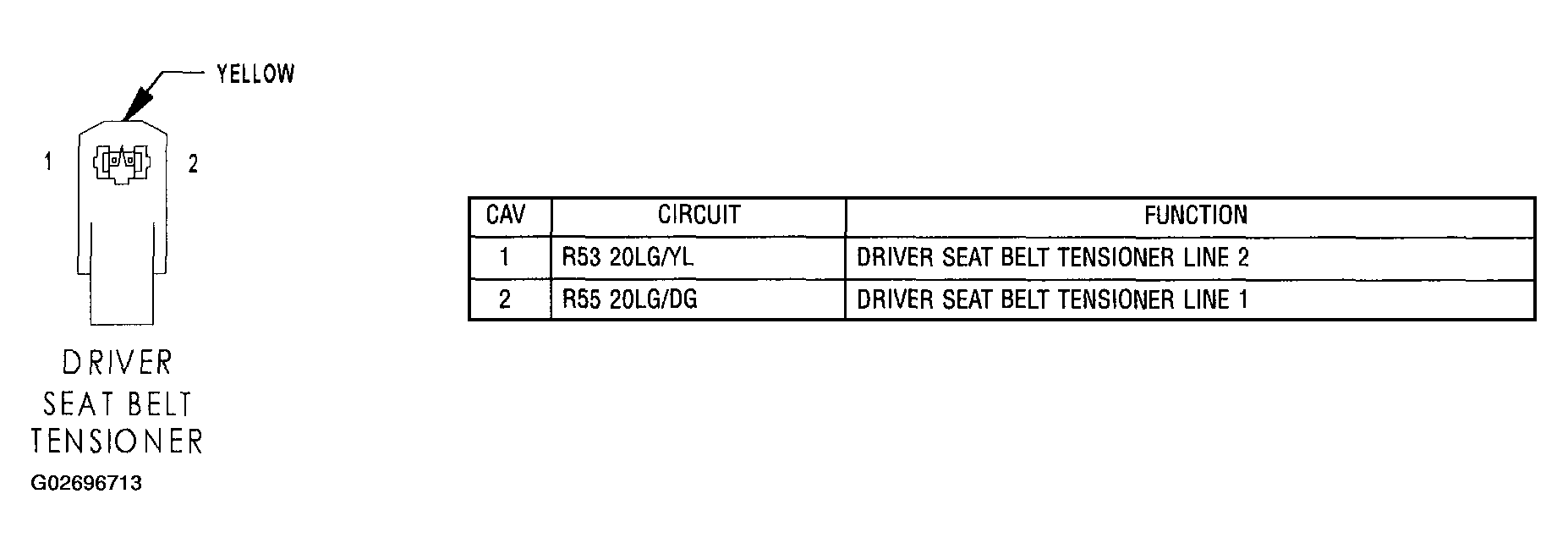

Fig 23: Identifying Driver Seat Belt Tensioner Connector Pinouts

G02696713

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Identifying Driver Side Impact Sensor 1 Connector Pinouts

G02696714

Courtesy of DAIMLERCHRYSLER CORP.

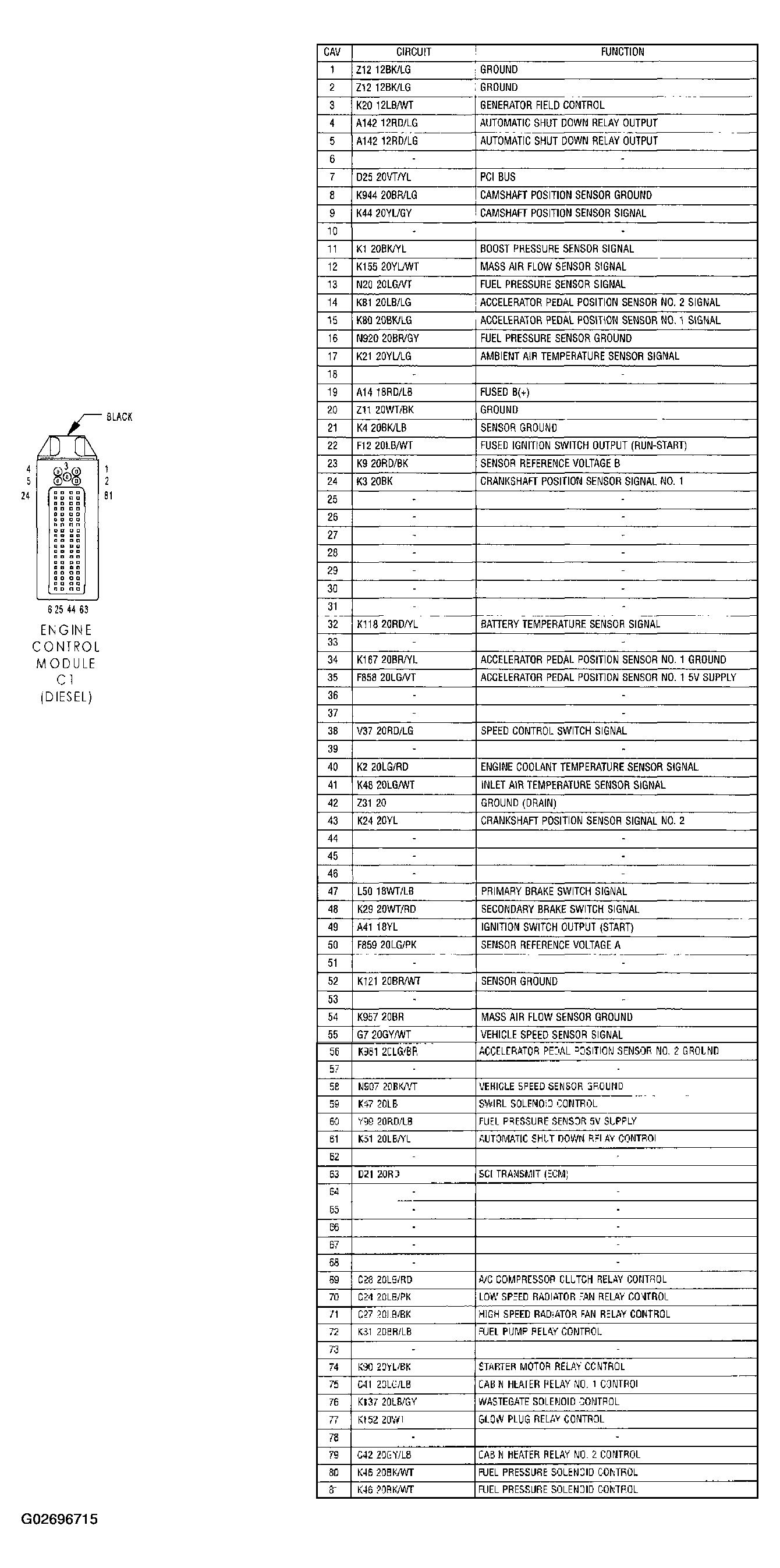

Fig 25: Identifying Engine Control Module C1 (Diesel) Connector Pinouts

G02696715

Courtesy of DAIMLERCHRYSLER CORP.

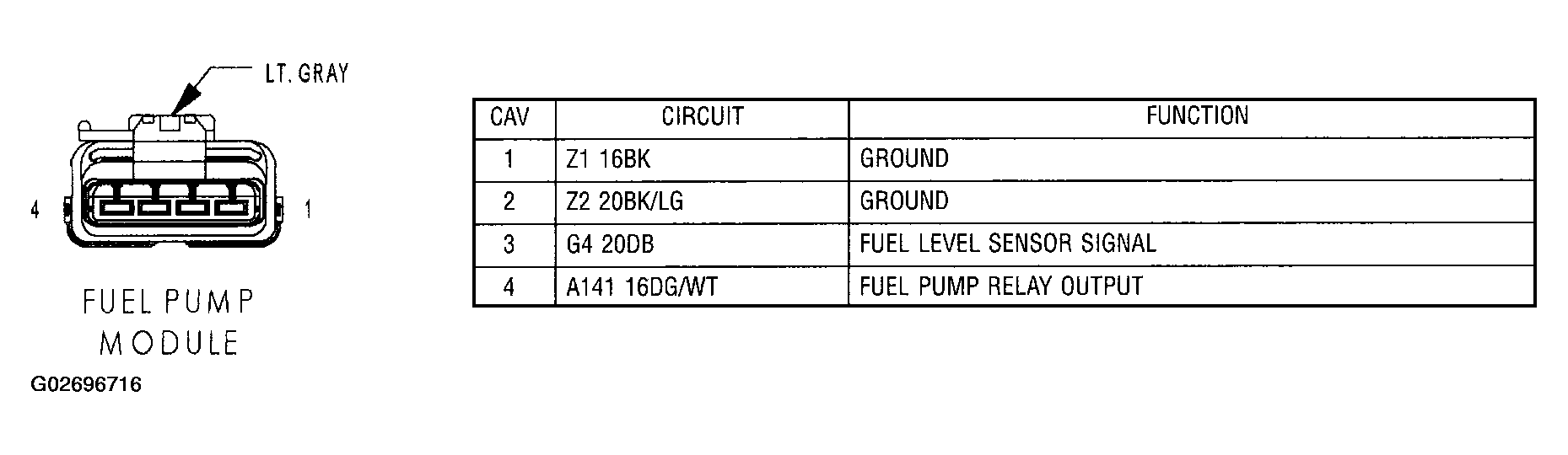

Fig 26: Identifying Fuel Pump Module Connector Pinouts

G02696716

Courtesy of DAIMLERCHRYSLER CORP.

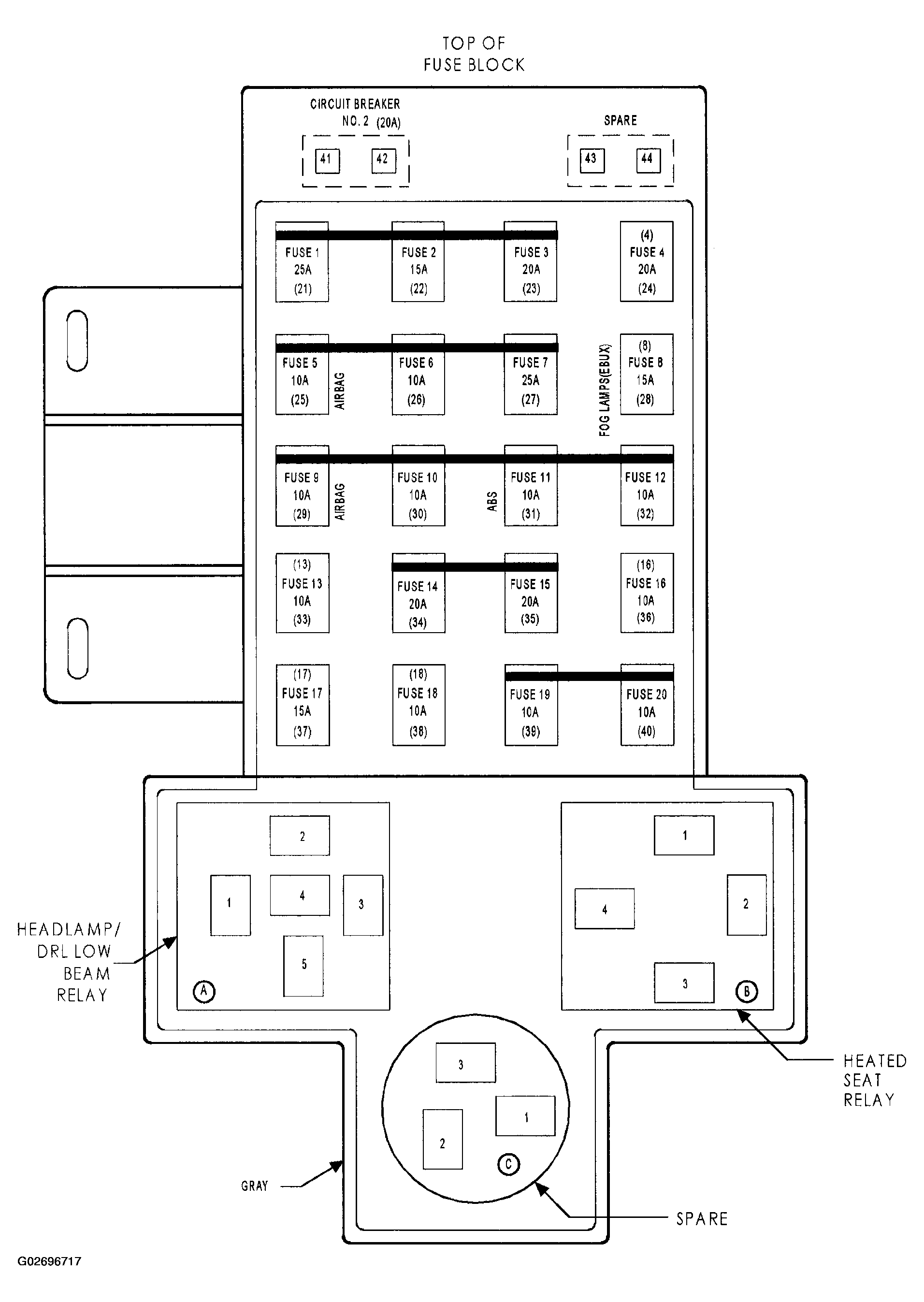

Fig 27: Identifying Top Of Fuse Block

G02696717

Courtesy of DAIMLERCHRYSLER CORP.

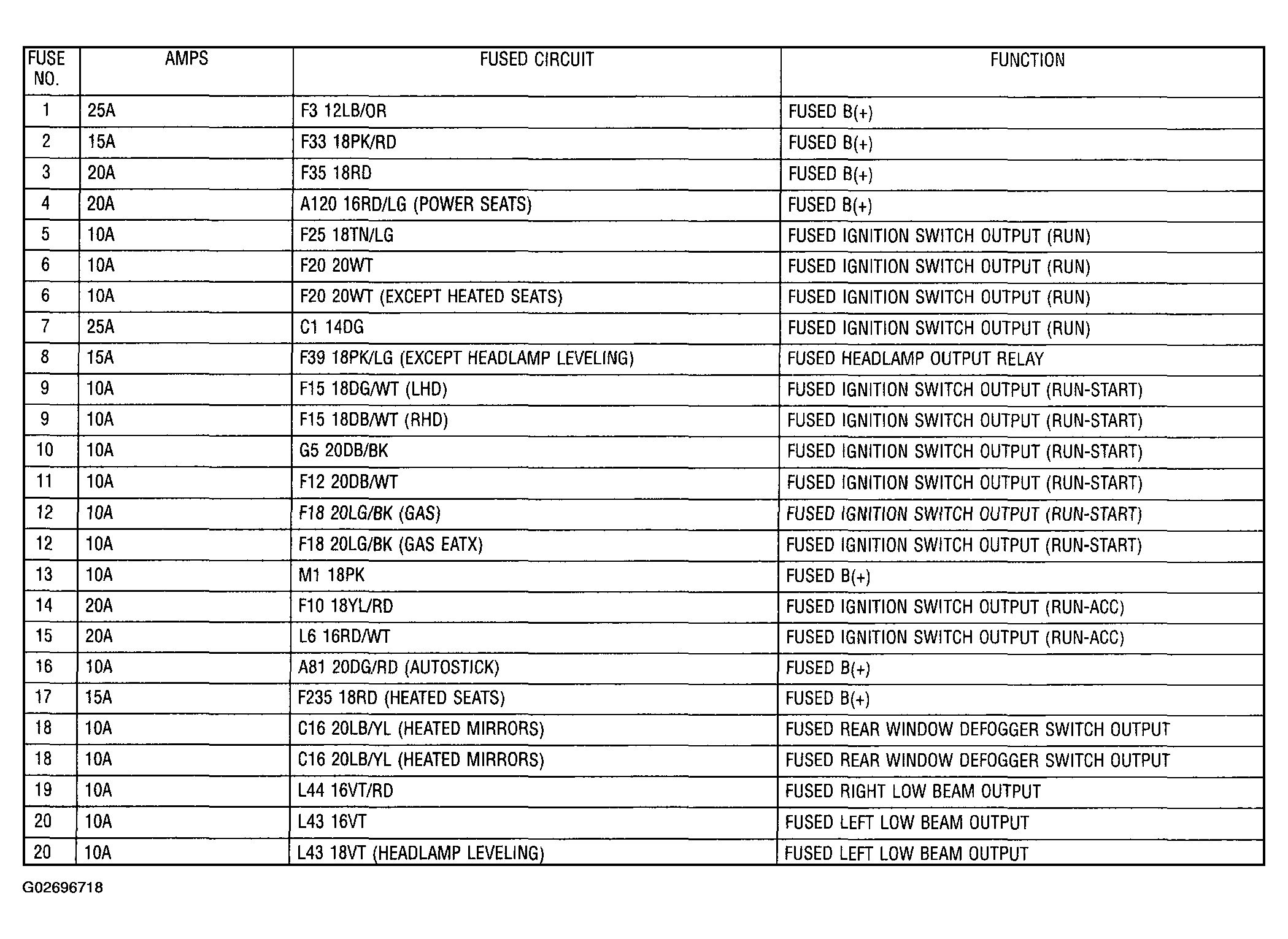

Fig 28: Fuses (FB) Circuit Function Chart

G02696718

Courtesy of DAIMLERCHRYSLER CORP.

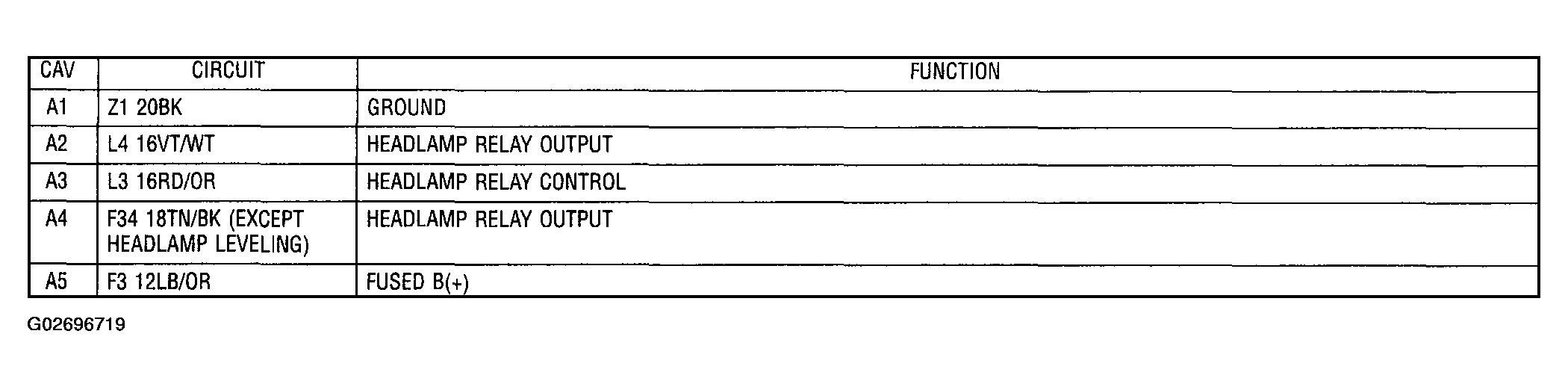

Fig 29: Headlamp Relay (LHD) Circuit Function Chart

G02696719

Courtesy of DAIMLERCHRYSLER CORP.

Fig 30: Headlamp Relay (RHD) Circuit Function Chart

G02696720

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Identifying High Note Horn Connector Pinouts

G02696721

Courtesy of DAIMLERCHRYSLER CORP.

Fig 32: Identifying Hood Ajar Switch (Export) Connector Pinouts

G02696722

Courtesy of DAIMLERCHRYSLER CORP.

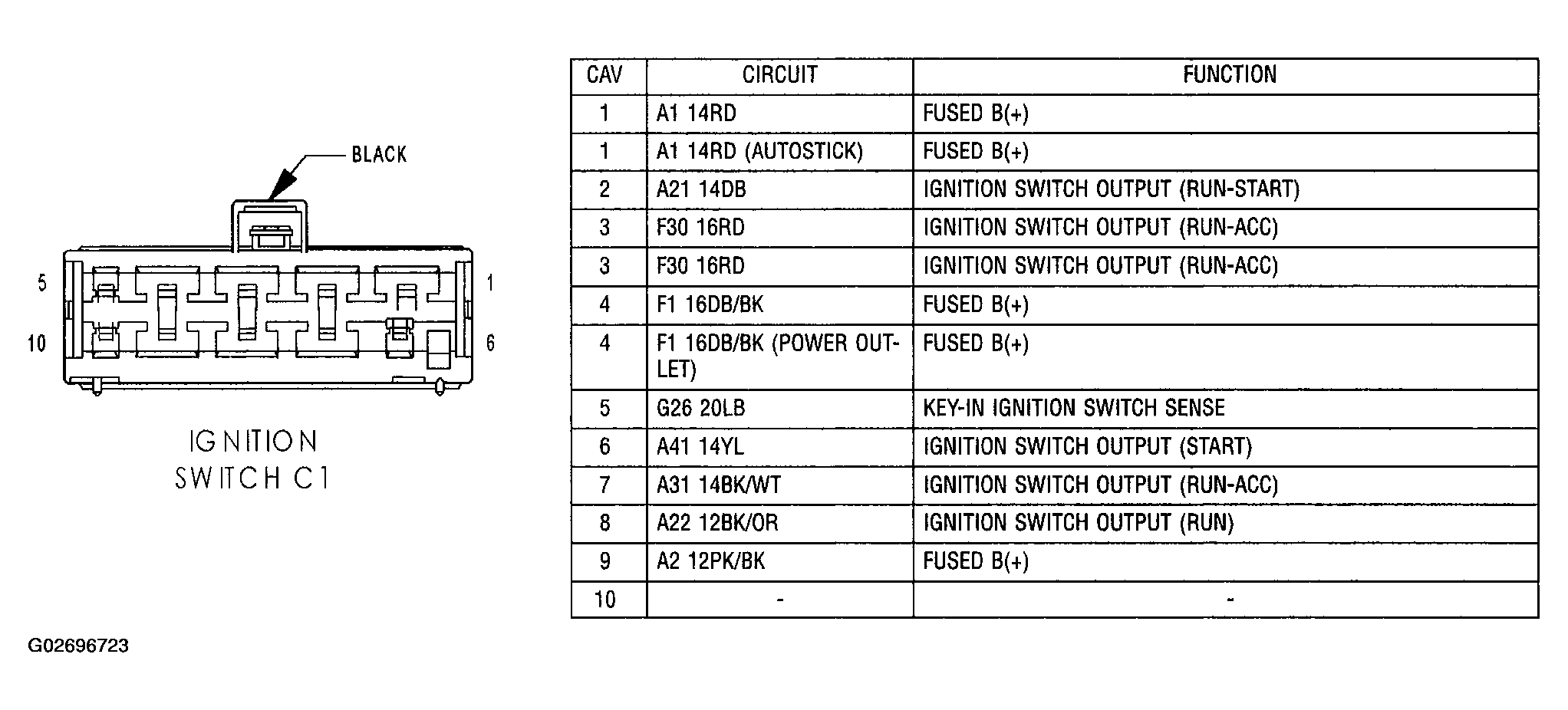

Fig 33: Identifying Ignition Switch C1 Connector Pinouts

G02696723

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Ignition Switch C2 (Autostick) Connector Pinouts

G02696724

Courtesy of DAIMLERCHRYSLER CORP.

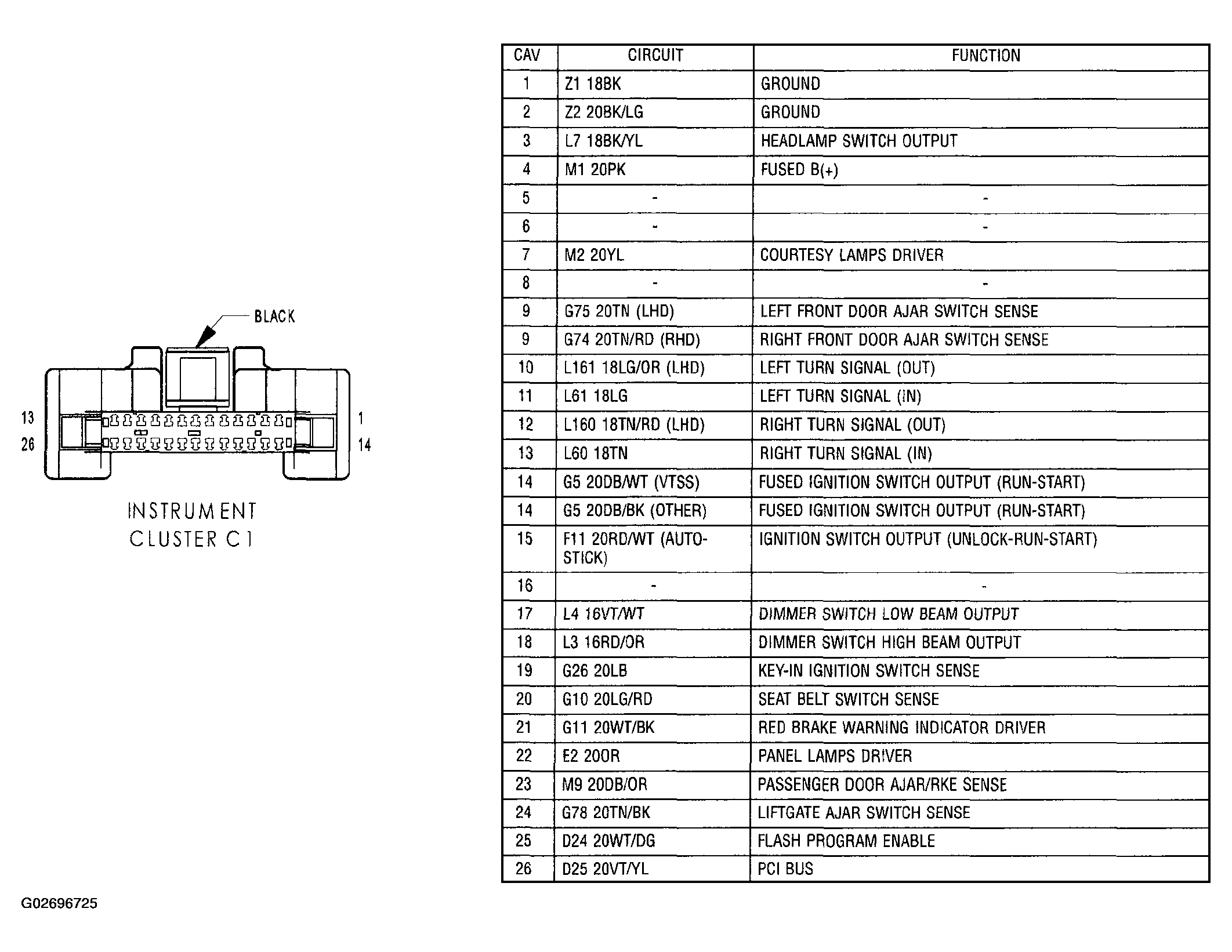

Fig 35: Identifying Instrument Cluster C1 Connector Pinouts

G02696725

Courtesy of DAIMLERCHRYSLER CORP.

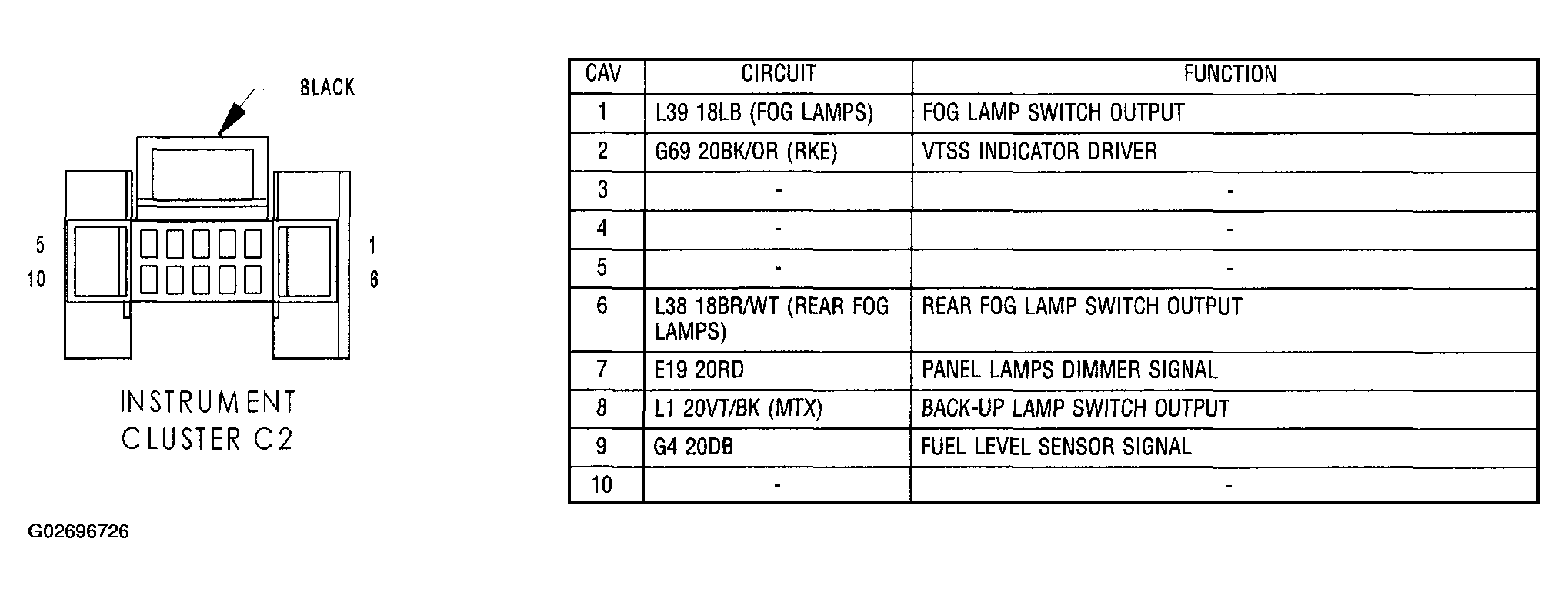

Fig 36: Identifying Instrument Cluster C2 Connector Pinouts

G02696726

Courtesy of DAIMLERCHRYSLER CORP.

Fig 37: Identifying Left Cylinder Lock Switch Connector Pinouts

G02696727

Courtesy of DAIMLERCHRYSLER CORP.

Fig 38: Identifying Left Door Lock Switch Connector Pinouts

G02696728

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Identifying Left Front Door Speaker Connector Pinouts

G02696729

Courtesy of DAIMLERCHRYSLER CORP.

Fig 40: Identifying Left Instrument Panel Speaker Connector Pinouts

G02696730

Courtesy of DAIMLERCHRYSLER CORP.

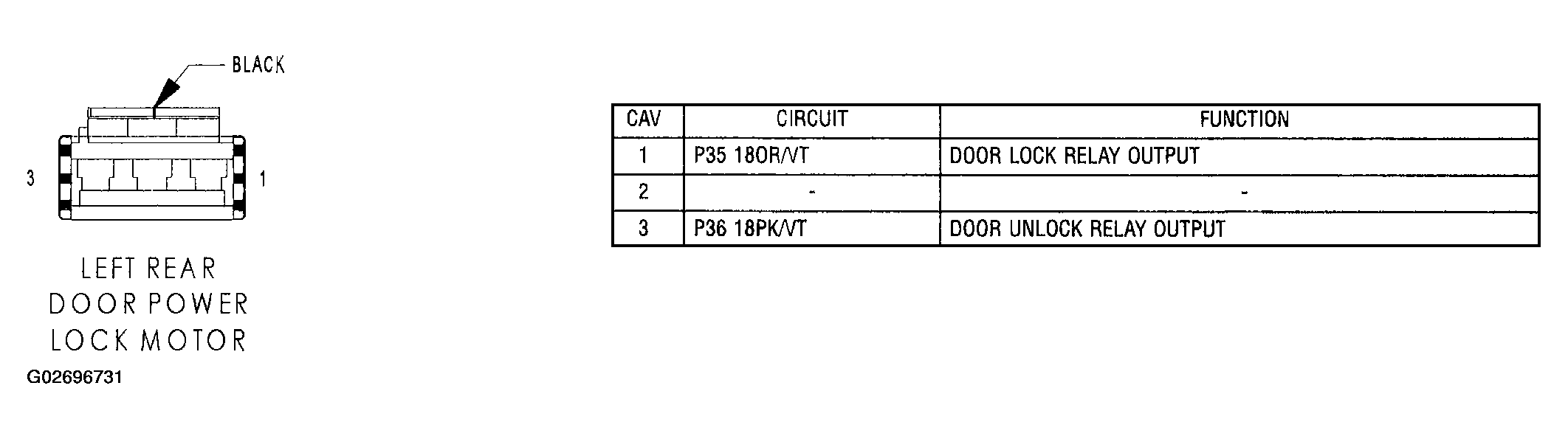

Fig 41: Identifying Left Rear Door Power Lock Motor Connector Pinouts

G02696731

Courtesy of DAIMLERCHRYSLER CORP.

Fig 42: Identifying Left Rear Speaker Connector Pinouts

G02696732

Courtesy of DAIMLERCHRYSLER CORP.

Fig 43: Identifying Liftgate Ajar Switch Connector Pinouts

G02696733

Courtesy of DAIMLERCHRYSLER CORP.

Fig 44: Identifying Liftgate Cylinder Lock Switch Connector Pinouts

G02696734

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: Identifying Liftgate Power Lock Motor Connector Pinouts

G02696735

Courtesy of DAIMLERCHRYSLER CORP.

Fig 46: Identifying Low Note Horn Connector Pinouts

G02696736

Courtesy of DAIMLERCHRYSLER CORP.

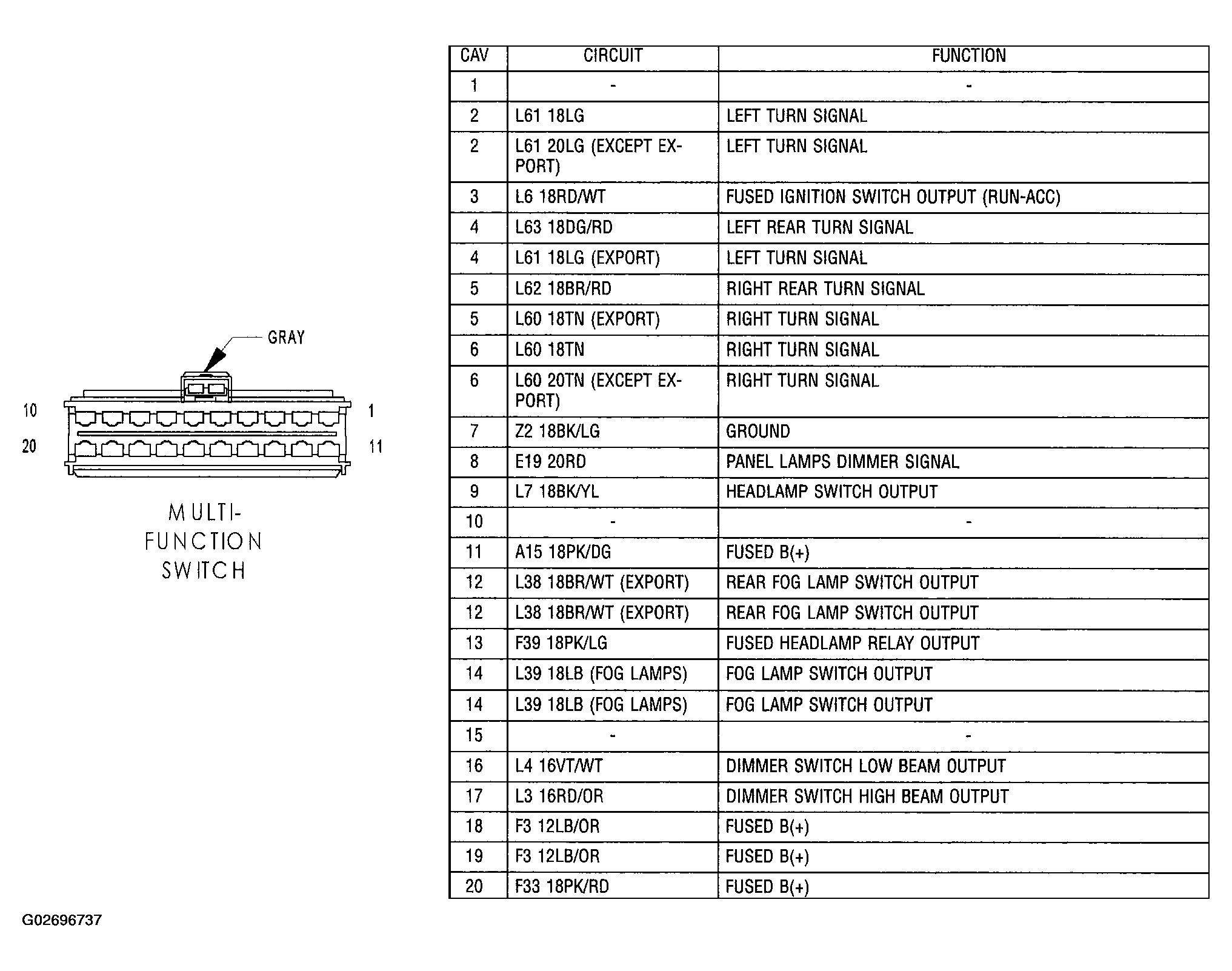

Fig 47: Identifying Multi-Function Switch Connector Pinouts

G02696737

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: Identifying Overhead Console Module Connector Pinouts

G02696738

Courtesy of DAIMLERCHRYSLER CORP.

Fig 49: Identifying Passenger Airbag Squib 1 Connector Pinouts

G02696739

Courtesy of DAIMLERCHRYSLER CORP.

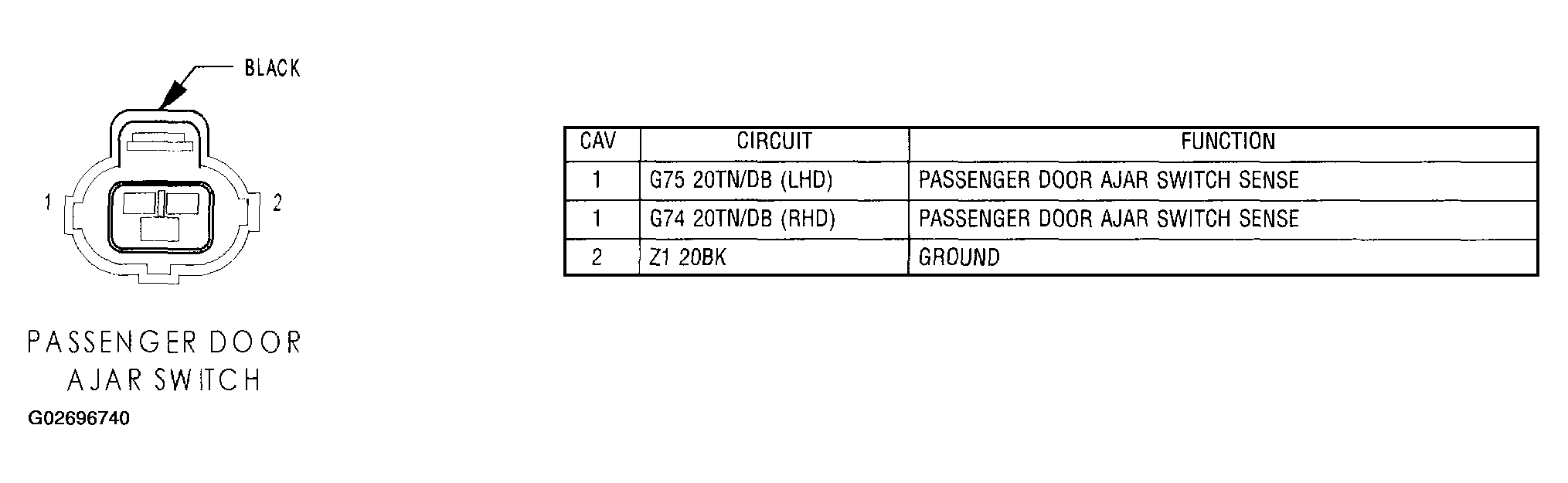

Fig 50: Identifying Passenger Door Ajar Switch Connector Pinouts

G02696740

Courtesy of DAIMLERCHRYSLER CORP.

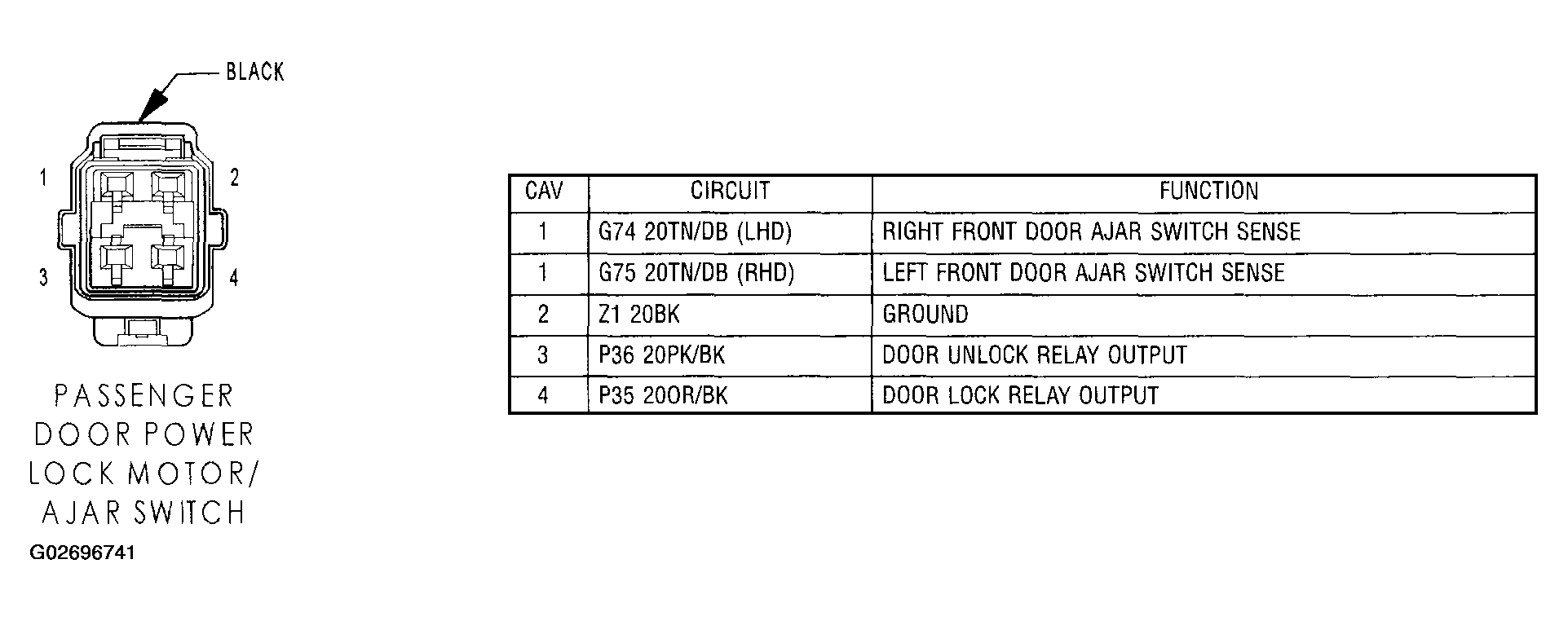

Fig 51: Identifying Passenger Door Power Lock Motor/Ajar Switch Connector Pinouts

G02696741

Courtesy of DAIMLERCHRYSLER CORP.

Fig 52: Identifying Passenger Seat Airbag Squib Connector Pinouts

G02696742

Courtesy of DAIMLERCHRYSLER CORP.

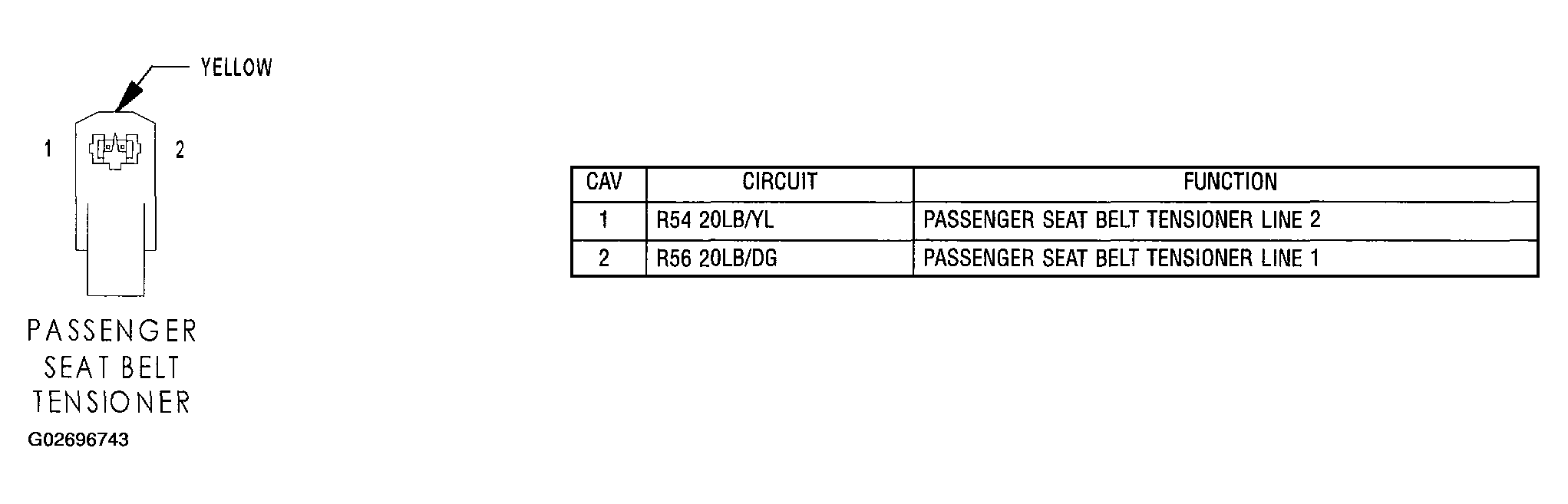

Fig 53: Identifying Passenger Seat Belt Tensioner Connector Pinouts

G02696743

Courtesy of DAIMLERCHRYSLER CORP.

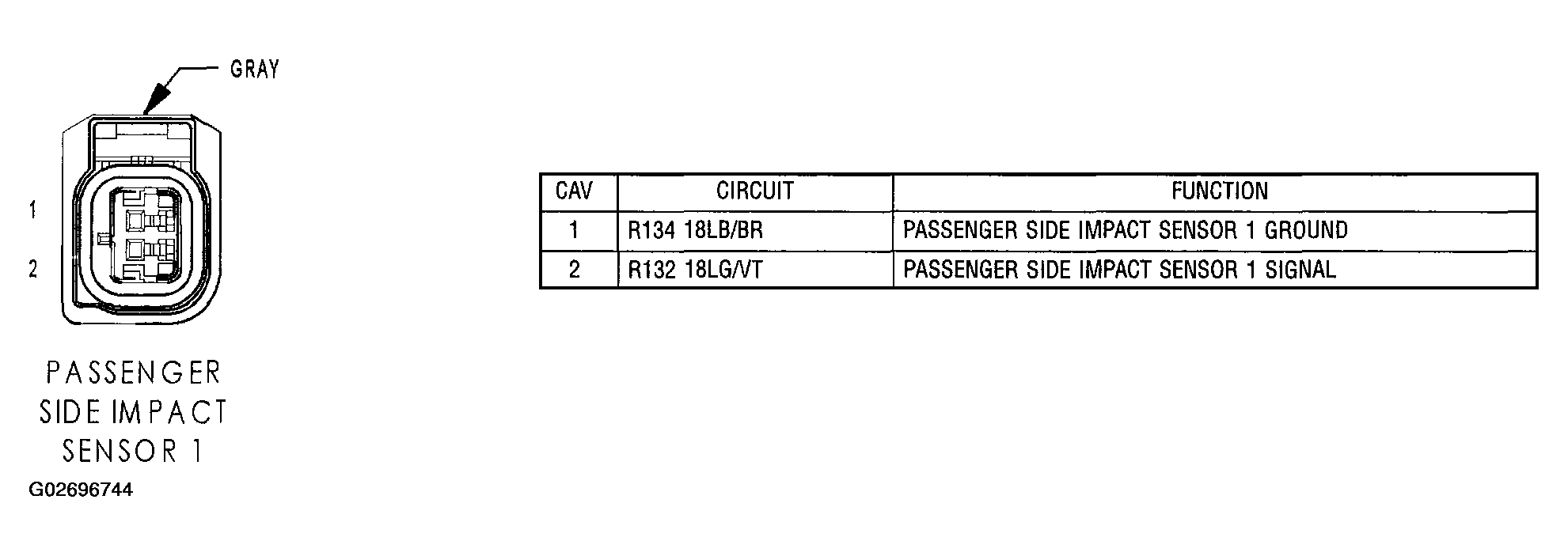

Fig 54: Identifying Passenger Side Impact Sensor 1 Connector Pinouts

G02696744

Courtesy of DAIMLERCHRYSLER CORP.

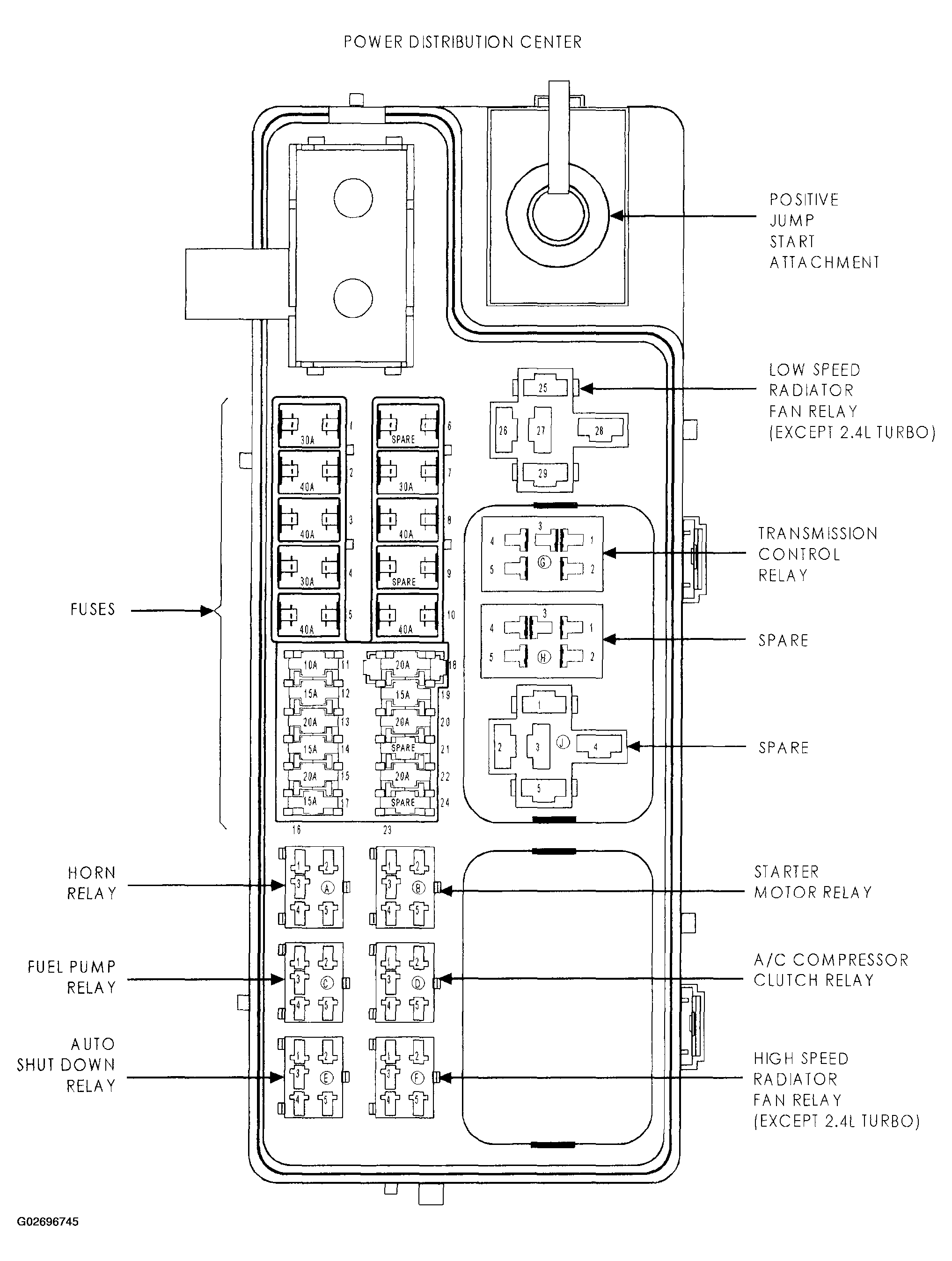

Fig 55: Identifying Power Distribution Center

G02696745

Courtesy of DAIMLERCHRYSLER CORP.

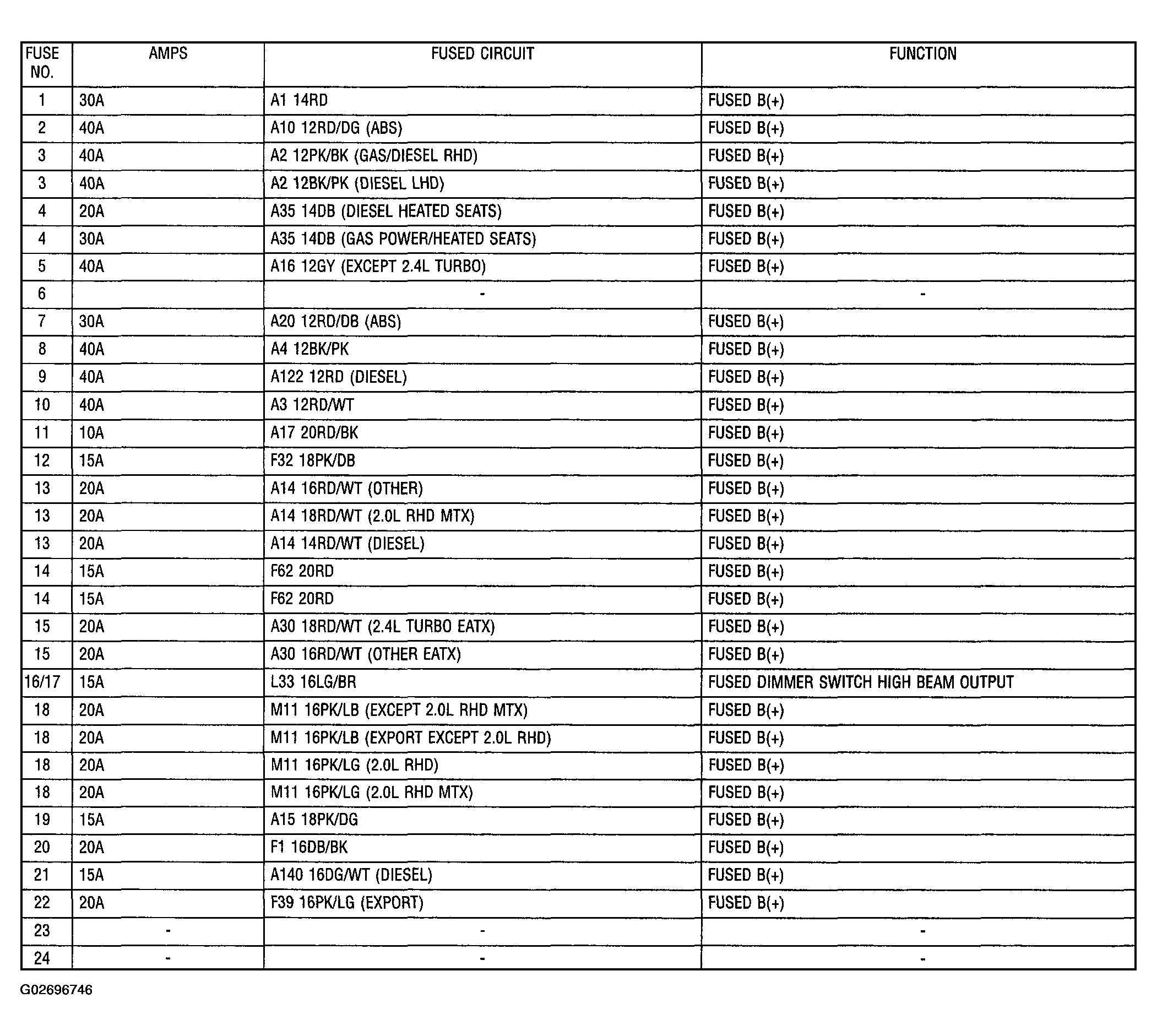

Fig 56: Fuses (PDC) Circuit Function Chart

G02696746

Courtesy of DAIMLERCHRYSLER CORP.

Fig 57: Horn Relay Circuit Function Chart

G02696747

Courtesy of DAIMLERCHRYSLER CORP.

Fig 58: Identifying Powertrain Control Module (1.6L) Connector Pinouts

G02696748

Courtesy of DAIMLERCHRYSLER CORP.

Fig 59: Identifying Powertrain Control Module C1 (NGC) Connector Pinouts

G02696749

Courtesy of DAIMLERCHRYSLER CORP.

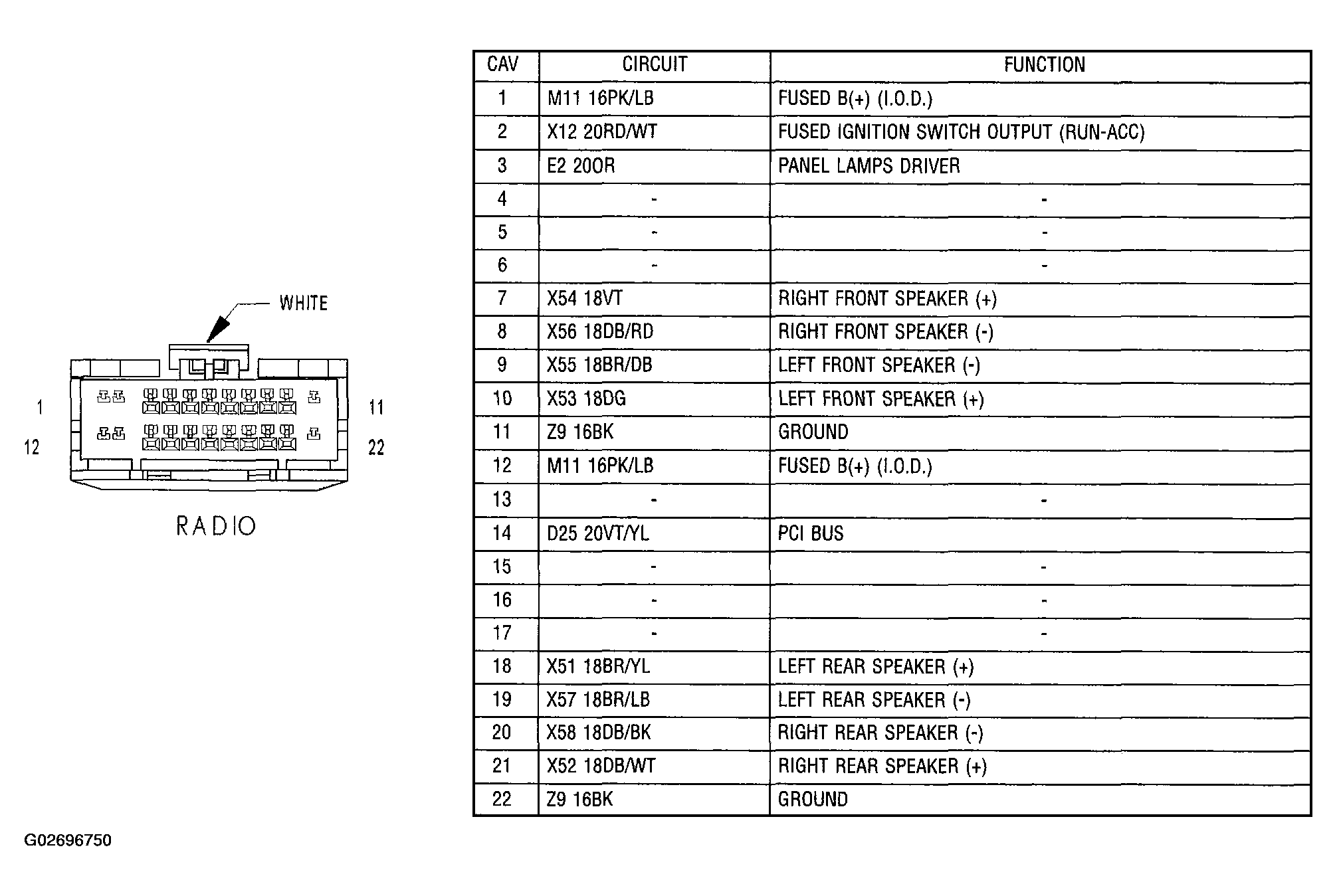

Fig 60: Identifying Radio Connector Pinouts

G02696750

Courtesy of DAIMLERCHRYSLER CORP.

Fig 61: Identifying Remote Keyless Entry Antenna (JAPAN) Connector Pinouts

G02696751

Courtesy of DAIMLERCHRYSLER CORP.

Fig 62: Identifying Remote Keyless Entry Module Connector Pinouts

G02696752

Courtesy of DAIMLERCHRYSLER CORP.

Fig 63: Identifying Right Cylinder Lock Switch (Export) Connector Pinouts

G02696753

Courtesy of DAIMLERCHRYSLER CORP.

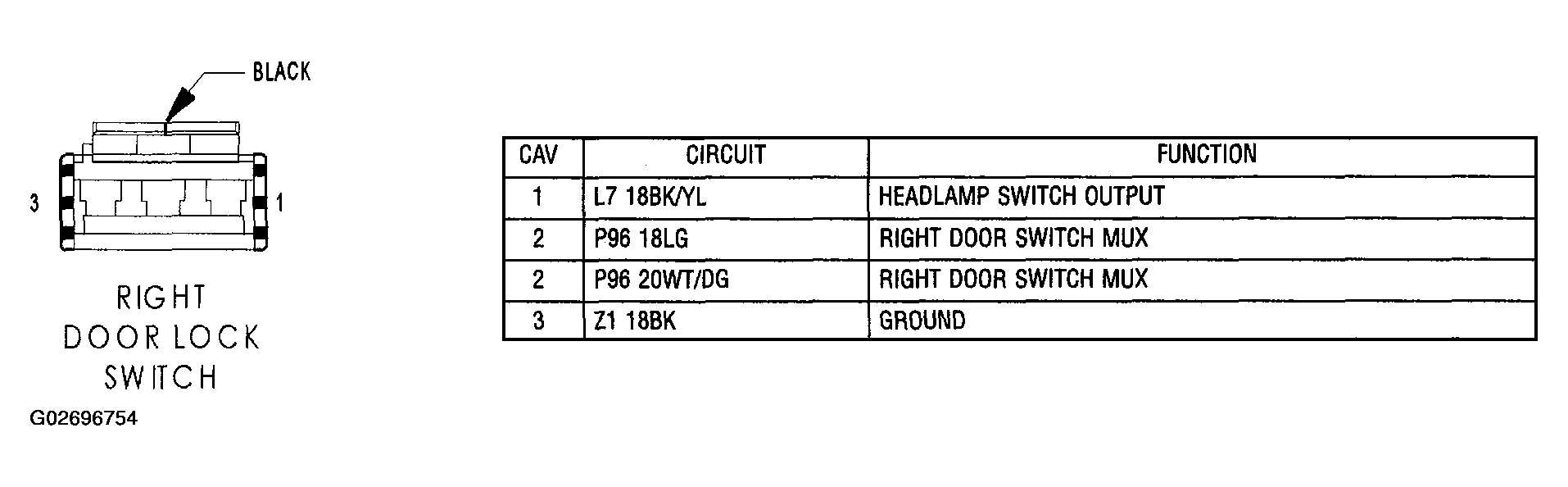

Fig 64: Identifying Right Door Lock Switch Connector Pinouts

G02696754

Courtesy of DAIMLERCHRYSLER CORP.

Fig 65: Identifying Right Front Door Speaker Connector Pinouts

G02696755

Courtesy of DAIMLERCHRYSLER CORP.

Fig 66: Identifying Right Instrument Panel Speaker Connector Pinouts

G02696756

Courtesy of DAIMLERCHRYSLER CORP.

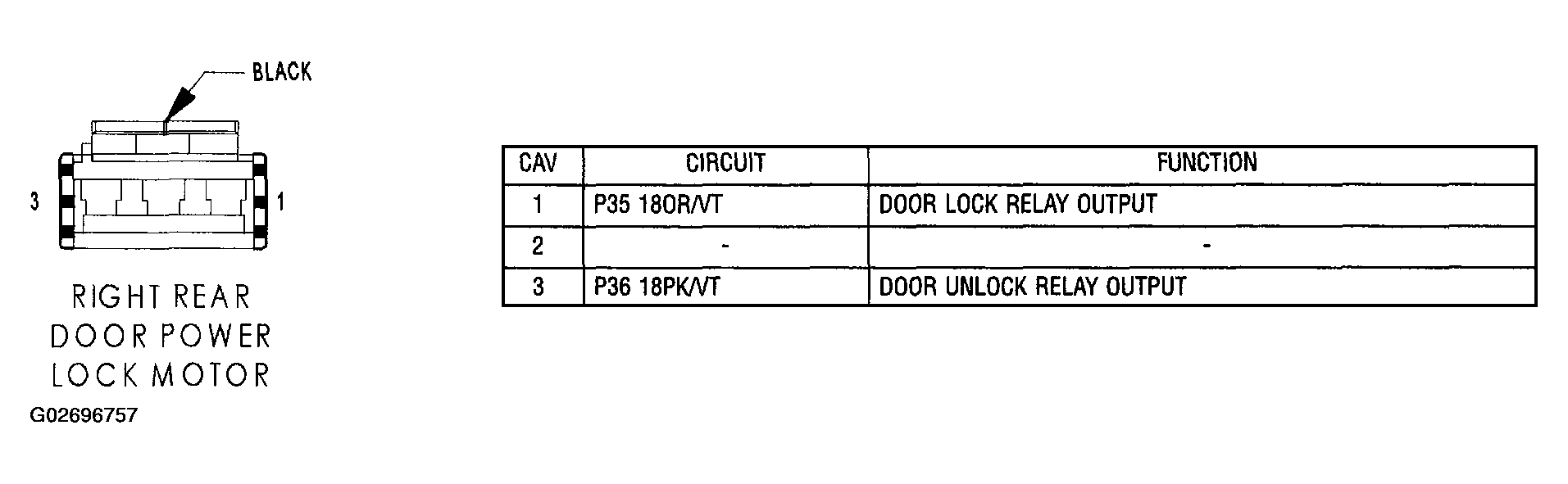

Fig 67: Identifying Right Rear Door Power Lock Motor Connector Pinouts

G02696757

Courtesy of DAIMLERCHRYSLER CORP.

Fig 68: Identifying Right Rear Speaker Connector Pinouts

G02696758

Courtesy of DAIMLERCHRYSLER CORP.

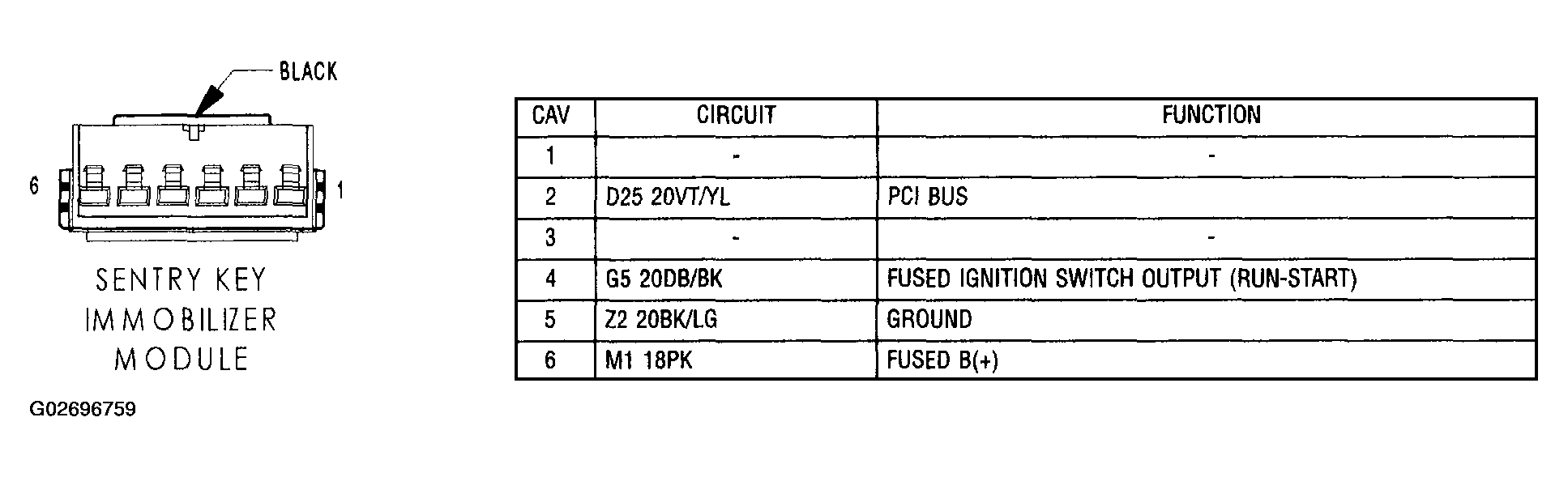

Fig 69: Identifying Sentry Key Immobilizer Module Connector Pinouts

G02696759

Courtesy of DAIMLERCHRYSLER CORP.

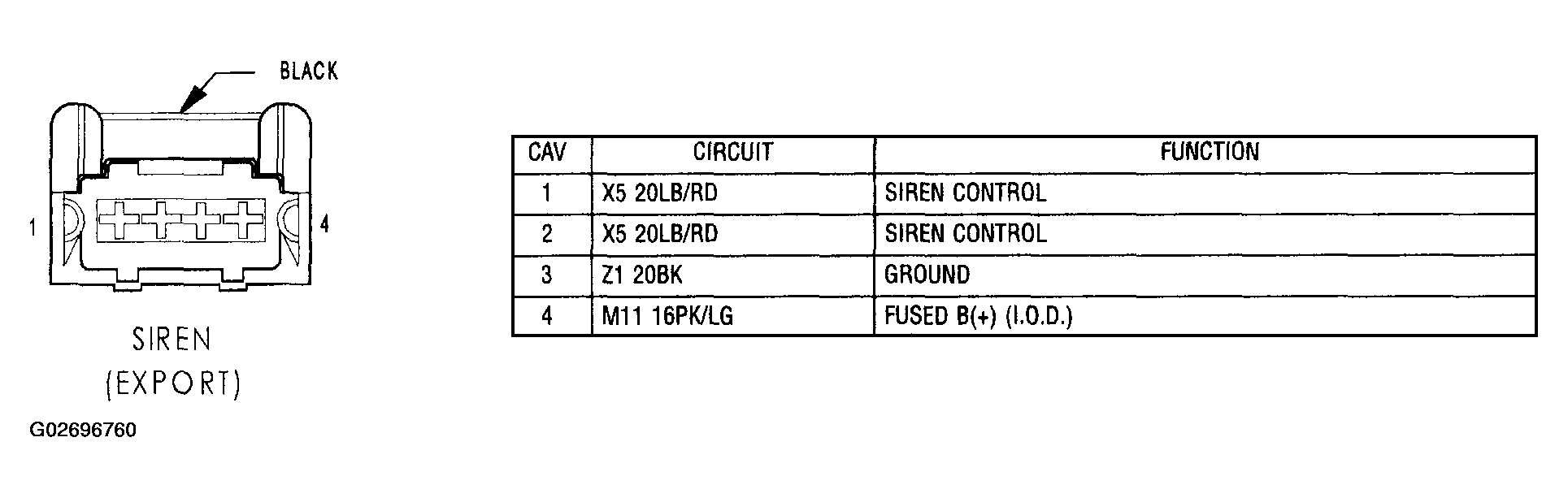

Fig 70: Identifying Siren (Export) Connector Pinouts

G02696760
