Electronic Control Module: Removal
- Remove sunroof module assembly (Refer to SUNROOF MODULE ASSEMBLY
).
- Cut wire retaining tape near motor being careful not to cut wires.
- Disconnect drive motor's wire harness.

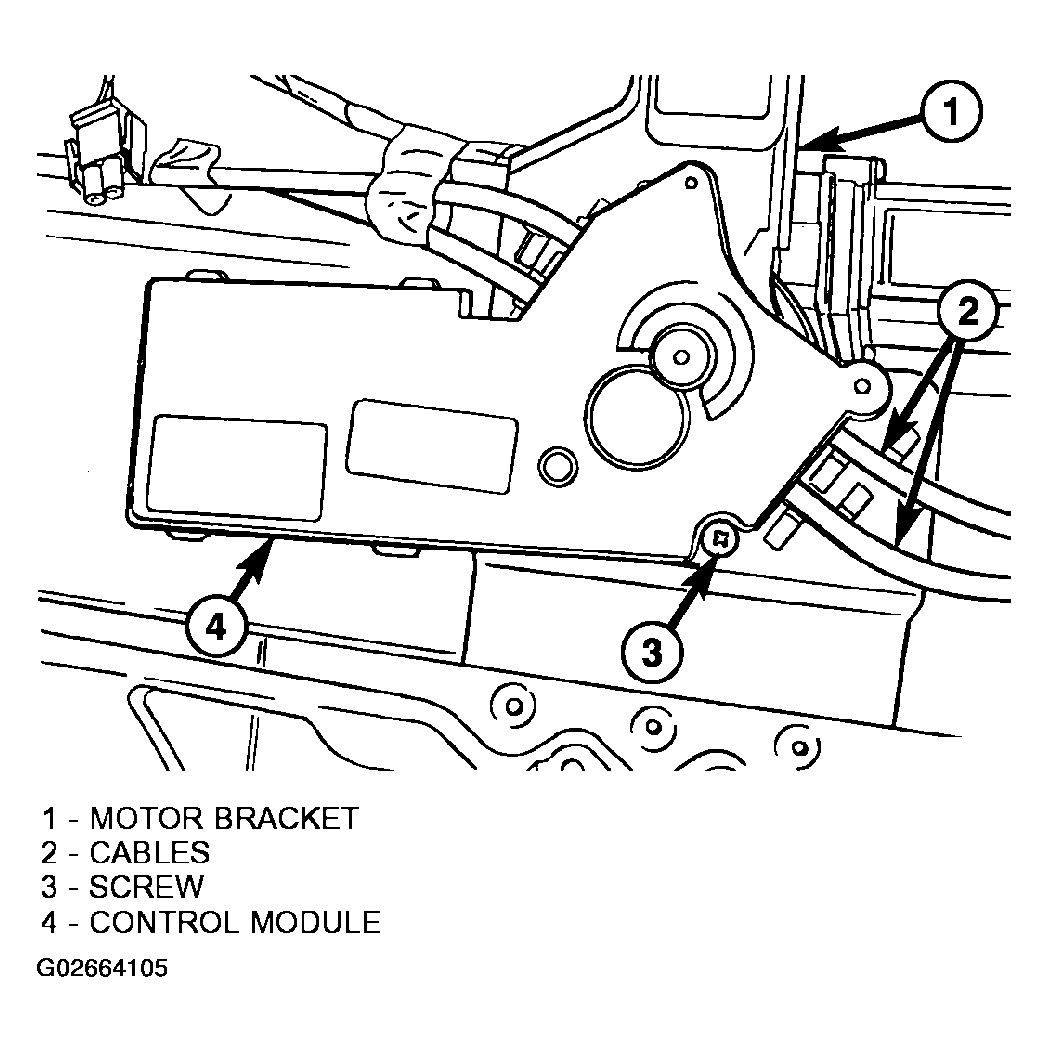

- Remove three motor assembly retaining screws from bottom side of motor, and remove motor assembly (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- From top side of module assembly, remove one attaching screw from control module.
- Disconnect the two wire connectors from electronic control module assembly.
- Remove control module.
