Schematic Diagrams

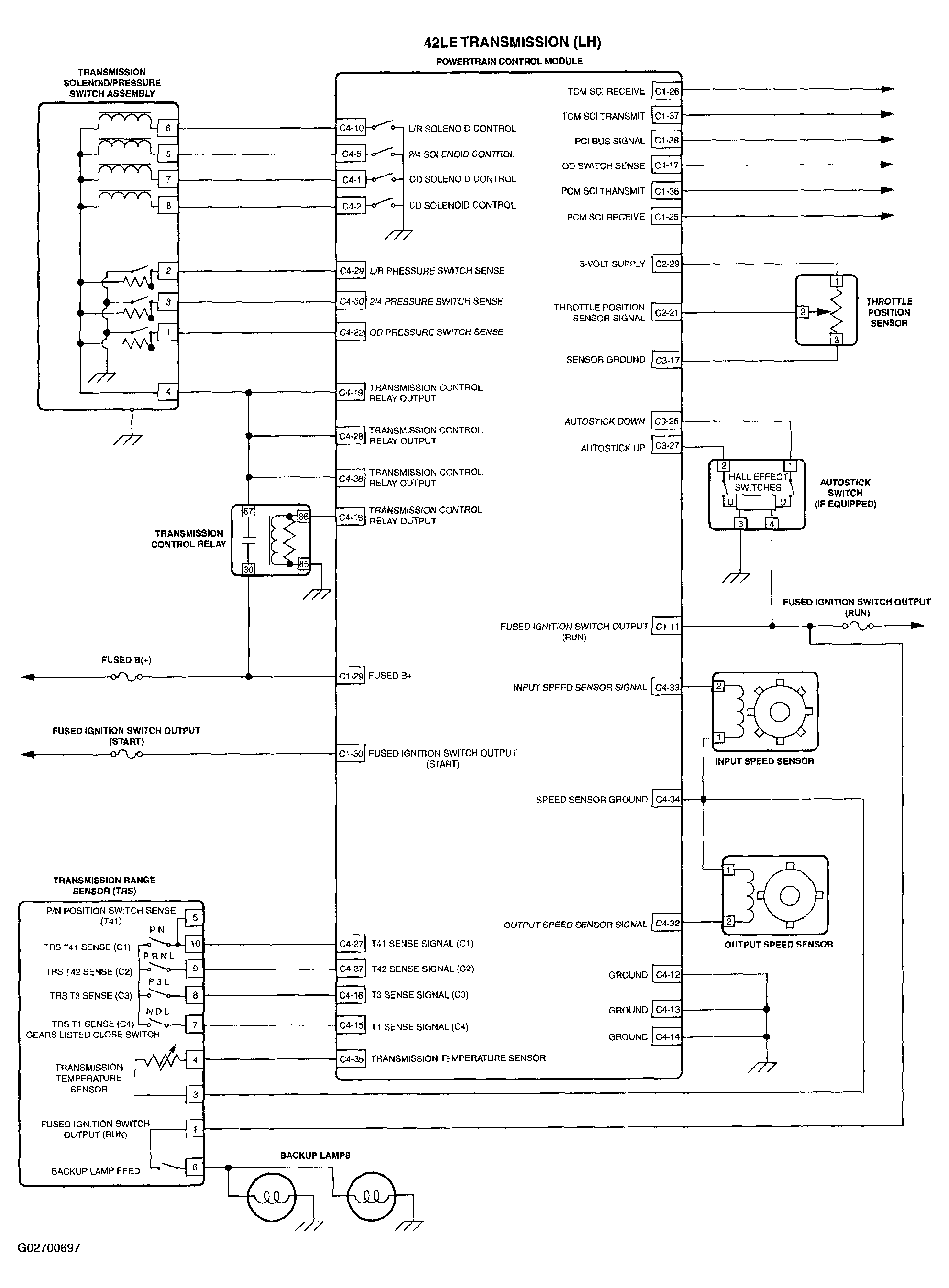

Fig 1: Schematic Diagrams - Powertrain Control Module (42LE Transmission - LH)

G02700697

Courtesy of DAIMLERCHRYSLER CORP.
