DECKLID Release

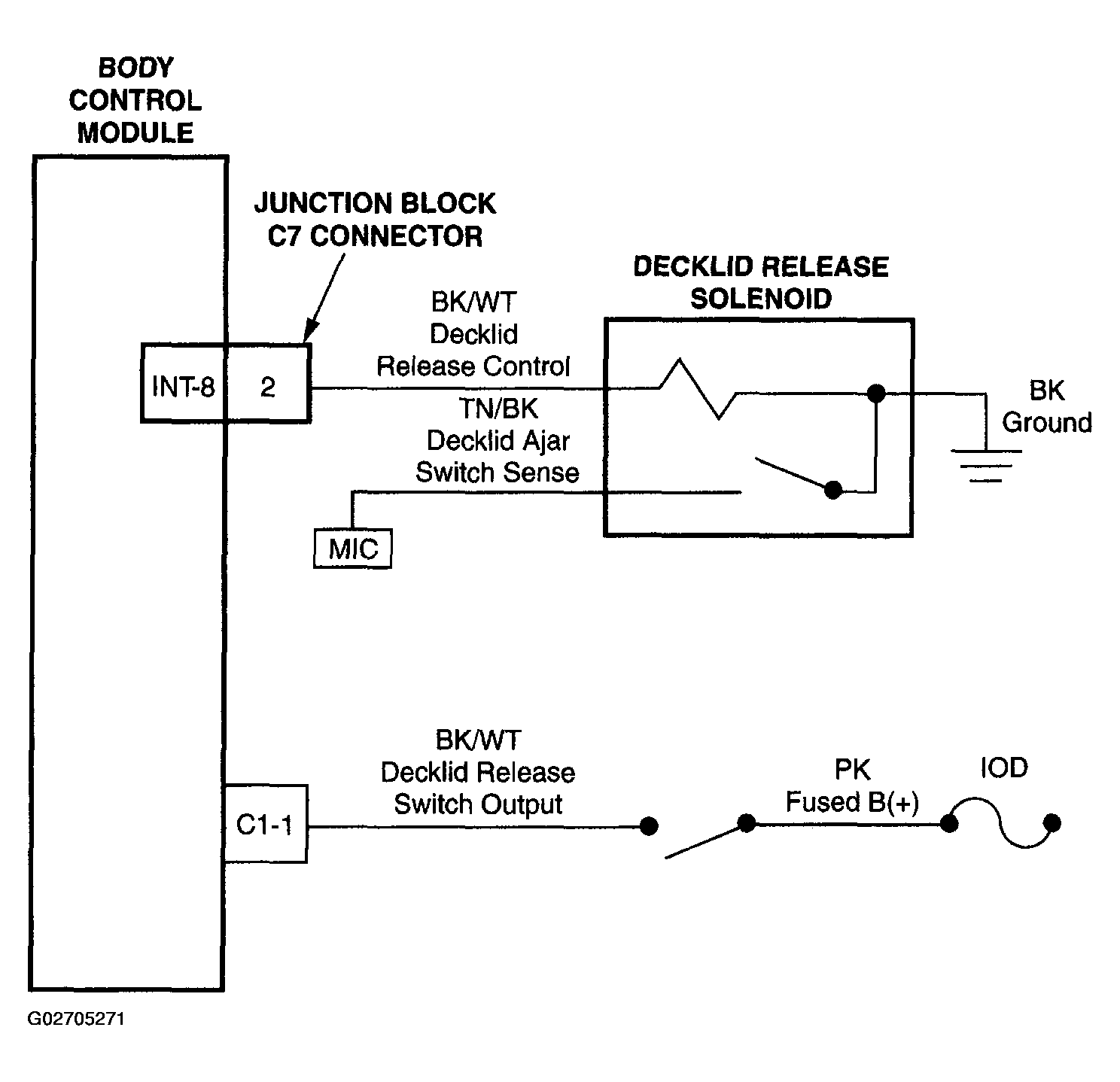

Fig 1: Schematic Diagrams - Decklid Release
G02705271Courtesy of DAIMLERCHRYSLER CORP.
