Exterior Lighting

Fig 1: Schematic Diagrams - Exterior Lighting (1 Of 2)

G02705262

Courtesy of DAIMLERCHRYSLER CORP.

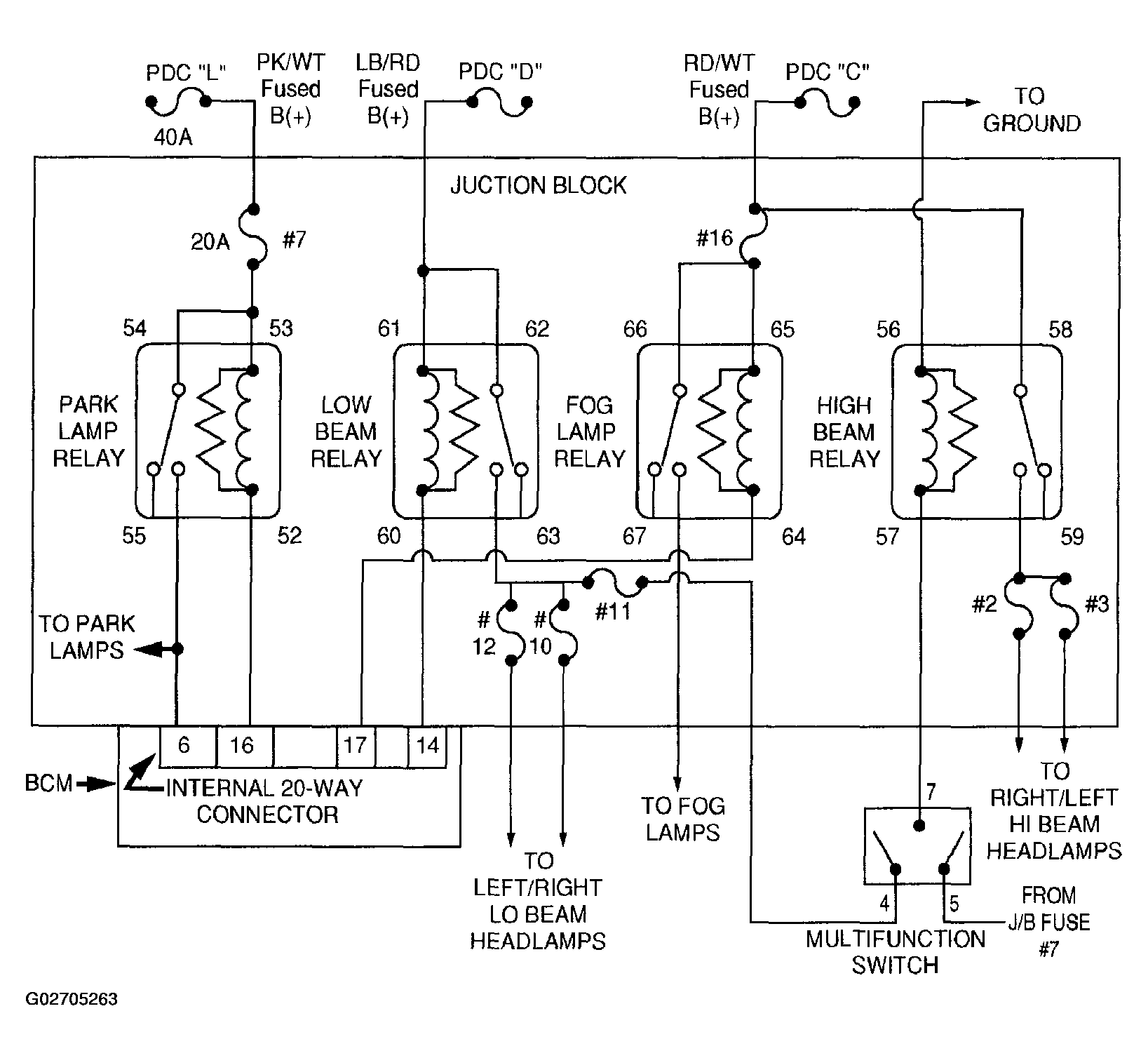

Fig 2: Schematic Diagrams - Exterior Lighting (2 Of 2)

G02705263

Courtesy of DAIMLERCHRYSLER CORP.
