Turn Signal Switch / Hazard Switch Connector End View

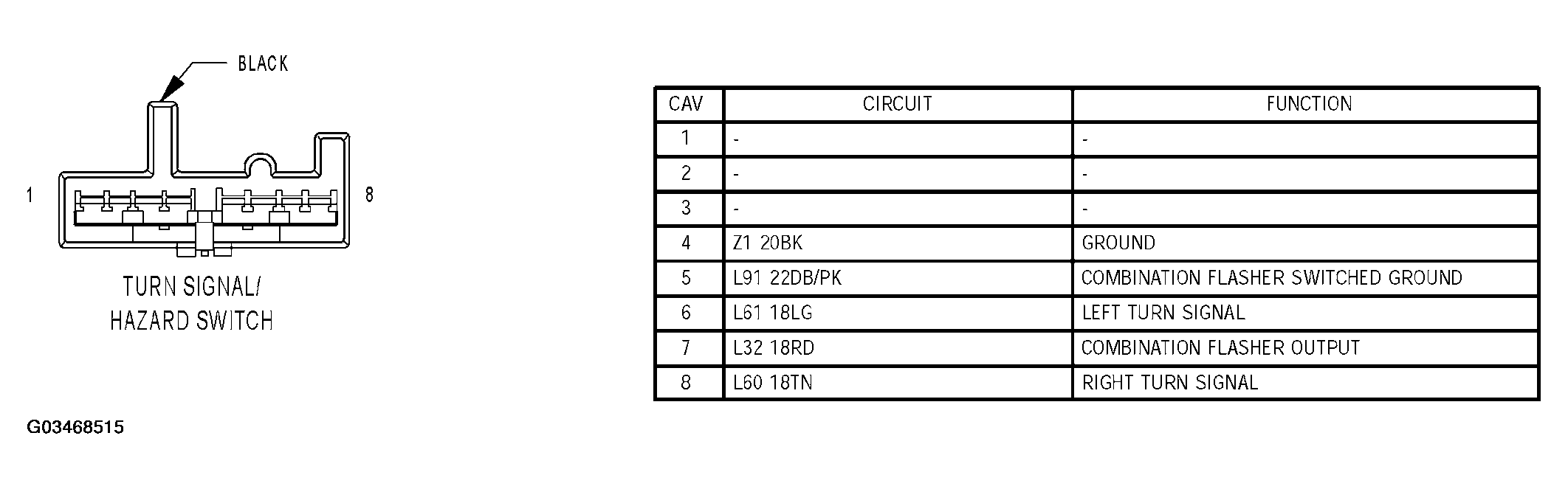

Fig 1: Turn Signal Switch / Hazard Switch Connector End View

G03468515

Courtesy of DAIMLERCHRYSLER CORP.
