Throttle Position Sensor (3.5L) Connector End View

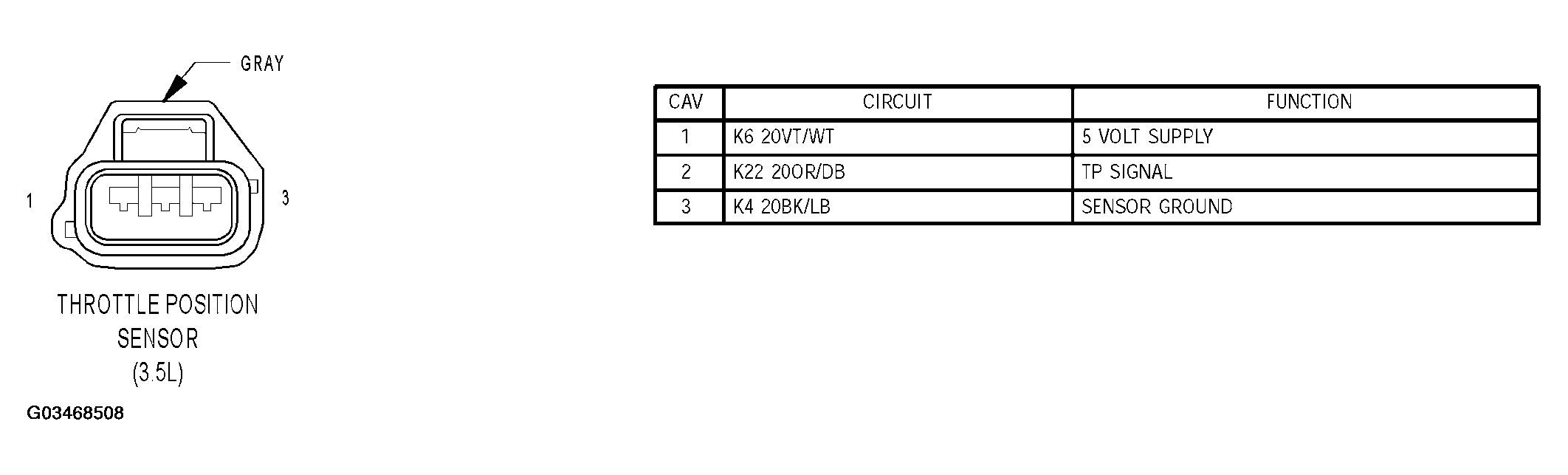

Fig 1: Throttle Position Sensor (3.5L) Connector End View

G03468508

Courtesy of DAIMLERCHRYSLER CORP.
