Right Rear Wheel Speed Sensor Connector End View

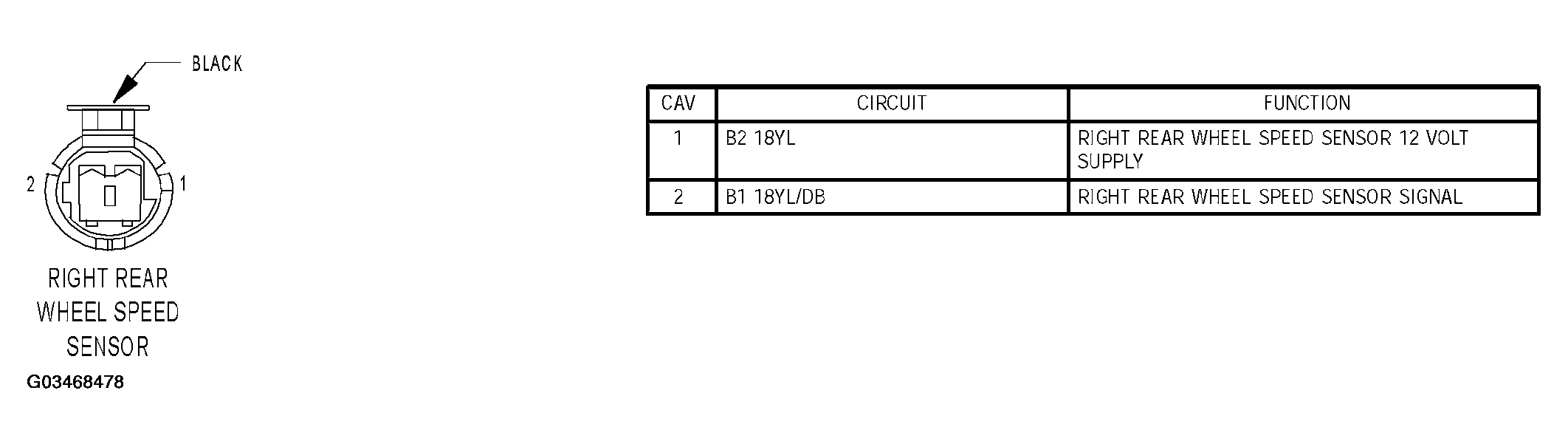

Fig 1: Right Rear Wheel Speed Sensor Connector End View

G03468478

Courtesy of DAIMLERCHRYSLER CORP.
