Passenger Power Mirror Connector End View

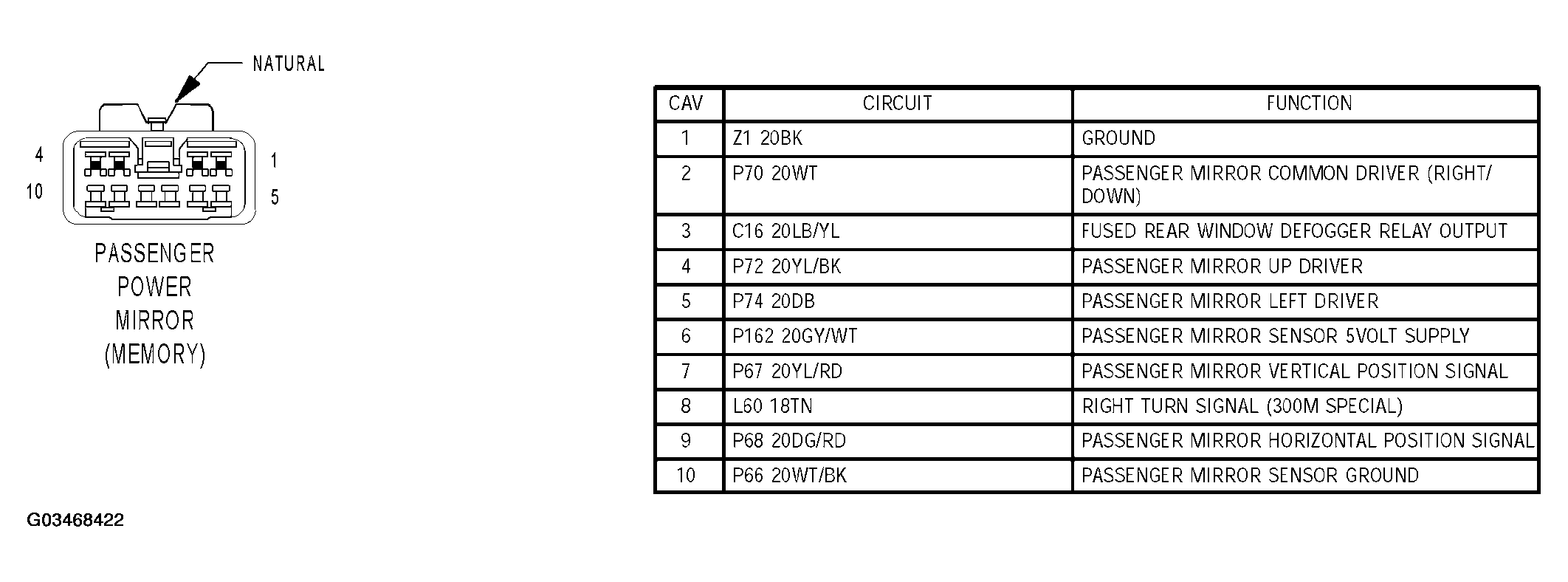

Fig 1: Passenger Power Mirror Connector End View

G03468422

Courtesy of DAIMLERCHRYSLER CORP.
