Manifold Absolute Pressure Sensor Connector End View

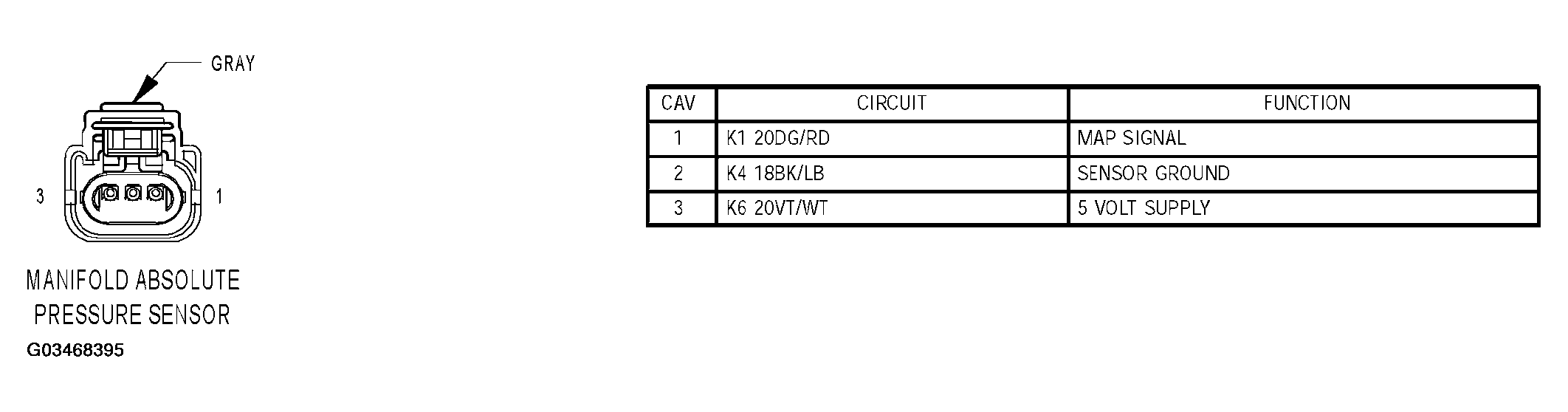

Fig 1: Manifold Absolute Pressure Sensor Connector End View
G03468395Courtesy of DAIMLERCHRYSLER CORP.
