Driver Power Seat Switch Connector End View

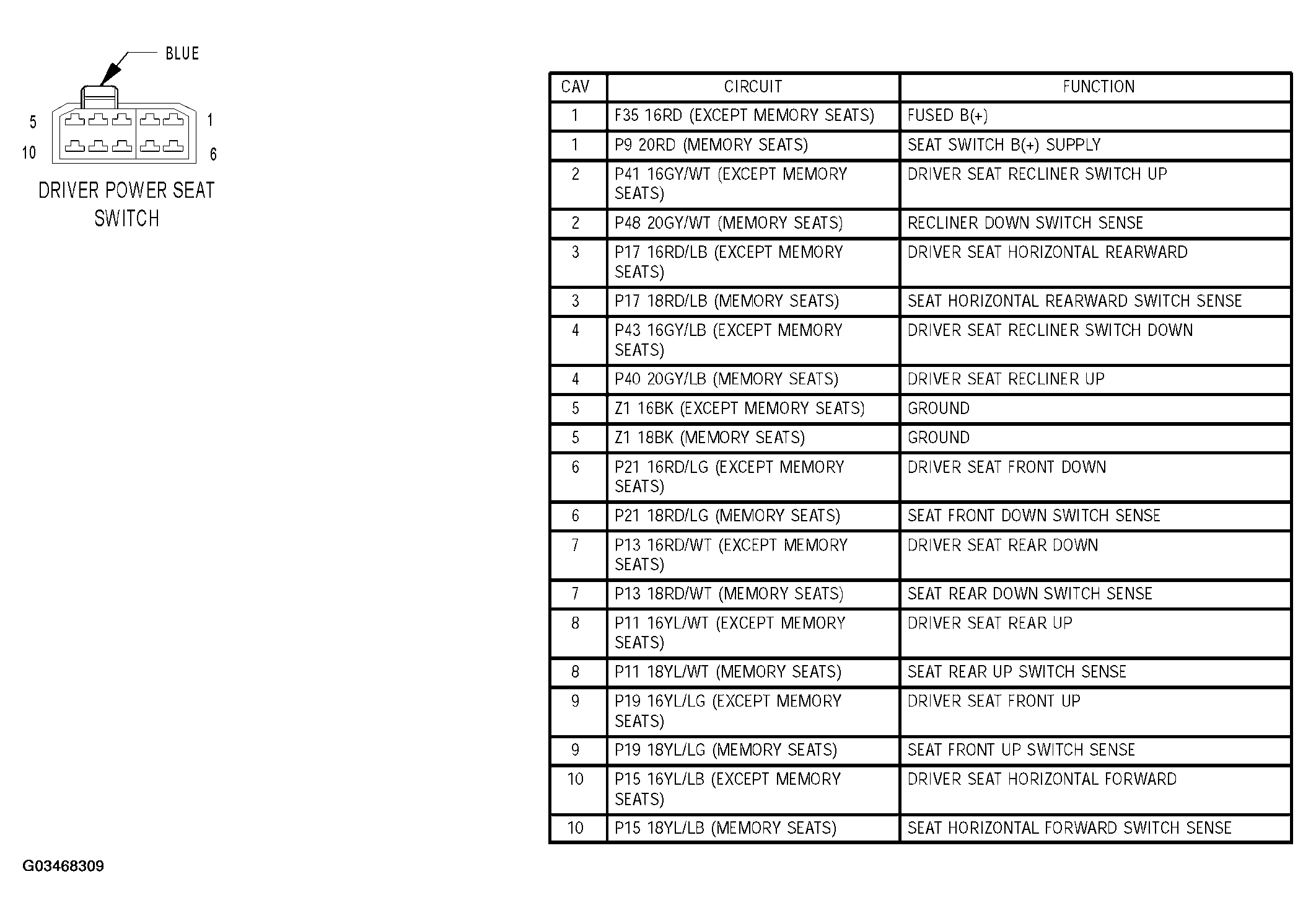

Fig 1: Driver Power Seat Switch Connector End View

G03468309

Courtesy of DAIMLERCHRYSLER CORP.
