Driver Power Mirror (Except Memory) Connector End View

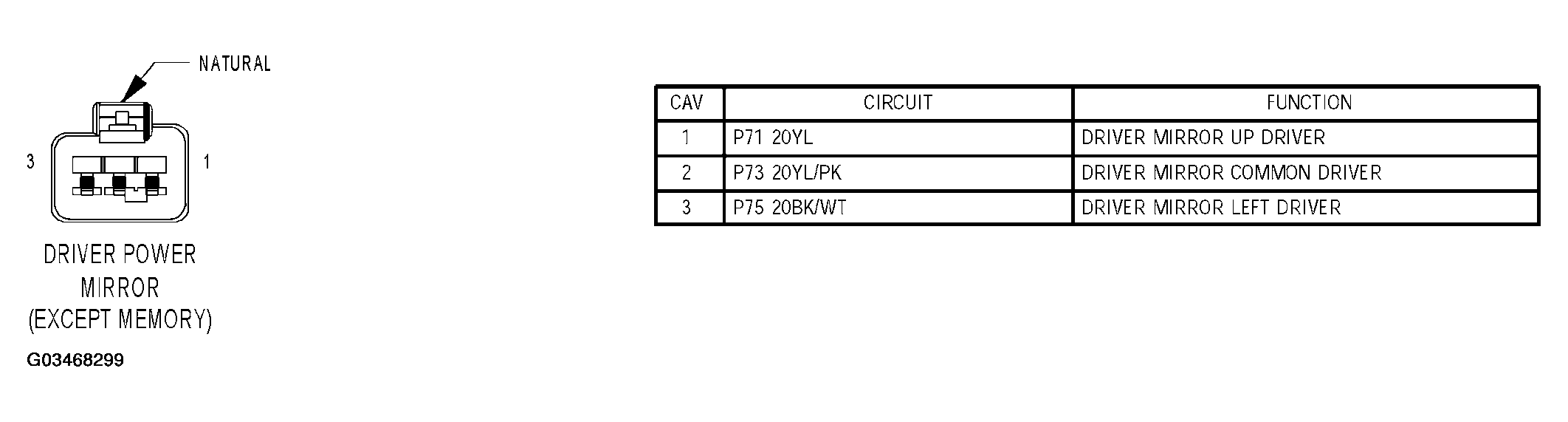

Fig 1: Driver Power Mirror (Except Memory) Connector End View

G03468299

Courtesy of DAIMLERCHRYSLER CORP.
