Compact Disc Changer (Midline/Premium) Connector End View

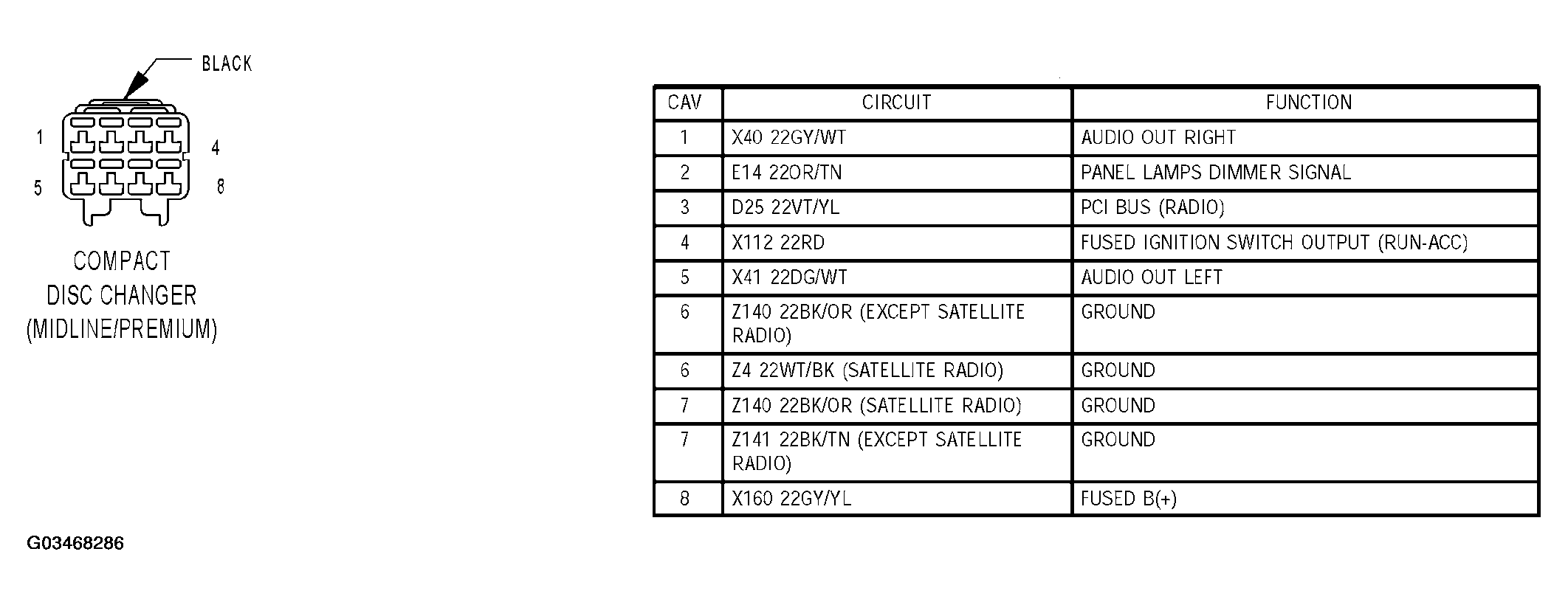

Fig 1: Compact Disc Changer (Midline/Premium) Connector End View

G03468286

Courtesy of DAIMLERCHRYSLER CORP.
