Vibration Damper: Removal

  1. Disconnect negative cable at right strut tower.
  2. Remove upper radiator crossmember.
  3. Remove radiator fan. (Refer to RADIATOR FAN ).
  4. Remove the accessory drive belts. (Refer to ACCESSORY DRIVE ).
  5. Use Special Tool 8191 to hold crankshaft damper while removing center bolt (Fig 1).
  6. Use Special Tool 1023 puller, and insert C-4685-C2, remove crankshaft damper (Fig 2).
    7. Fig 1: Removing Crankshaft Damper Center Bolt
    G02709803Courtesy of DAIMLERCHRYSLER CORP.

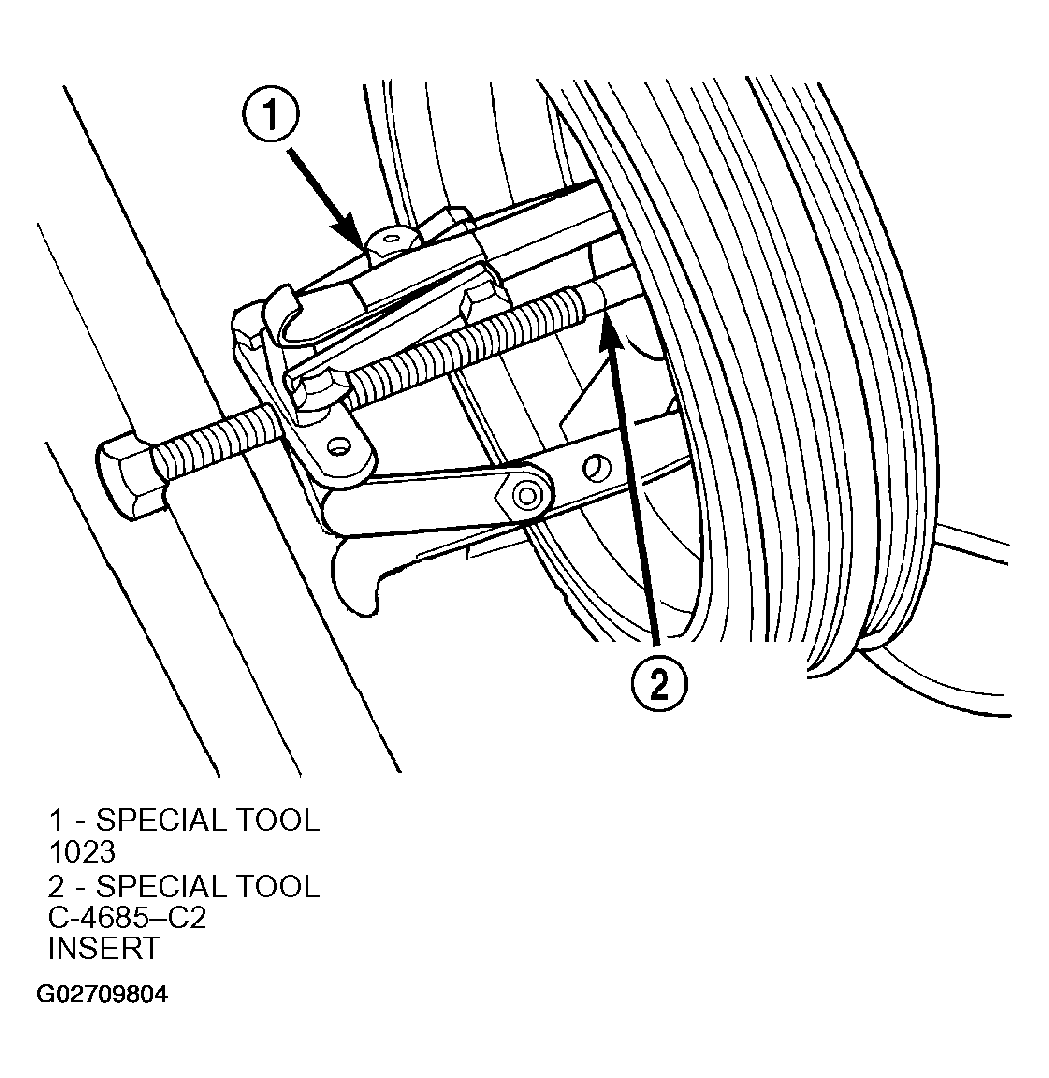

    Fig 2: Removing Crankshaft Damper
    G02709804Courtesy of DAIMLERCHRYSLER CORP.
