Home >> Chrysler >> 2003 >> Intrepid SXT >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> 3.5L >> Spark Plug Tube >> Removal

Spark Plug Tube: Removal

  1. Remove cylinder head cover(s). (Refer to REMOVAL )
  2. Using suitable locking pliers, remove the tube from the cylinder head (Fig 1) and discard tube.
  3. Clean area around spark plug with Mopar® Parts Cleaner or equivalent.

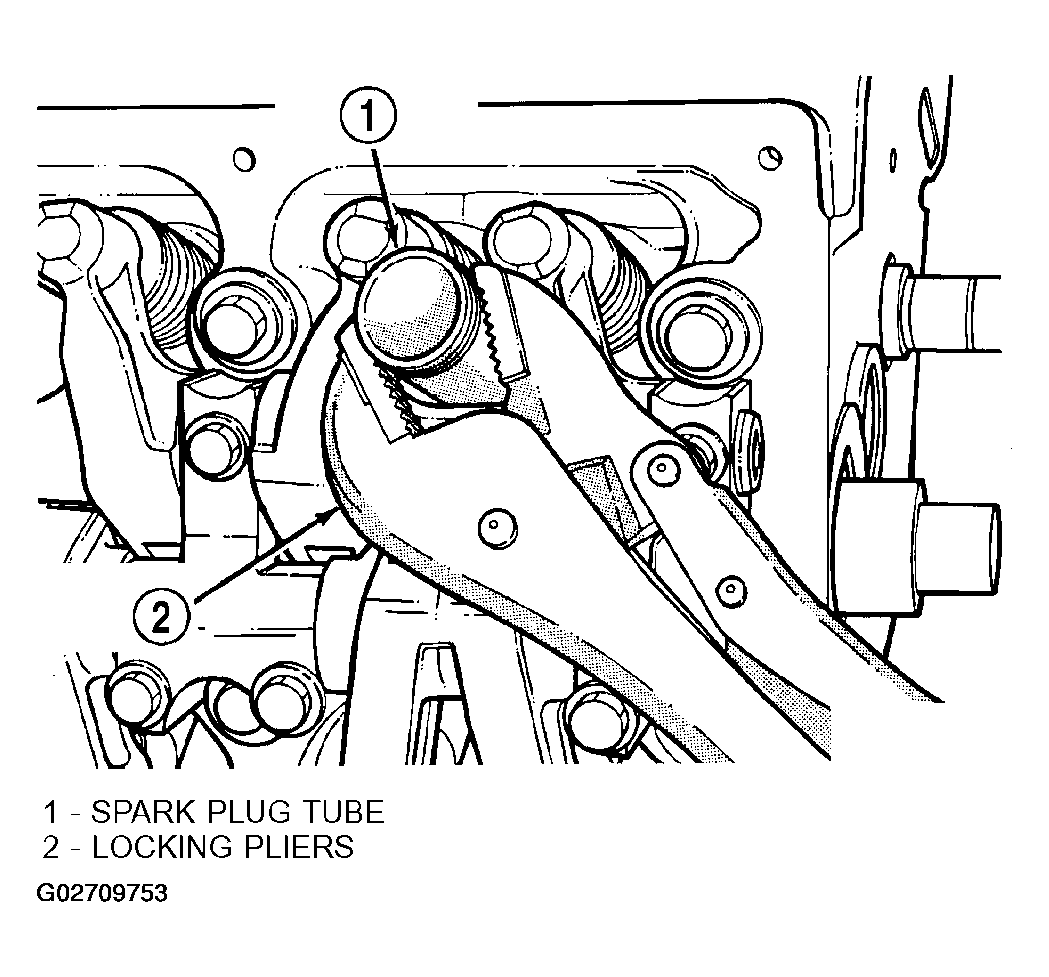

    Fig 1: Servicing Spark Plug Tubes
    G02709753Courtesy of DAIMLERCHRYSLER CORP.
