Piston Rings: Removal

  1. Remove piston and connecting rod. (Refer to REMOVAL ).
  2. Remove No. 1 and No. 2 piston rings from piston using a ring expander tool (Figure).

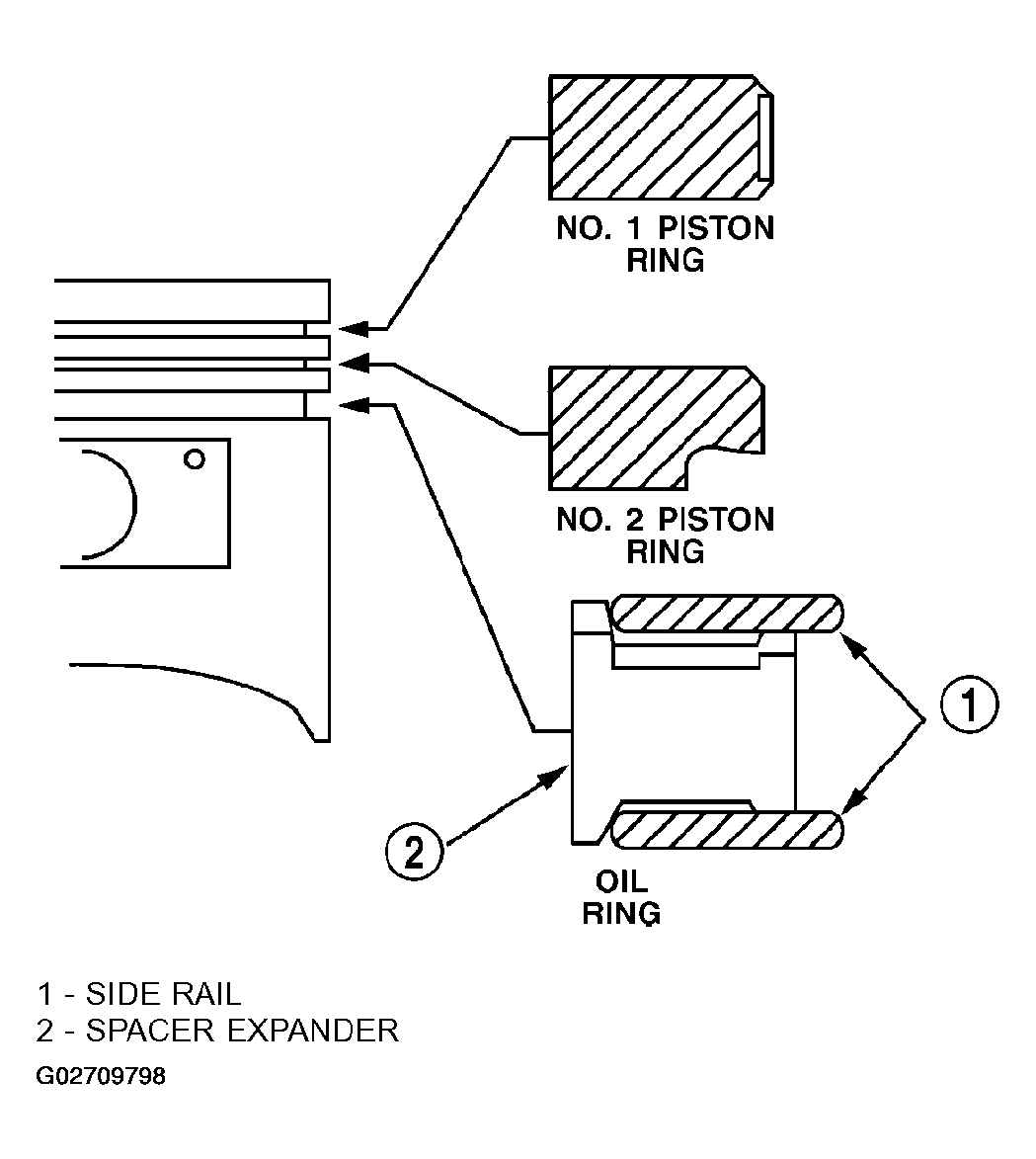

  3. Remove upper oil ring side rail (Figure).
  4. Remove lower oil ring side rail (Figure).
  5. Remove oil ring expander (Figure).
