Oil Pressure Switch: Removal

  1. Raise vehicle on hoist.
  2. Position an oil collecting container under switch location.
  3. Disconnect electrical connector (Fig 1).

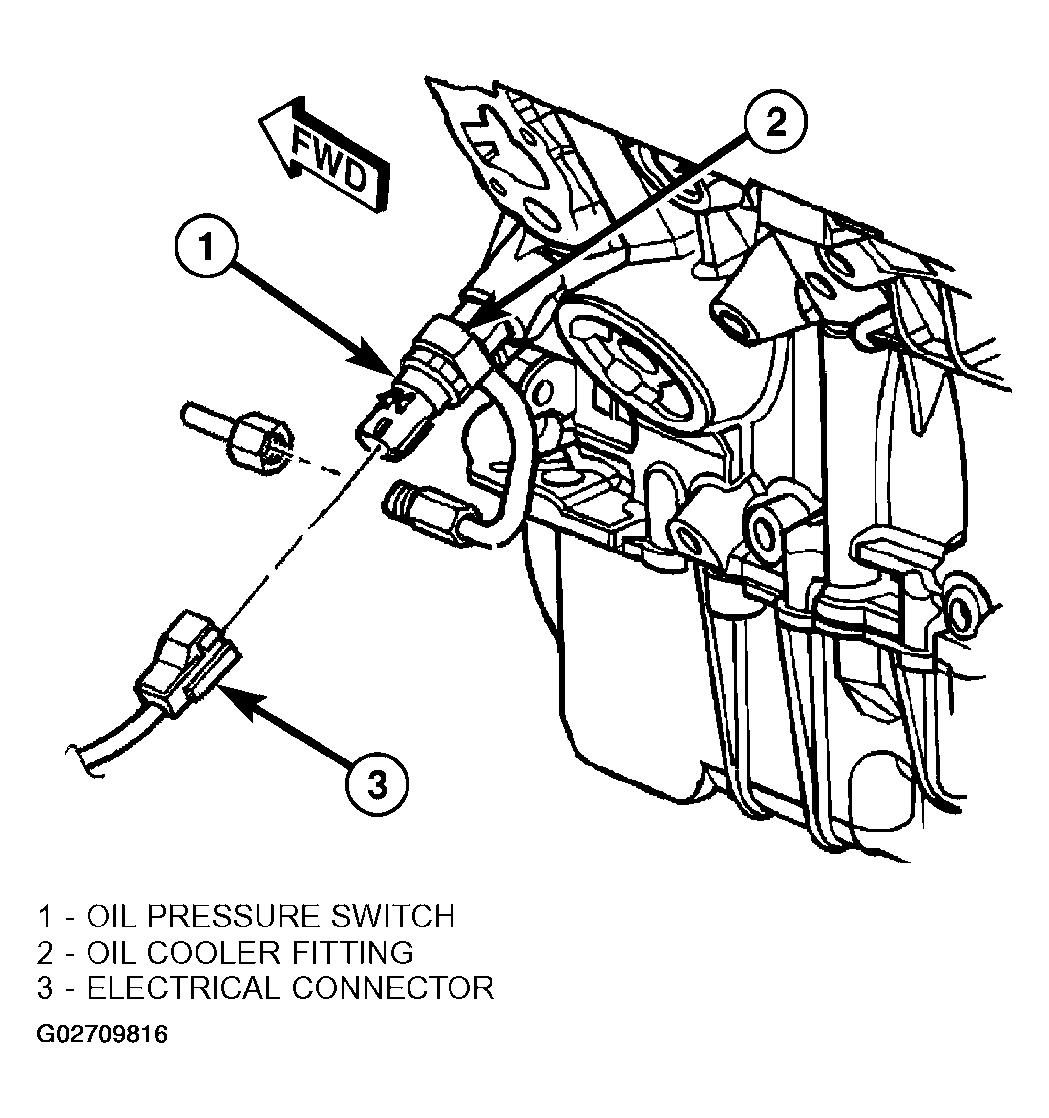

    Fig 1: Removing/Installing Oil Pressure Switch
    G02709816Courtesy of DAIMLERCHRYSLER CORP.
  4. Hold oil cooler fitting with a wrench.
  5. Unscrew oil pressure switch from fitting (Fig 1).
