Instrument Panel Side Inline Connector End View (C201)

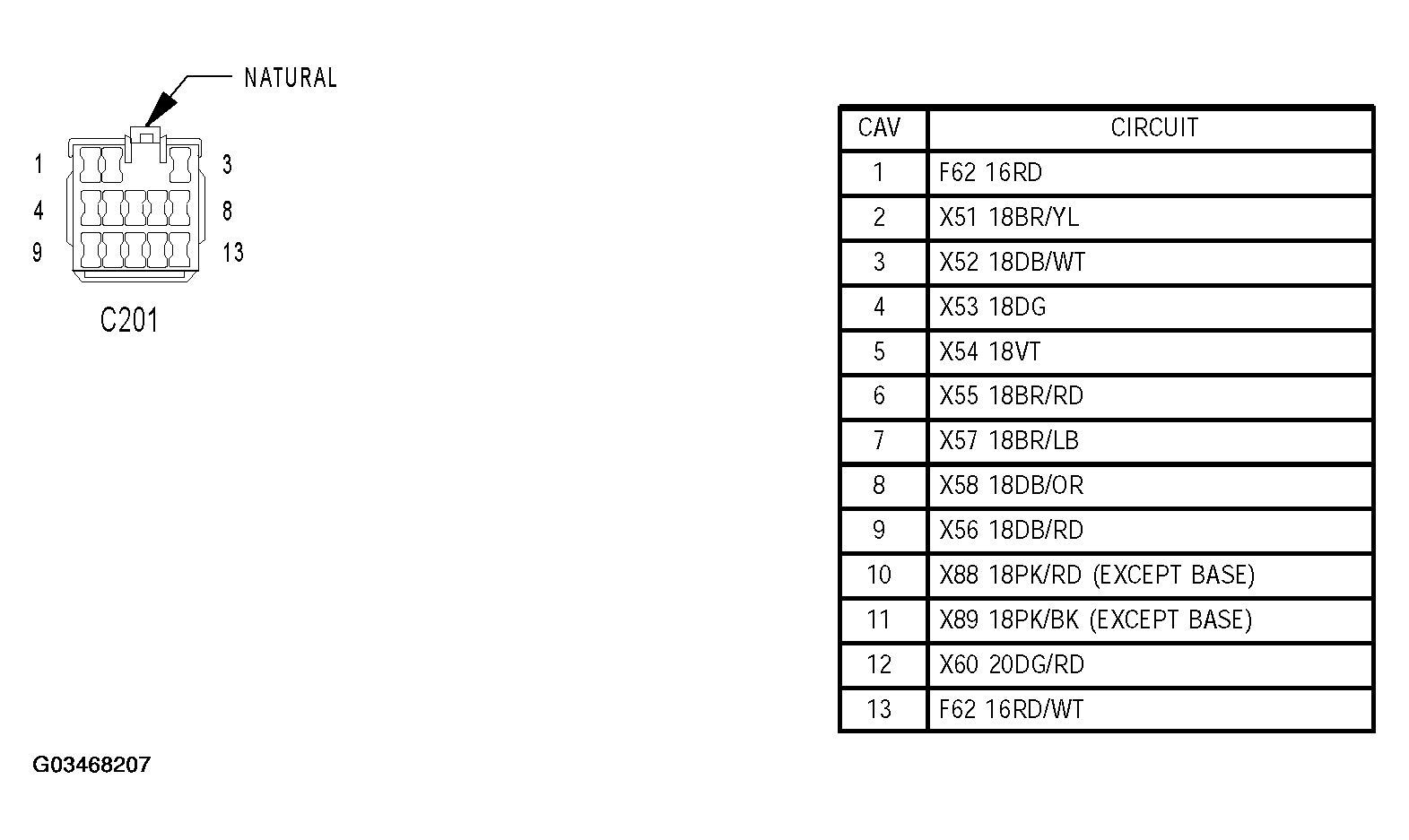

Fig 1: Instrument Panel Side Inline Connector End View (C201)

G03468207

Courtesy of DAIMLERCHRYSLER CORP.
