Natural Vacuum Leak Detection Assembly Connector End View

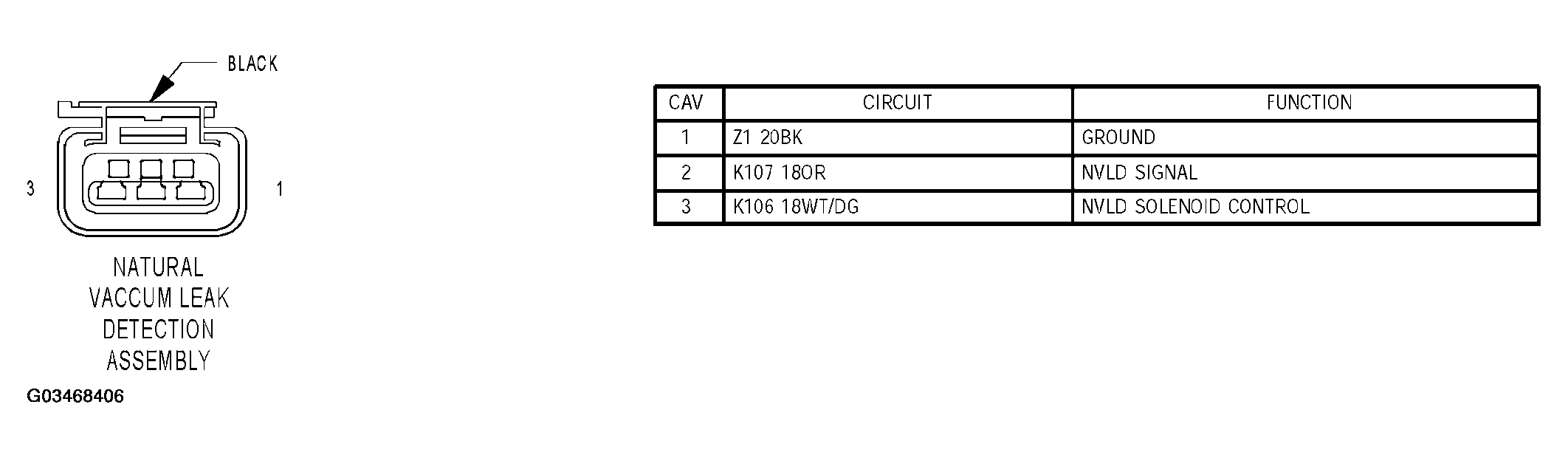

Fig 1: Natural Vacuum Leak Detection Assembly Connector End View

G03468406

Courtesy of DAIMLERCHRYSLER CORP.
