Manual Temperature Control Head Connector End View (C2)

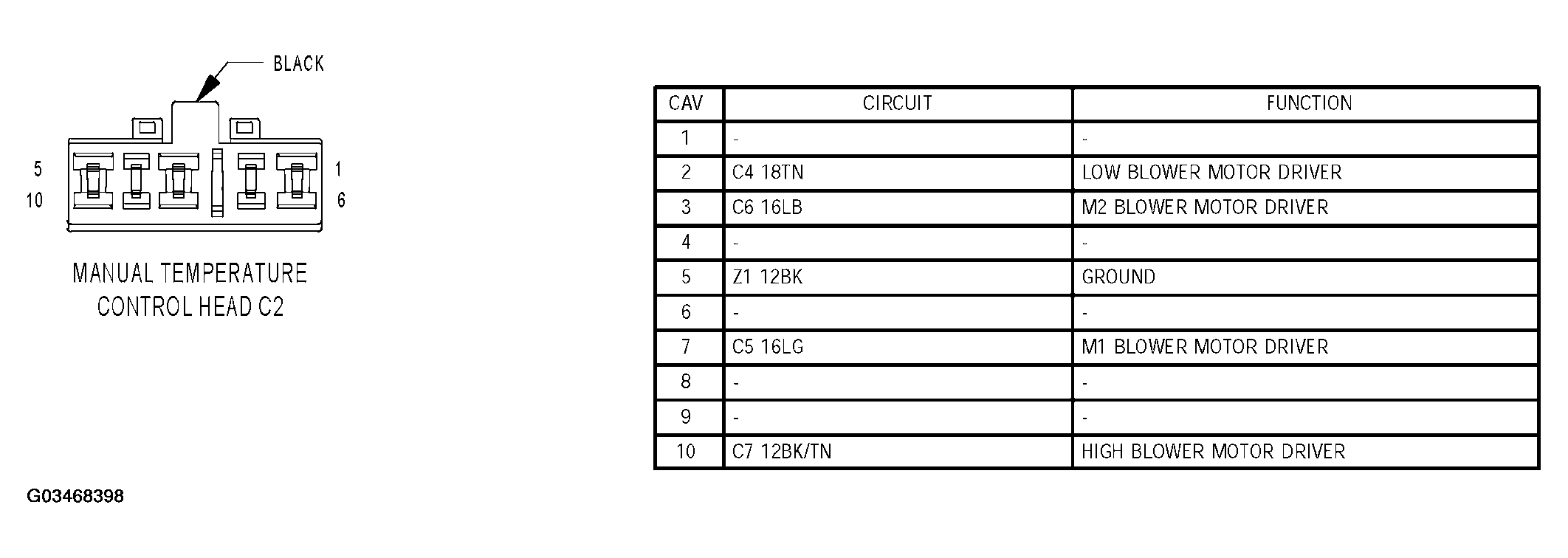

Fig 1: Manual Temperature Control Head Connector End View (C2)

G03468398

Courtesy of DAIMLERCHRYSLER CORP.
