Instrument Cluster Connector End View (C2)

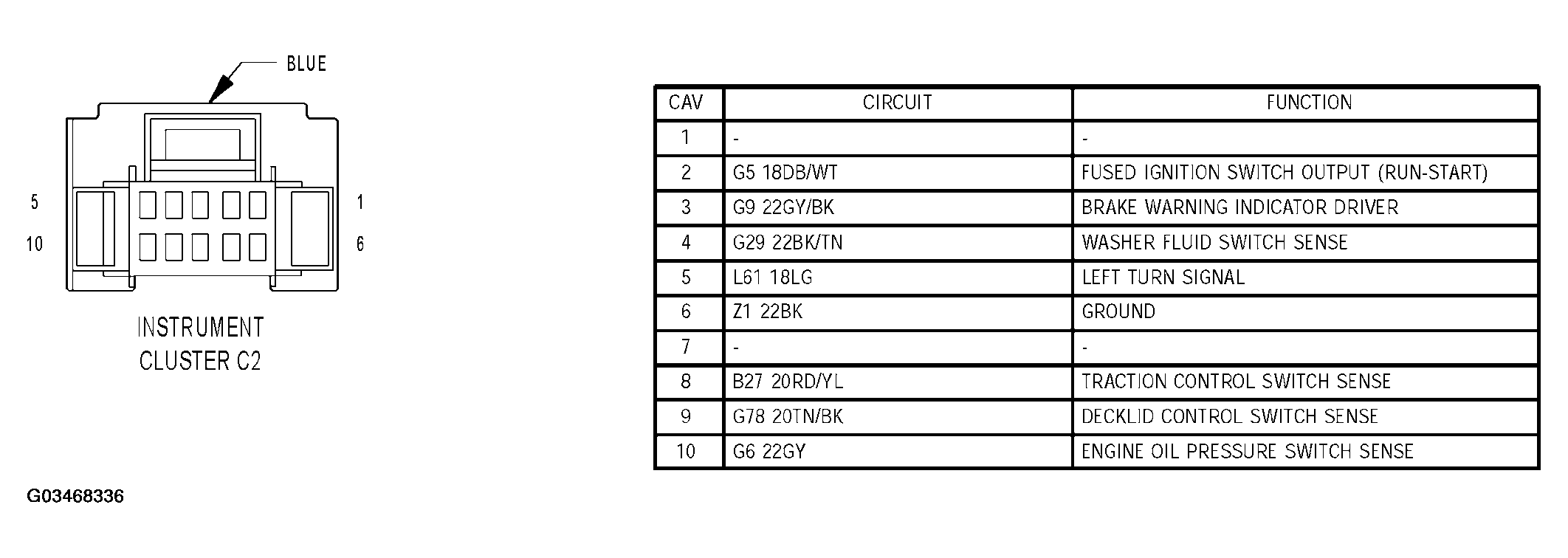

Fig 1: Instrument Cluster Connector End View (C2)

G03468336

Courtesy of DAIMLERCHRYSLER CORP.
