Driver Power Seat Front Riser Motor Connector End View

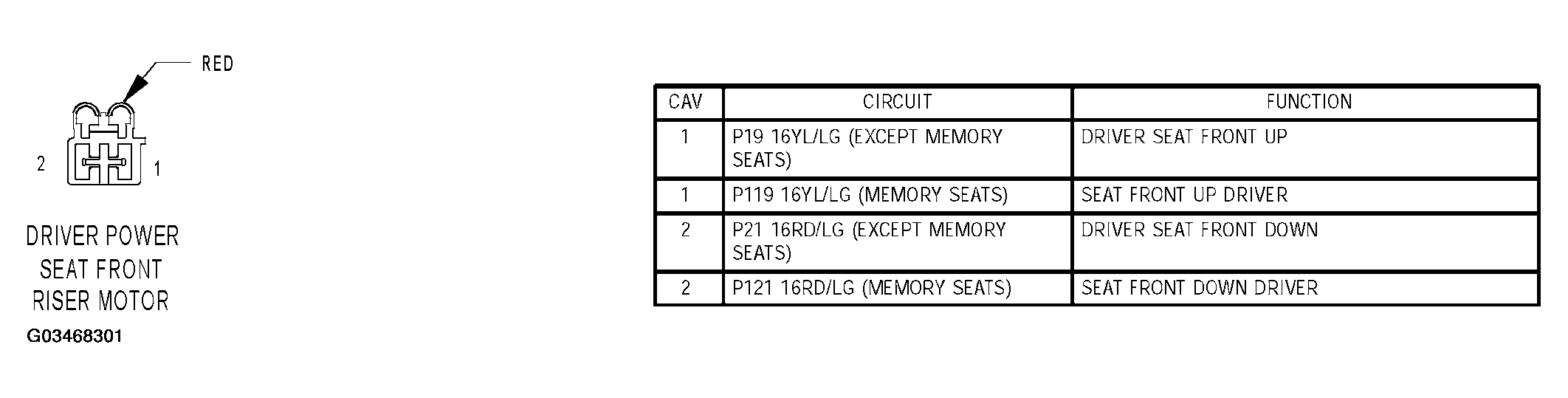

Fig 1: Driver Power Seat Front Riser Motor Connector End View

G03468301

Courtesy of DAIMLERCHRYSLER CORP.
