Chassis Diagnostic Procedures - Anti-Lock Brake System
>>
Verification Test
Verification Test

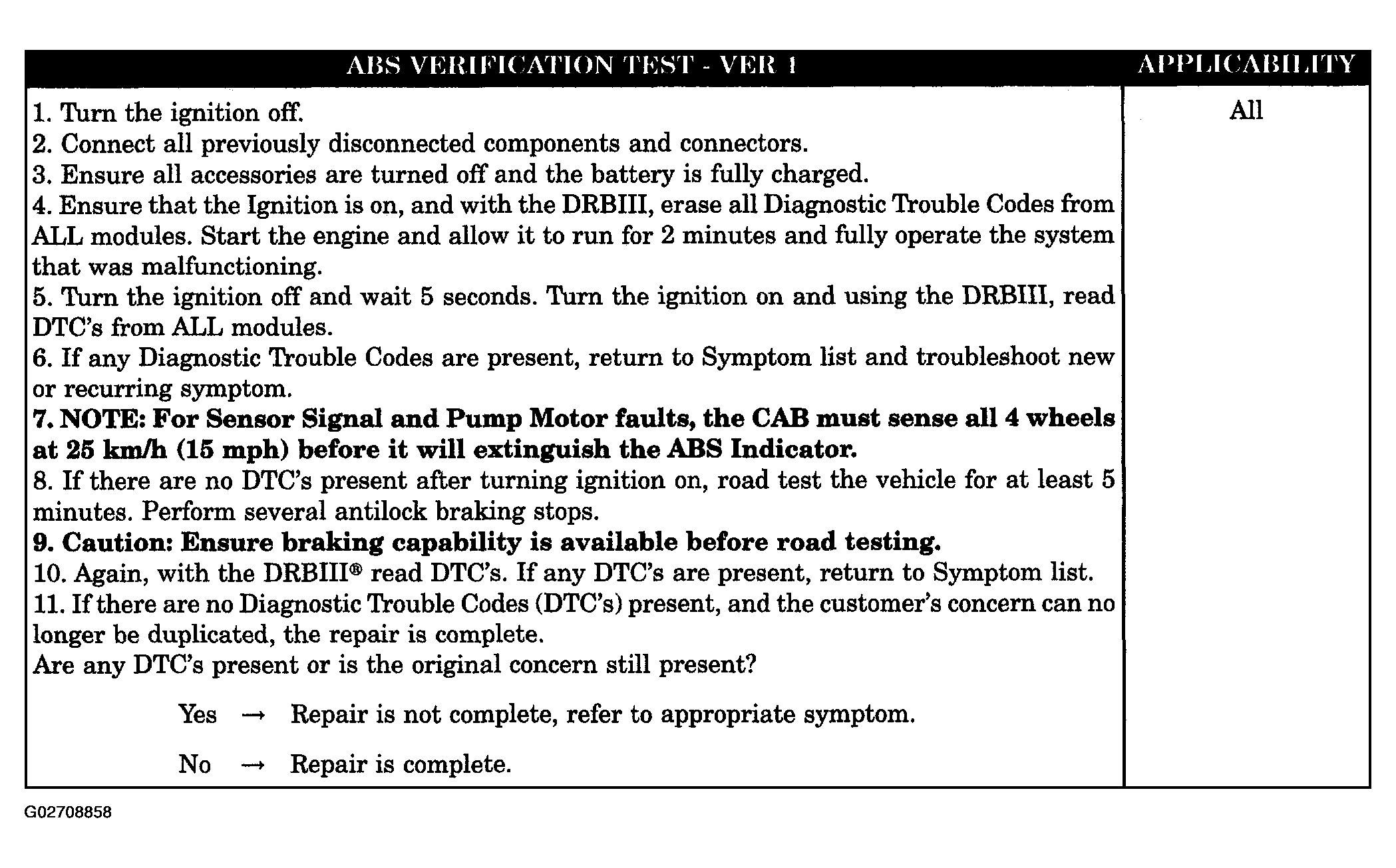

Fig 1: ABS Verification Test - VER 1
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
