Connector PINOUTS

Fig 1: Identifying Brake Lamp Switch Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

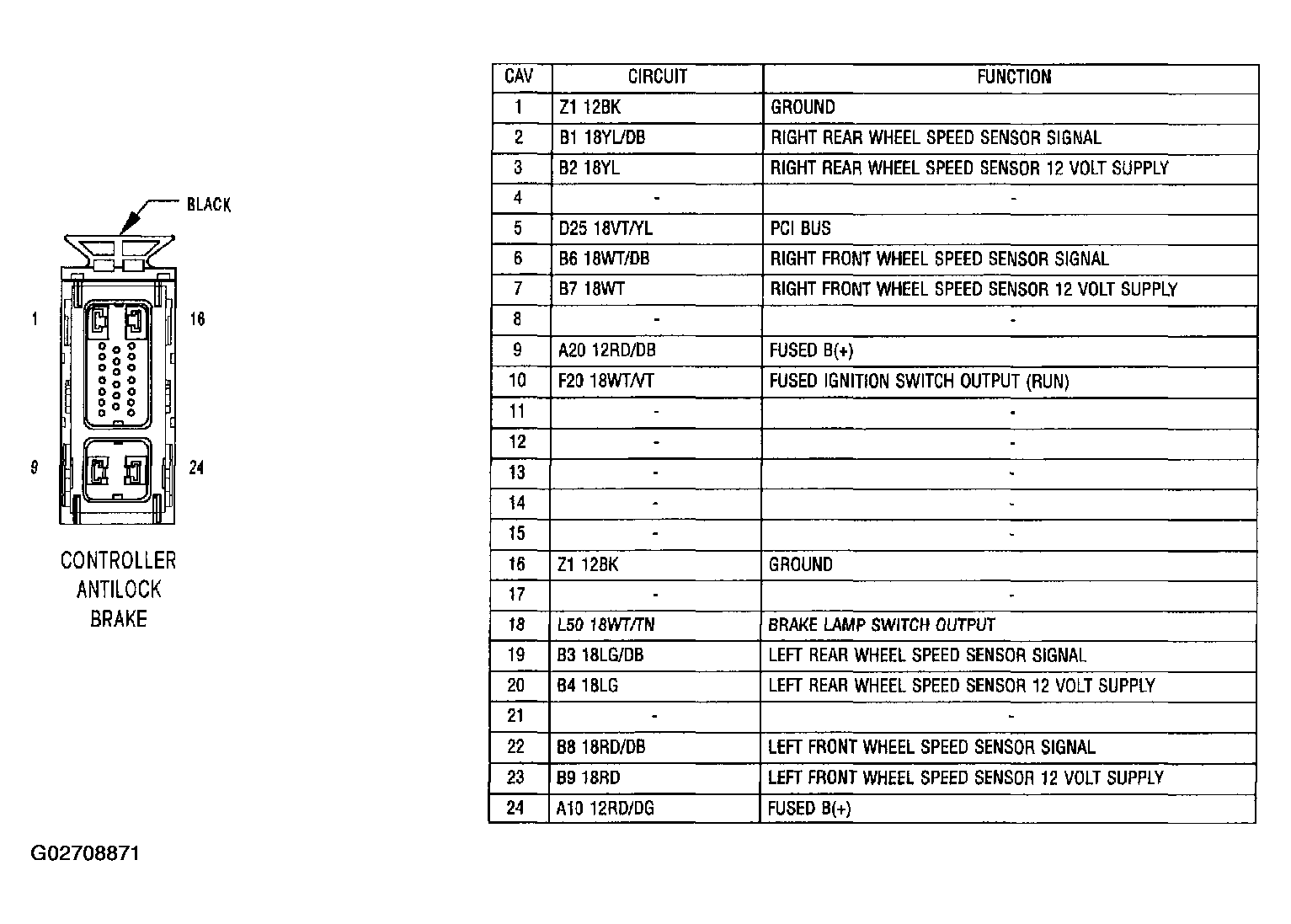

Fig 2: Identifying Controller Antilock Brake Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

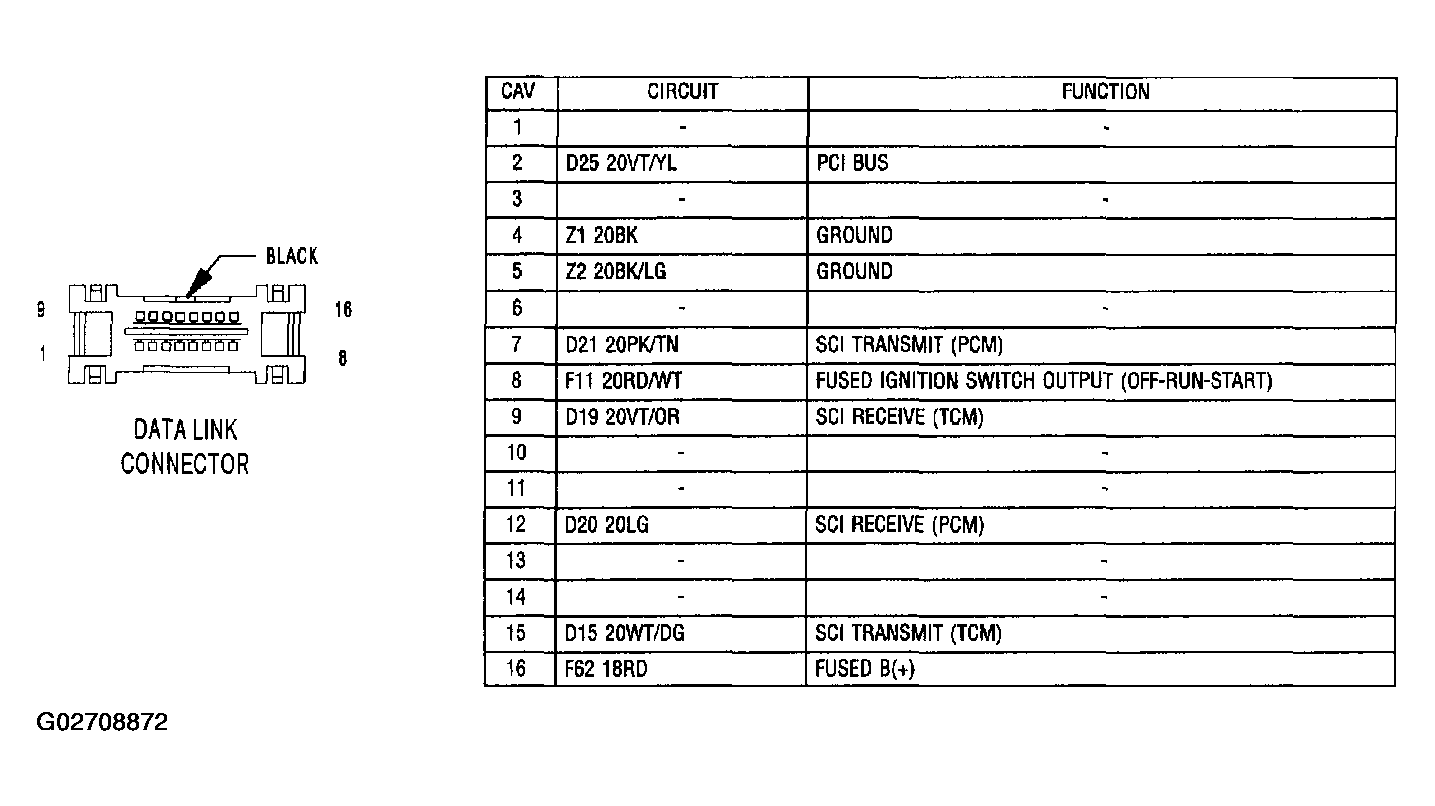

Fig 3: Identifying Data Link Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Left Front Wheel Speed Sensor Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

LEFT FRONT WHEEL SPEED SENSOR CONNECTOR PINOUTS FUNCTION

CAV	CIRCUIT	FUNCTION
1	B918RD	LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2	B9 18RD/DB	LEFT FRONT WHEEL SPEED SENSOR SIGNAL

Fig 5: Identifying Left Rear Wheel Speed Sensor Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

LEFT REAR WHEEL SPEED SENSOR CONNECTOR PINOUTS FUNCTION

CAV	CIRCUIT	FUNCTION
1	B4 18LG	LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2	B3 18LG/DB	LEFT REAR WHEEL SPEED SENSOR SIGNAL

Fig 6: Identifying Pump Motor Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

PUMP MOTOR CONNECTOR PINOUTS FUNCTION

CAV	CIRCUIT	FUNCTION
1	TN	GROUND
2	RD	PUMP/MOTOR RELAY OUTPUT

Fig 7: Identifying Right Front Wheel Speed Sensor Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

RIGHT FRONT WHEEL SPEED SENSOR CONNECTOR PINOUTS FUNCTION

CAV	CIRCUIT	FUNCTION
1	B7 18WT	RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2	B6 18WT/DB	RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

Fig 8: Identifying Right Rear Wheel Speed Sensor Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

RIGHT REAR WHEEL SPEED SENSOR CONNECTOR PINOUTS FUNCTION

CAV	CIRCUIT	FUNCTION
1	B2 18YL	RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2	B1 18YL7DB	RIGHT REAR WHEEL SPEED SENSOR SIGNAL

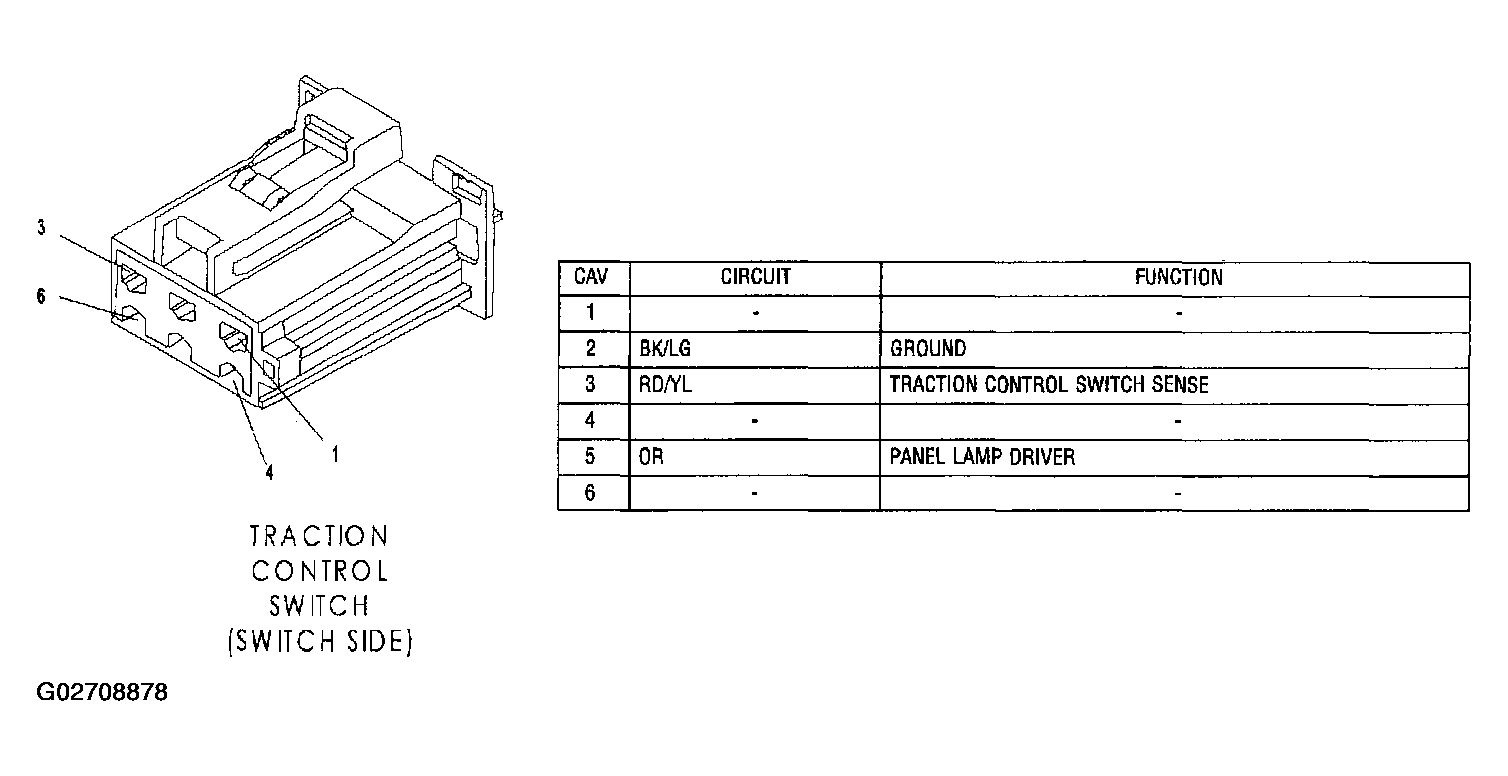

Fig 9: Identifying Traction Control Switch (Switch Side) Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

TRACTION CONTROL SWITCH (SWITCH SIDE) CONNECTOR PINOUTS FUNCTION

CAV	CIRCUIT	FUNCTION
1	-	-
2	BK/LG	GROUND
3	RD/YL	TRACTION CONTROL SWITCH SENSE
4	-	-
5	OR	PANEL LAMP DRIVER
6	-	-

Fig 10: Identifying Traction Control Switch Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

TRACTION CONTROL SWITCH CONNECTOR PINOUTS FUNCTION

CAV	CIRCUIT	FUNCTION
1	-	-
2	Z2 22BK/LG	GROUND
3	B27 20RD/YL	TRACTION CONTROL SWITCH SENSE
4	-	-
5	E2 20OR	PANEL LAMPS DRIVER
6	-	-
