Driver Heated Seat Switch: Removal

  1. Disconnect and isolate the negative battery cable remote terminal from the remote battery post.
  2. Remove the appropriate seat cushion side shield (Fig 1 ).

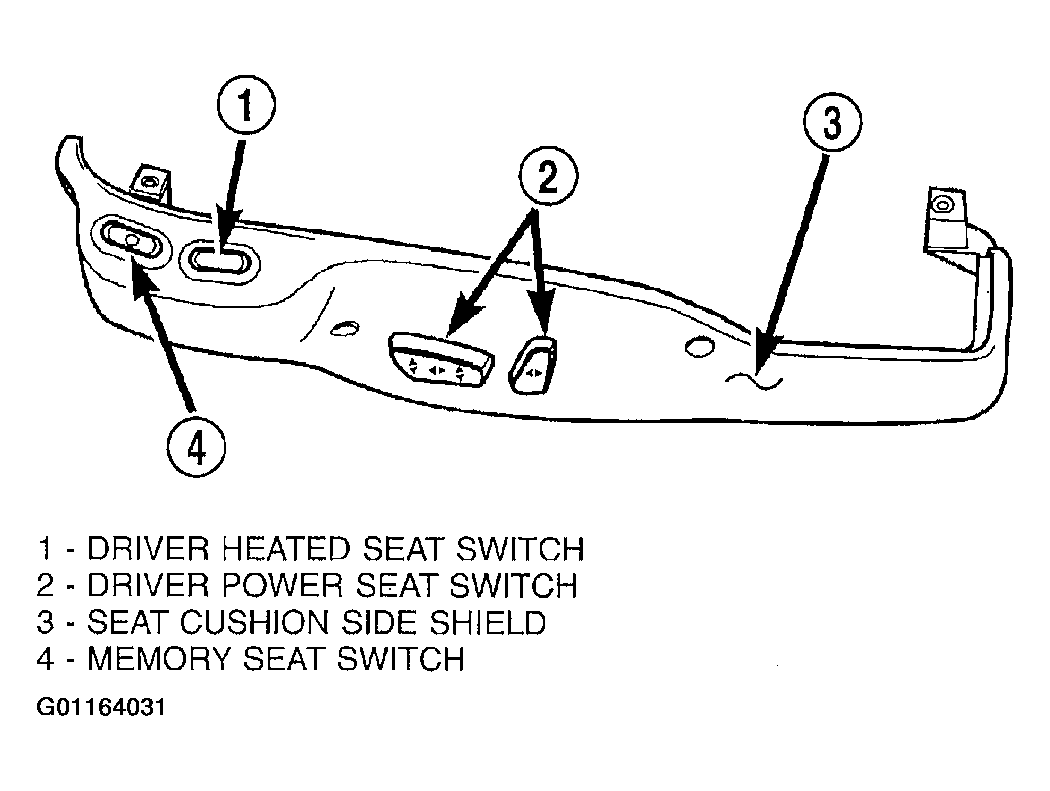

    Fig 1: Identifying Heated, Memory And Power Seat Switch Locations - (Driver Heated Seat Switch)
    G01164031Courtesy of DAIMLERCHRYSLER CORP.
  3. Working from the underside of the switch, gently rock the switch back and forth out of its mounting location.
  4. Disconnect the heated seat switch electrical connector and remove the switch.
