Driver Power Seat Switch: Removal

  1. Open hood, disconnect and isolate the negative battery cable remote terminal from the remote battery post.
    WARNING: SOME VEHICLES ARE EQUIPPED WITH SEATBACK MOUNTED AIRBAGS. BEFORE ATTEMPTING TO DIAGNOSE OR SERVICE ANY SEAT OR POWER SEAT SYSTEM COMPONENT YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  2. Remove seat cushion side shield (Fig 1 ).
    Fig 1: Identifying Power Seat Switch And Seat Side Shield (Driver Seat)
    G01164054Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect wiring from switch.
  4. Remove knobs from the switch (Fig 2 ).
  5. Remove switch attaching screws.
  6. Remove switch from cushion side shield.

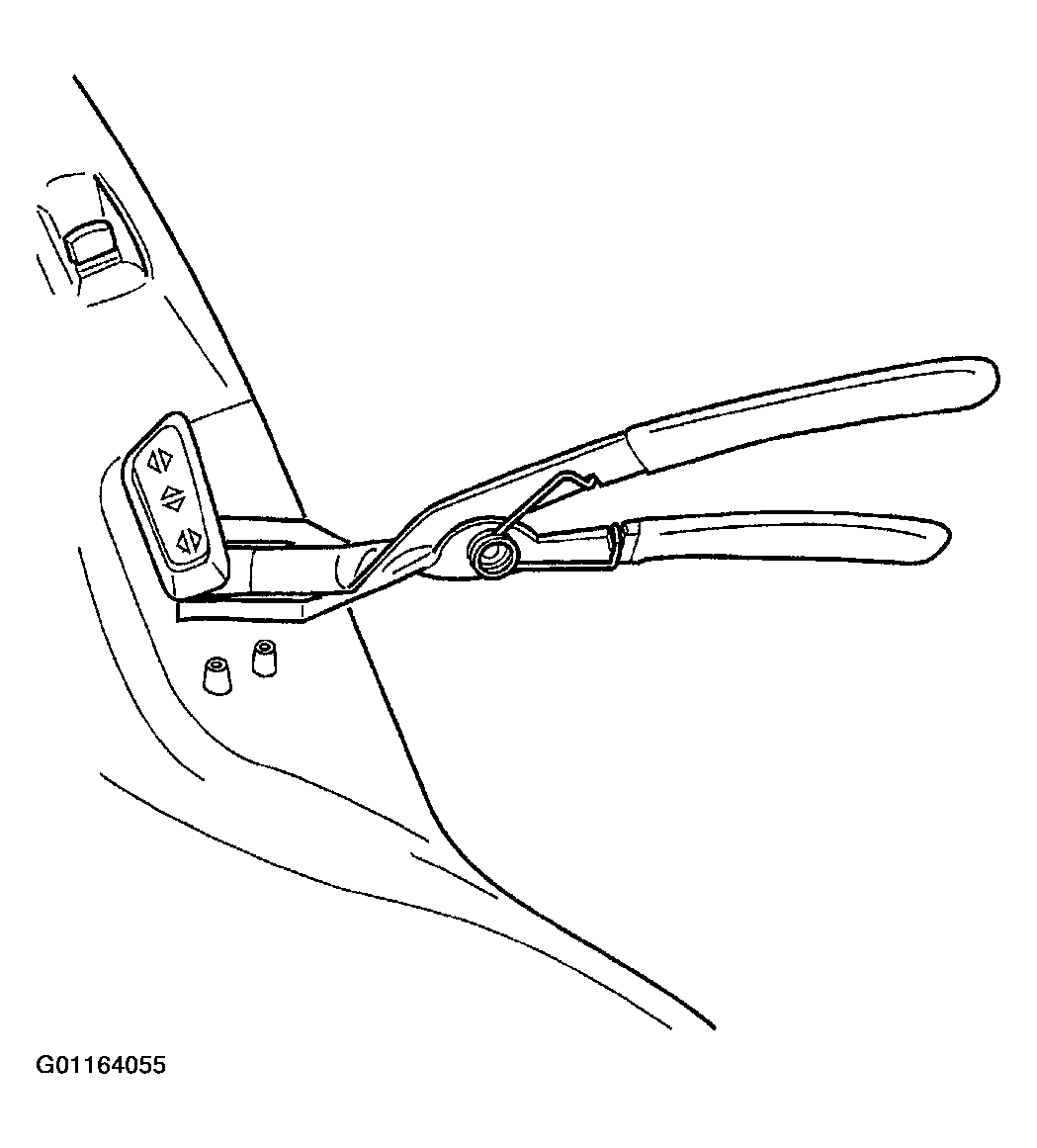

    Fig 2: Removing Switch Control Knobs - Typical (Driver Seat)
    G01164055Courtesy of DAIMLERCHRYSLER CORP.
