Window Regulator: Removal

  1. Remove flag cover, door trim panel, water shield as necessary, and pull cup support bracket. (Refer to REMOVAL  )
  2. Slide glass from regulator roller channel (Fig 1 ).
  3. Disconnect power window motor wire connector.
  4. Loosen screw attaching regulator scissor channel to door panel.
  5. Remove screw and bolt heads from keyhole slots in door panel.
  6. Loosen bolt attaching regulator support brace to door panel.
  7. Loosen bolts attaching regulator to door panel.
  8. Remove regulator from door panel.
  9. Slide regulator rearward and rotate forward end of roller channel through access hole in door panel.

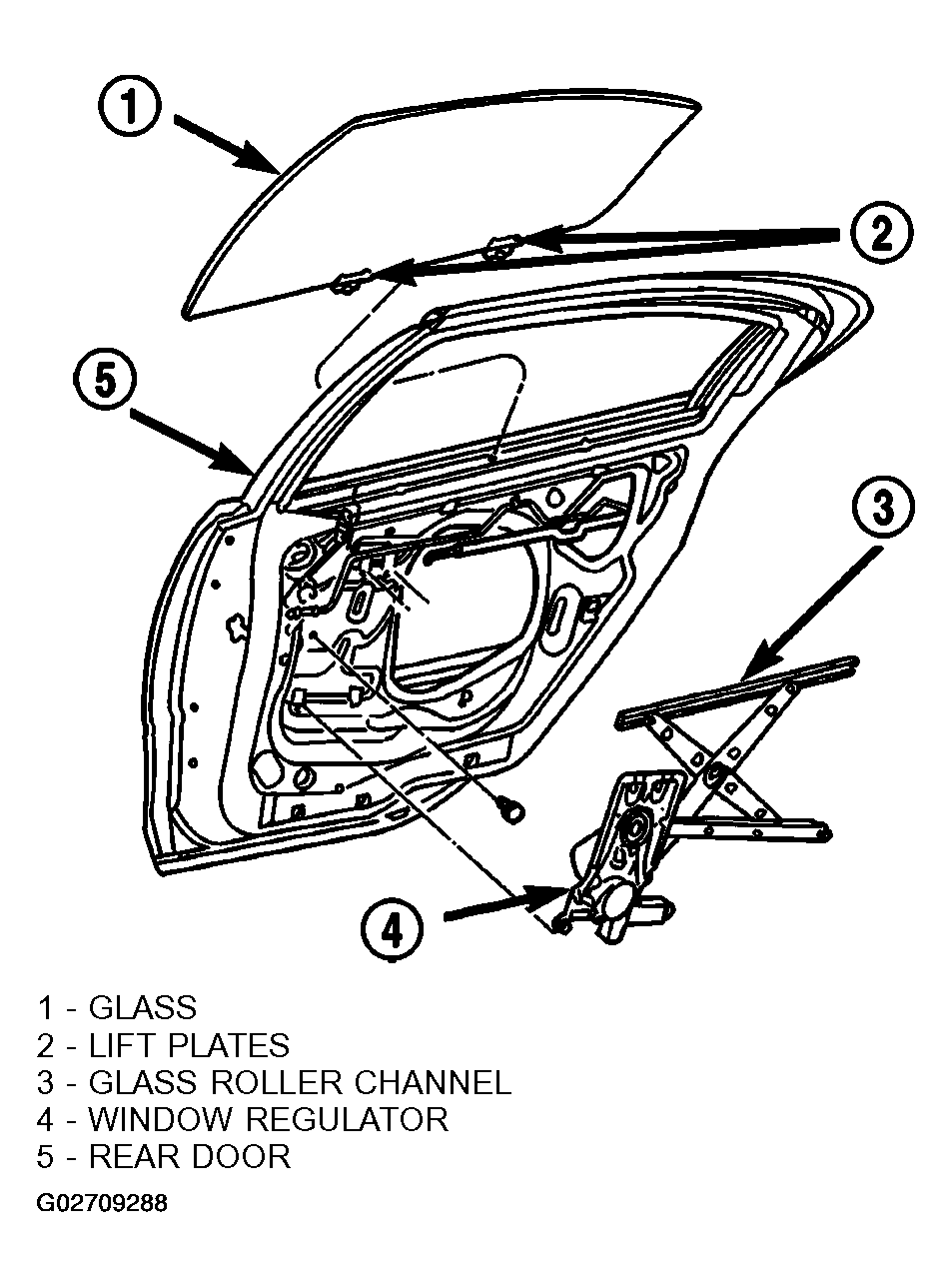

    Fig 1: Removing Rear Door Window Regulator
    G02709288Courtesy of DAIMLERCHRYSLER CORP.
