Specifications - Structural Adhesive Locations

STRUCTURAL ADHESIVE INDEX

DESCRIPTION	FIGURE
HOOD - CONCORDE AND 300M	23
HOOD - INTREPID	24
FRONT FENDER	25
ROOF	26
SUNROOF	27
DOORS	28
DECKLID	29

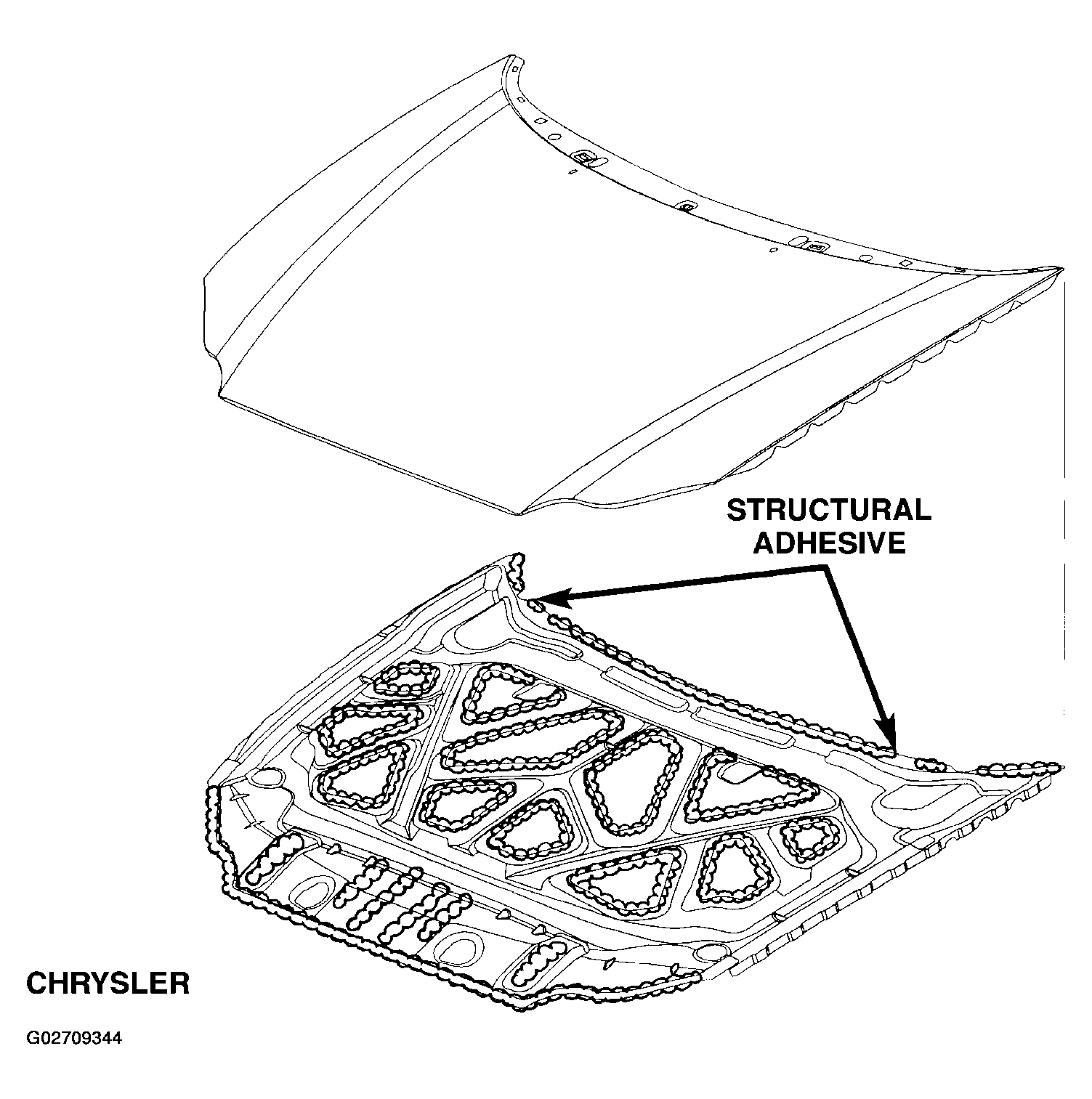

Fig 1: Identifying Hood (Concorde And 300M) - Structural Adhesive Location

Courtesy of DAIMLERCHRYSLER CORP.

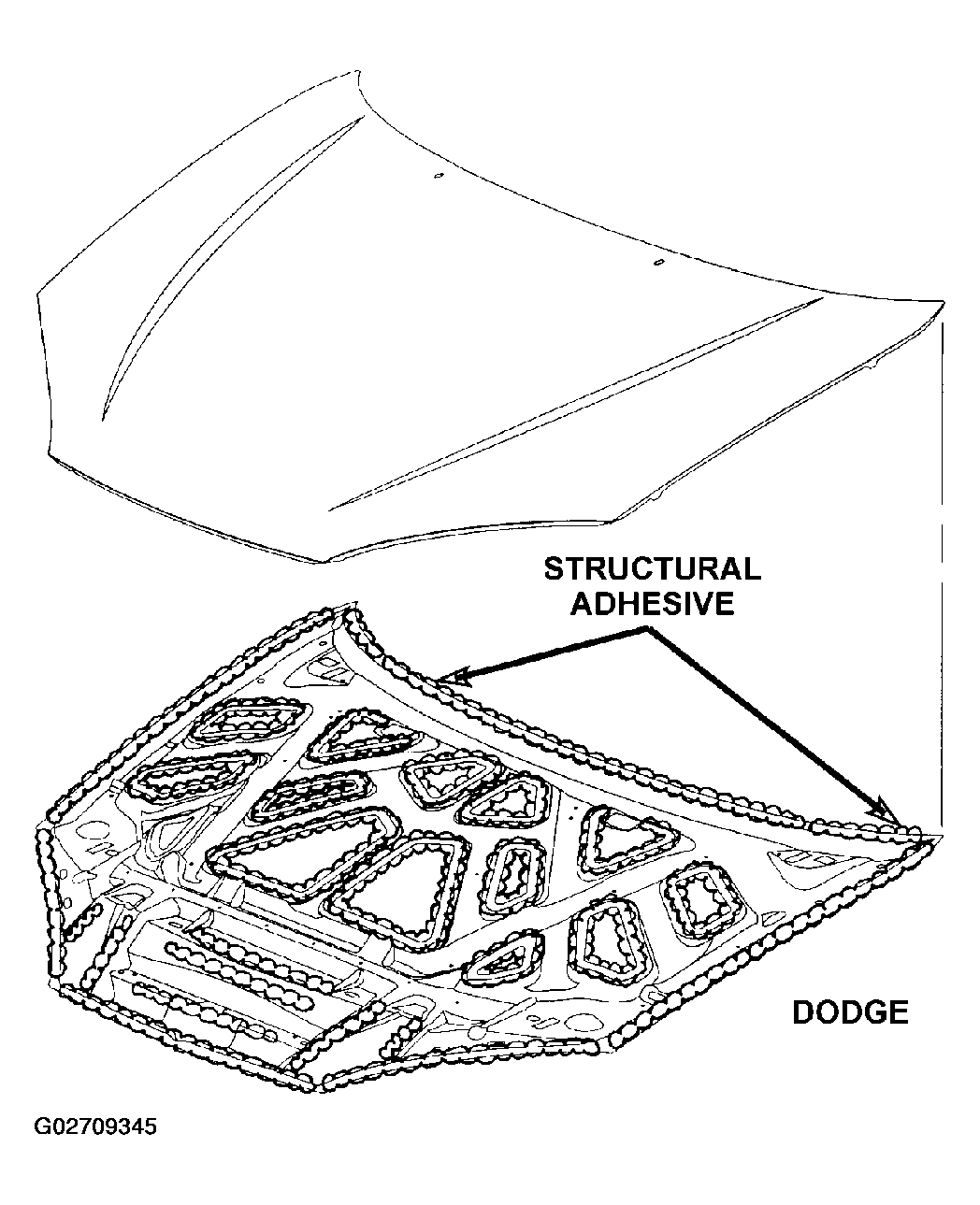

Fig 2: Hood (Intrepid) - Structural Adhesive Location

Courtesy of DAIMLERCHRYSLER CORP.

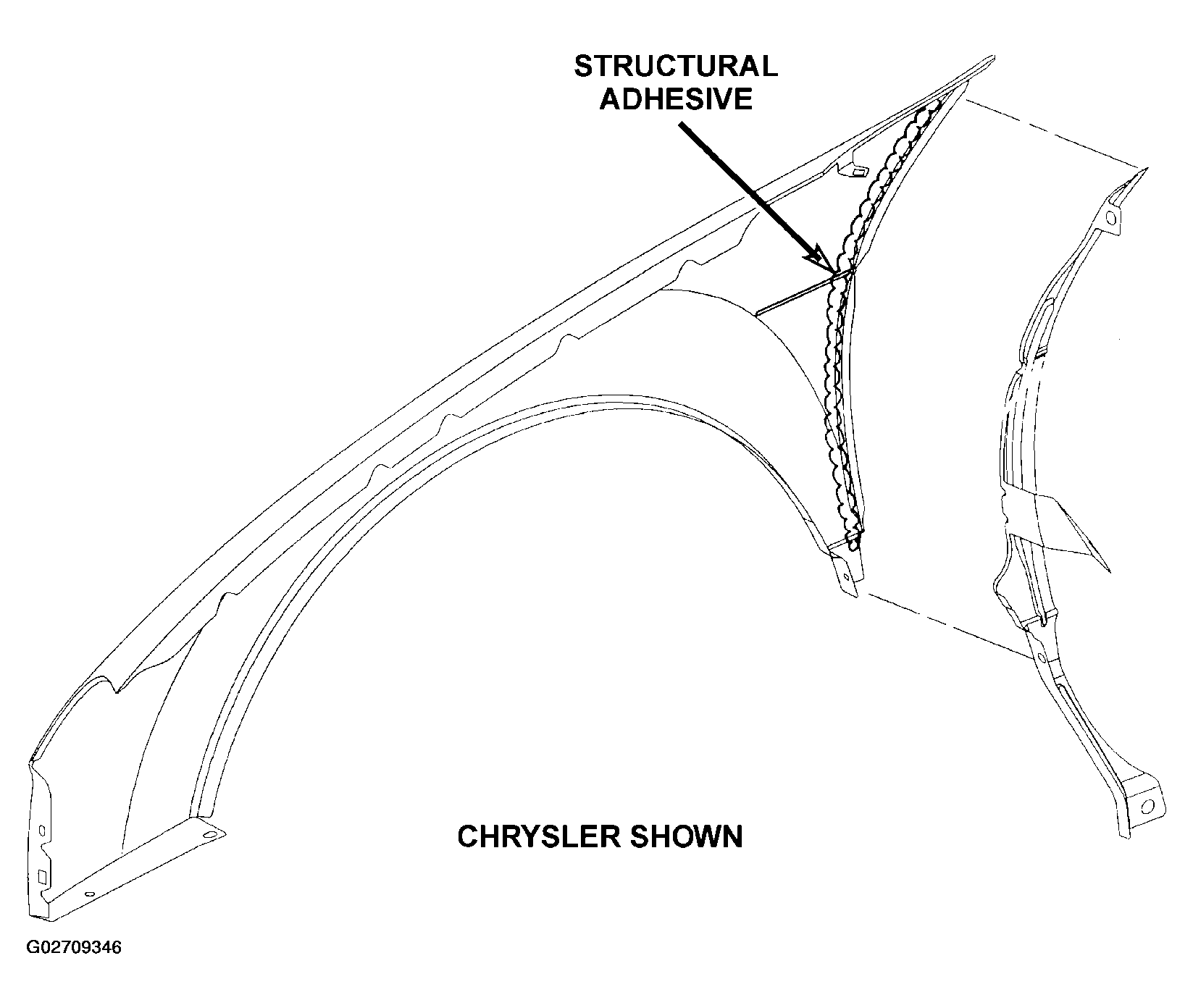

Fig 3: Identifying Front Fender - Structural Adhesive Location

Courtesy of DAIMLERCHRYSLER CORP.

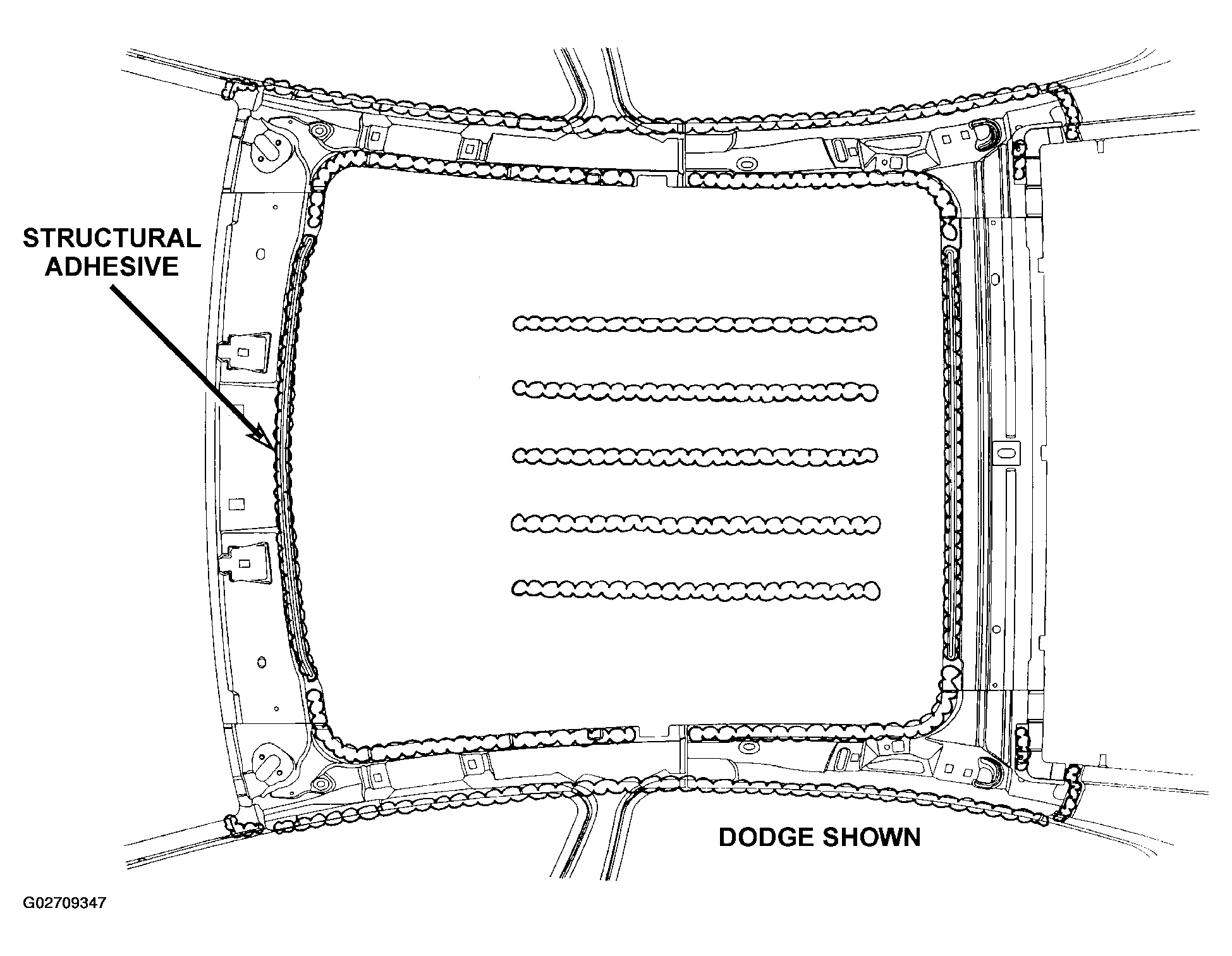

Fig 4: Identifying Roof - Structural Adhesive Location

Courtesy of DAIMLERCHRYSLER CORP.

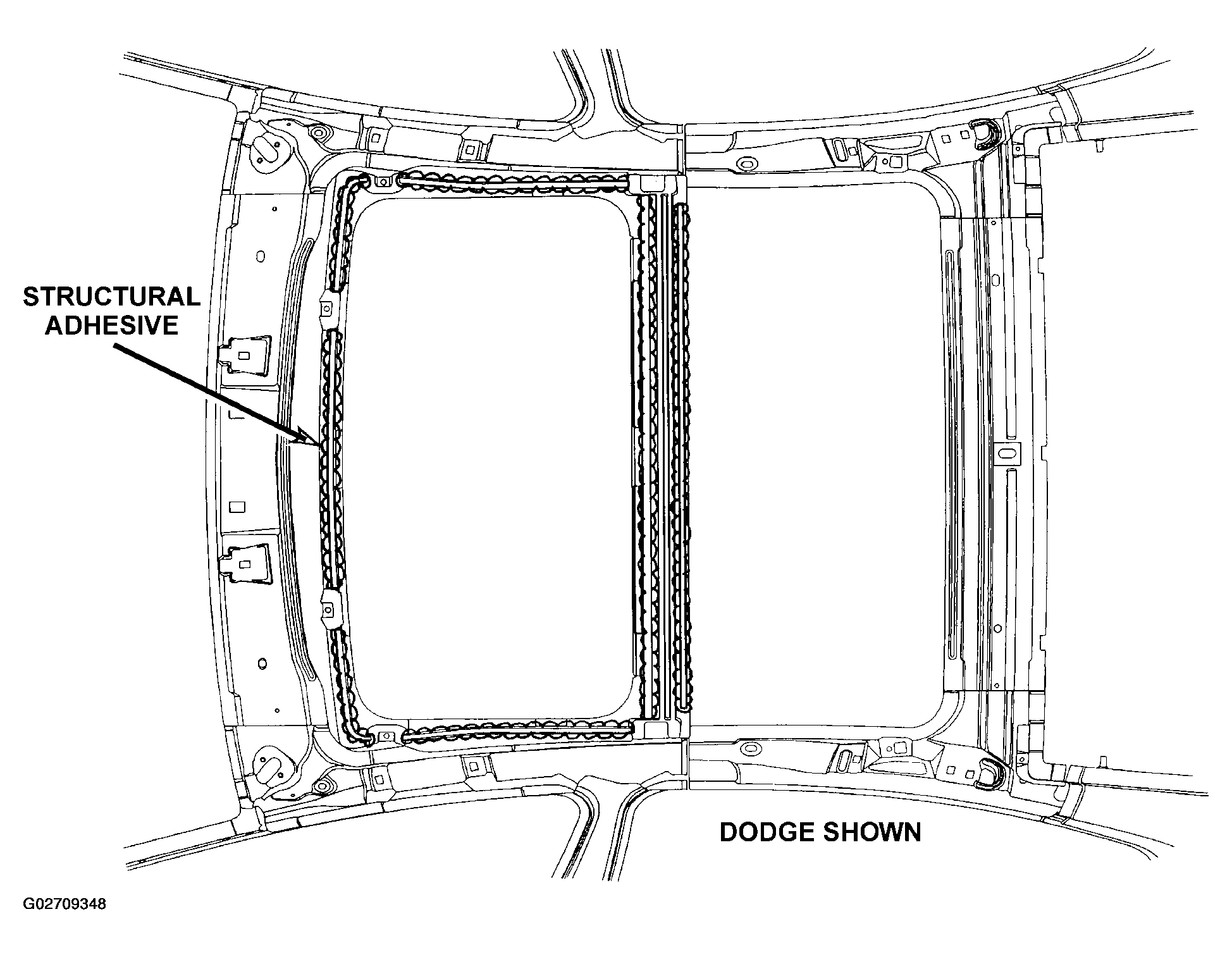

Fig 5: Identifying Sunroof - Structural Adhesive Location

Courtesy of DAIMLERCHRYSLER CORP.

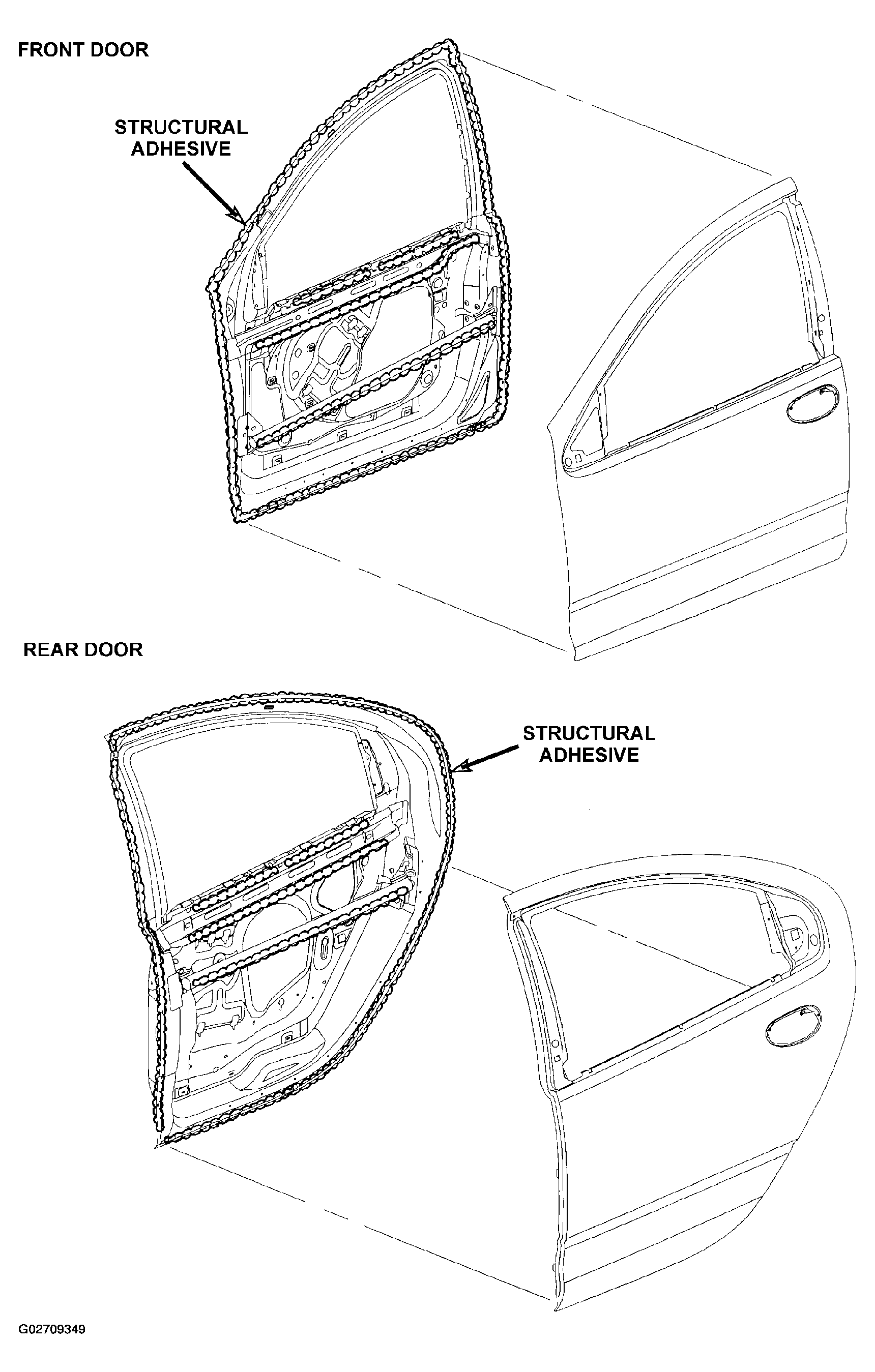

Fig 6: Identifying Doors - Structural Adhesive Location

Courtesy of DAIMLERCHRYSLER CORP.

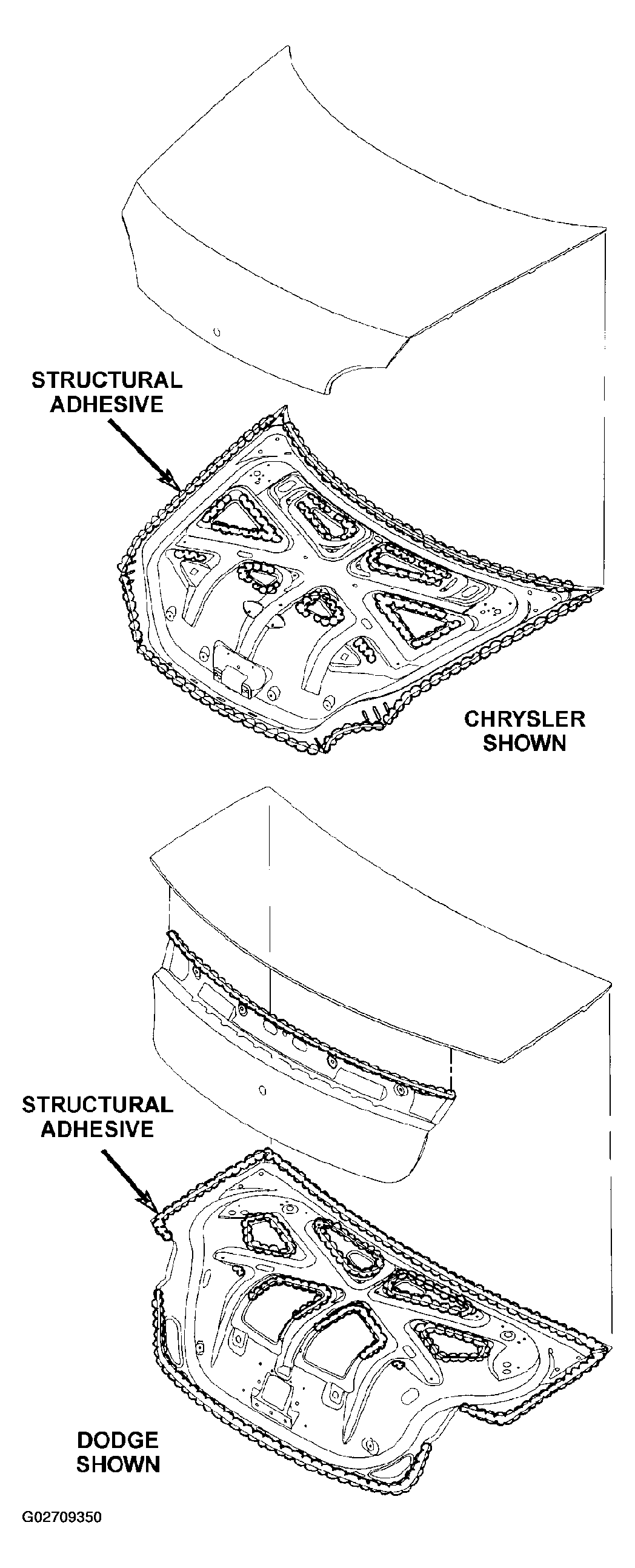

Fig 7: Identifying Decklid - Structural Adhesive Location

Courtesy of DAIMLERCHRYSLER CORP.
