Satellite Receiver Module (Premium) Connector End View (C1)

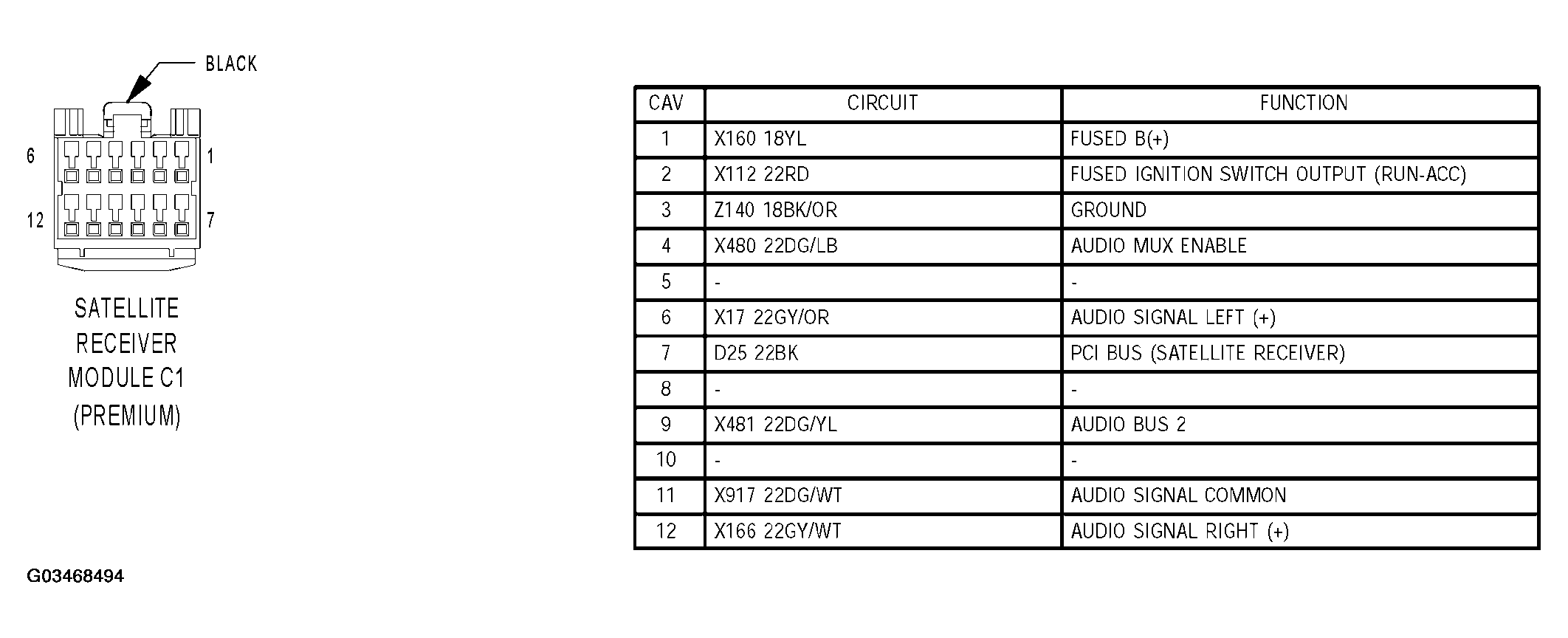

Fig 1: Satellite Receiver Module (Premium) Connector End View (C1)

G03468494

Courtesy of DAIMLERCHRYSLER CORP.
