ORC Airbag Control Module Connector End View

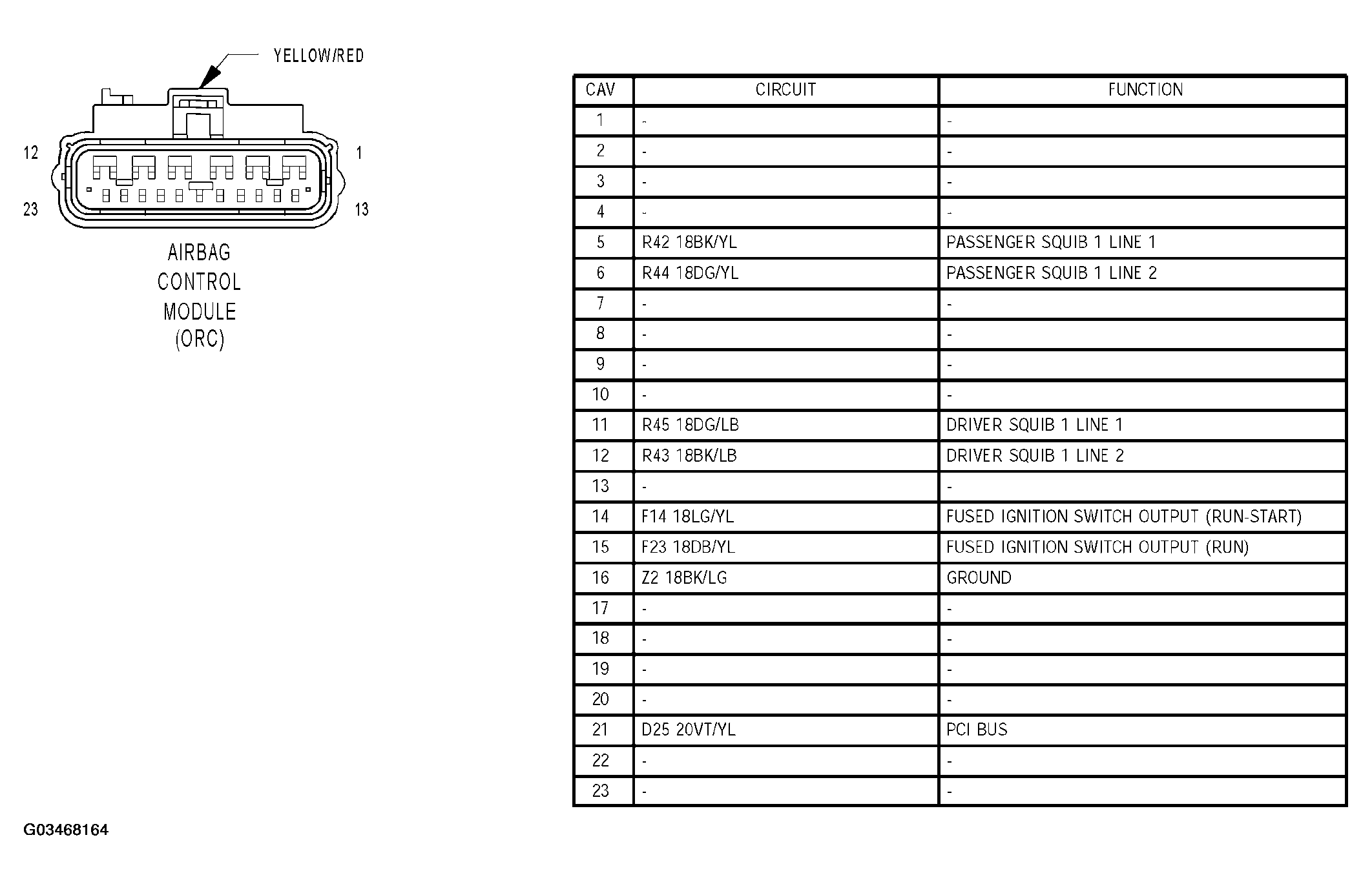

Fig 1: ORC Airbag Control Module Connector End View

G03468164

Courtesy of DAIMLERCHRYSLER CORP.
