Memory Heated Seat/Mirror Module Connector End View (C4)

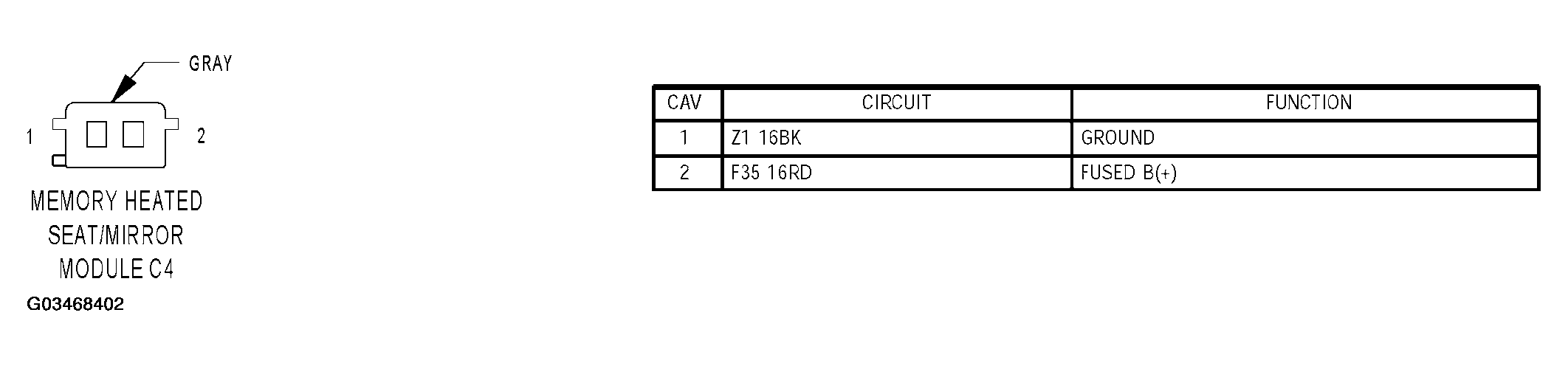

Fig 1: Memory Heated Seat/Mirror Module Connector End View (C4)

G03468402

Courtesy of DAIMLERCHRYSLER CORP.
