Memory Heated Seat/Mirror Module Connector End View (C3)

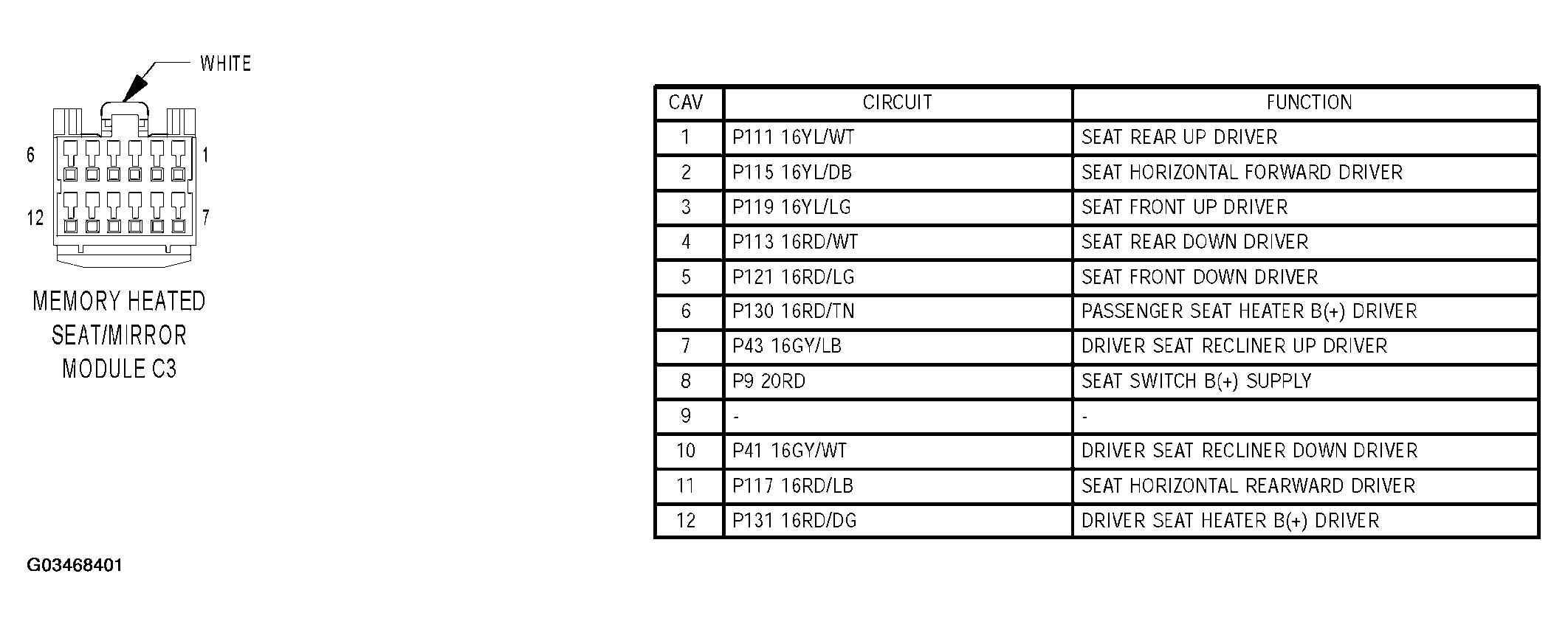

Fig 1: Memory Heated Seat/Mirror Module Connector End View (C3)

G03468401

Courtesy of DAIMLERCHRYSLER CORP.
