Standard Procedure - Engine Oil Level Check

The best time to check engine oil level is after it has sat overnight, or if the engine has been running, allow the engine to be shut off for at least 5 minutes before checking oil level.

Checking the oil while the vehicle is on level ground will improve the accuracy of the oil level reading (Fig 1). Add only when the level is at or below the ADD mark.

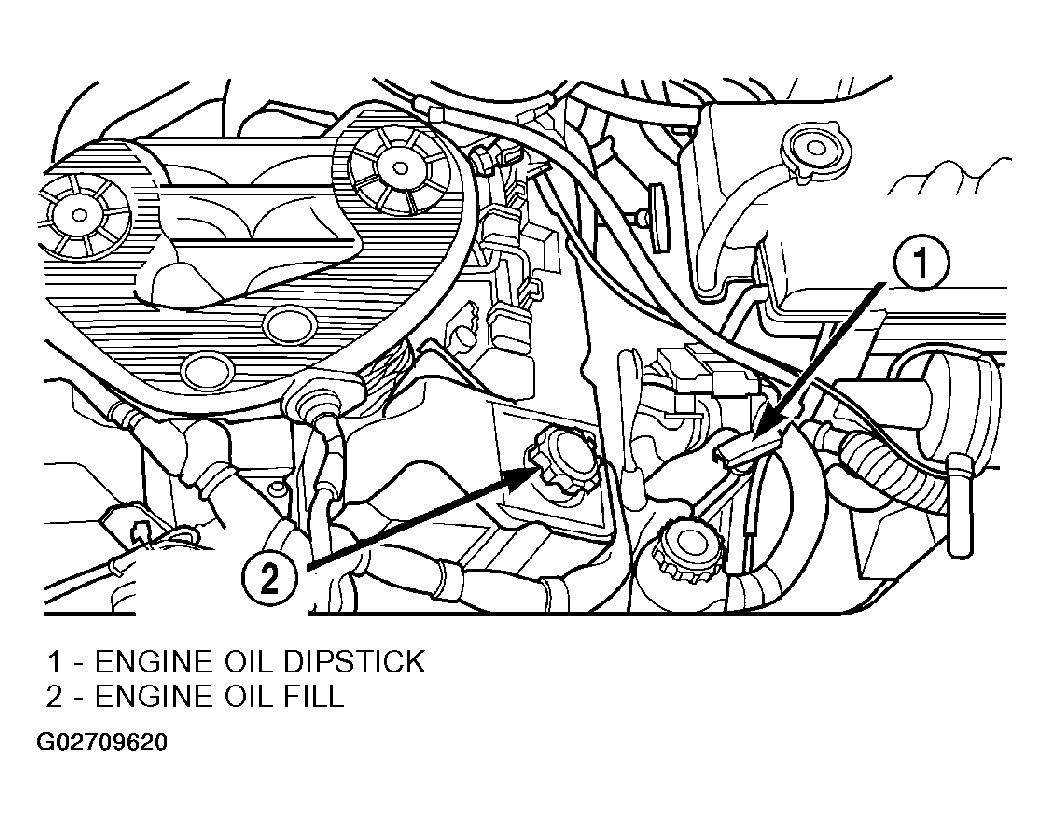

Fig 1: Identifying Engine Oil Fill And Dipstick

Courtesy of DAIMLERCHRYSLER CORP.
